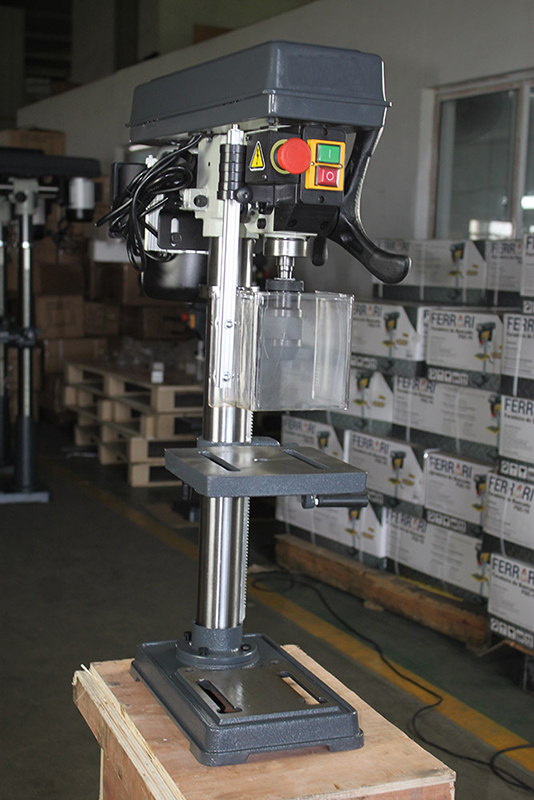

BM 16 VARIO - 230 V

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW

The solid drilling machine featuring vario drive is characterized by high torque even at low speed. Most commonly this model is used by amateurs and for training purposes.

Contact us

TECHNICAL SPECIFICATIONS

Drilling capacity in steel

16 mm

Drill chuck

1 - 16 mm / B 18

Morse taper

MT 2

Spindle speed, stepless

400 - 1950 rpm

Distance spindle to column

160 mm

Table tiltable

-45° to +45°

Distance spindle to table max.

440 mm

Distance spindle to base

630 mm

Spindle stroke

80 mm

Column diameter

72 mm

Table size / T-slot size

285 x 285 mm / 16 mm

Working surface of base

200 x 190 mm

Motor power output S1 1 100%

0,55 kW / 230 V

Motor power input S6 40%

0,80 kW / 230 V

Machine dimension (W x D x H)

400 x 590 x 980 mm

Weight approx.

46 kg

FEATURES

  • Digital display allows easy readout of set speed or spindle stroke
  • Grey cast iron pulley ensures smooth operation
  • High-quality ball bearings guarantee high concentricity
  • Large drill table features diagonal T-slots
  • Drill table tilts (±45°) – gear rack allows height adjustment
  • Powerful, high performance aluminium motor in accordance with IP 54 standards
  • Precise keyless drill chuck comes as part of the standard accessories
  • Complete with T-slots in polished base plate
  • Ergonomically designed handles maximises work comfort



Standard accessories:

  • Keyless drill chuck 1 – 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • Digital readout of speed
  • Cross line laser device
  • T-slot nuts
  • Height adjustable protective cover
  • Separate emergency stop switch
  • Tools



Optional accessories:

  • Drilling machine vice BM 150 (Art.Nr.:28-2001)
  • Drilling machine vice BMH 150 (Art.Nr.:28-2012)
  • Deluxe clamping kit set 58 pcs., 16 mm, M 14 (Art.Nr.:28-1002)
  • 25 pcs. set TiN-coated HSS drills, 1 - 13 mm (Art.Nr.:41-1010)
  • 170 pcs. set TiN-coated HSS drills (Art.Nr.:41-1025)
