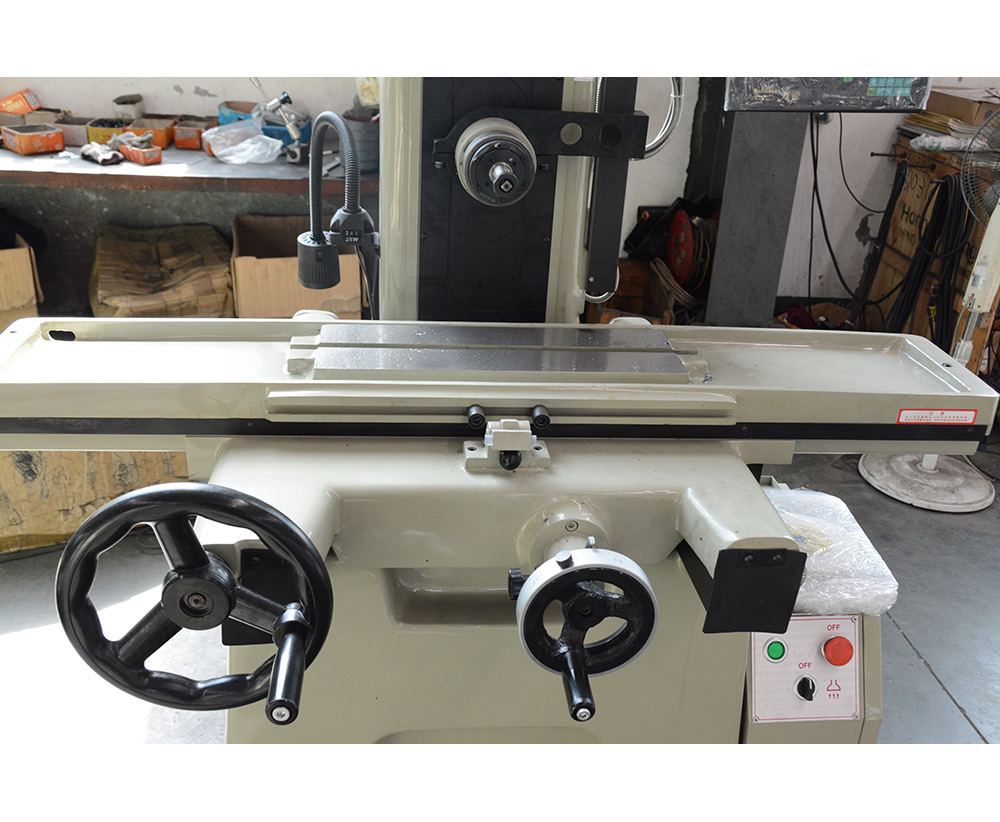

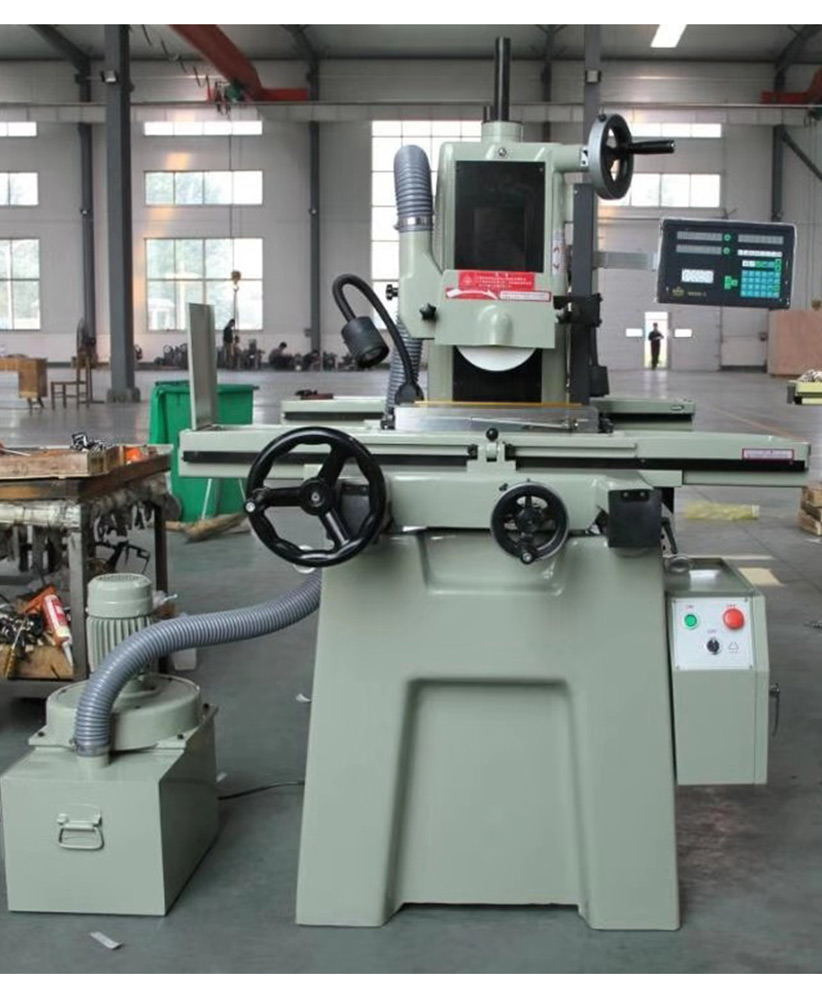

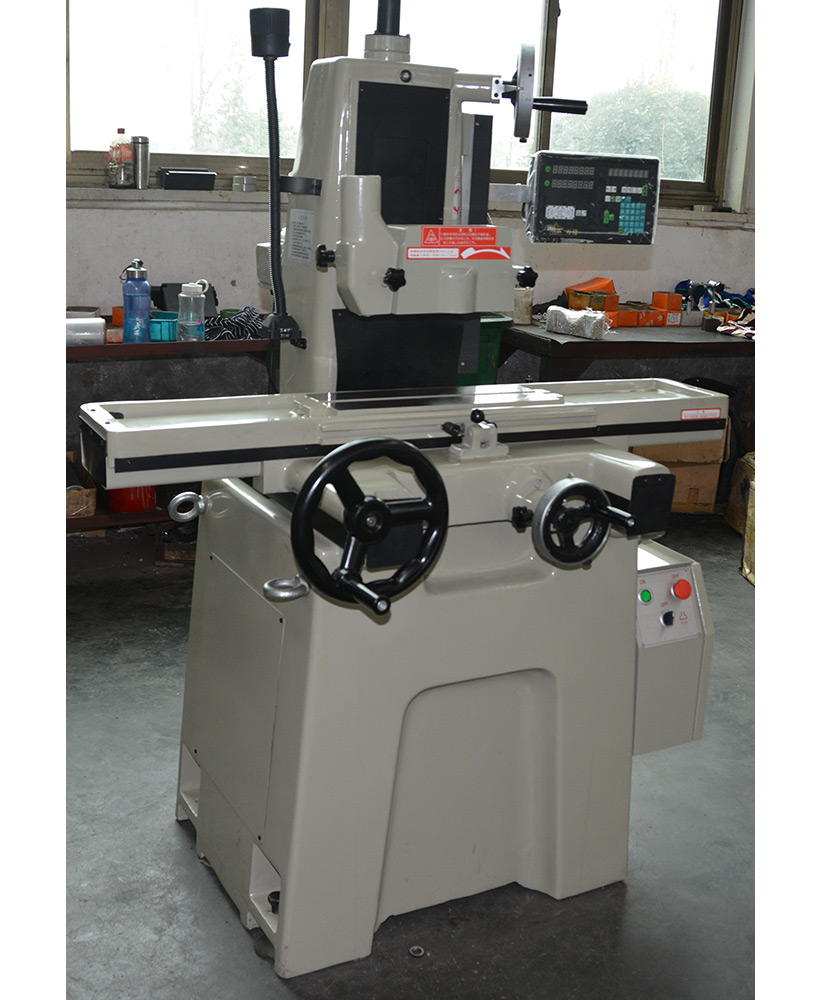

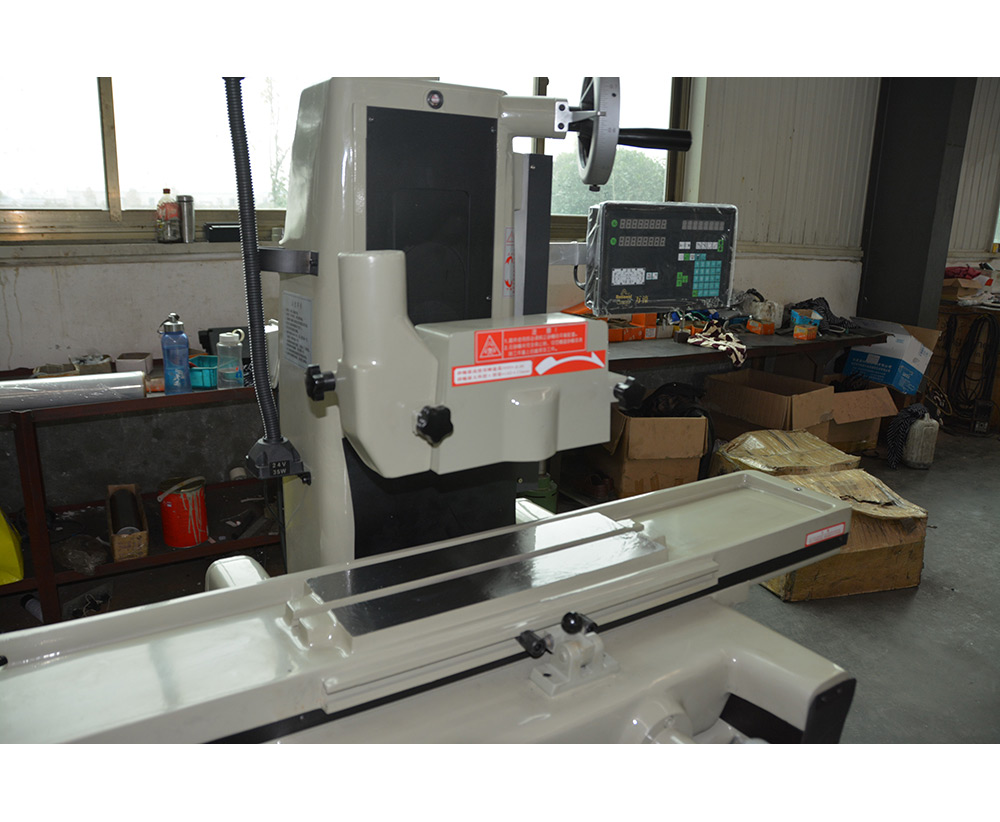

HY-618S Surface grinder
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
We are top-quality surface grinder manufacture in China. Our HY series surface grinders build by high-grade castings and components .They Providing our grinder have top-quality with longevity and durability ,Accuracy & performance.the accuracy and performance of our surface grinders as well as the quality of the finished product. The result is you get an accurate, smoother surface finish.The accuracy can meet to 0.002-0.003mm, roughness Ra0.2 microns. Our surface grinders quality is better then Taiwan grinder.But we have more competitive price then Taiwan factory price. MODEL HY-618S FEATURES & CAPABILITY Longitudinal on Turcite-B coated and scrapped guideways Downfeed on hardened and ground slideway Crossfeed on Turcite-B coated and scrapped slideway Spindle motor frequency inverter *Optional Overhead manual wheel dresser *Optional Variable spindle speed *Optional Surface grinding *Manual Plunge grinding *Manual Single slot grinding (between shoulders) *Manual Profile wheel dressing *Manual (Optional)
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
We are top-quality surface grinder manufacture in China. Our HY series surface grinders build by high-grade castings and components .They Providing our grinder have top-quality with longevity and durability ,Accuracy & performance.the accuracy and performance of our surface grinders as well as the quality of the finished product. The result is you get an accurate, smoother surface finish.The accuracy can meet to 0.002-0.003mm, roughness Ra0.2 microns. Our surface grinders quality is better then Taiwan grinder.But we have more competitive price then Taiwan factory price. MODEL HY-618S FEATURES & CAPABILITY Longitudinal on Turcite-B coated and scrapped guideways Downfeed on hardened and ground slideway Crossfeed on Turcite-B coated and scrapped slideway Spindle motor frequency inverter *Optional Overhead manual wheel dresser *Optional Variable spindle speed *Optional Surface grinding *Manual Plunge grinding *Manual Single slot grinding (between shoulders) *Manual Profile wheel dressing *Manual (Optional)
Contact us
| MODEL HY618S MAIN SPECIFICATIONS | |||
| Specification | HY-614S | HY-618S | |
| Capacity | Overall table working area | 150x350mm(6 x 14”) | 150x450mm (6 x 18”) |
| Longitudinal table travel | 370mm (14.7”) | 470mm (18.7”) | |
| Crossfeed table travel | 160mm (6.3”) | 160mm (6.3”) | |
| Distance spindle center to table | 400mm (15”) | 400mm (15”) | |
| Grinding Wheel | Wheel dimension (Dia. x W x Bore) | 180x16x32mm | 180x16x32mm |
| Spindle speed | (7 x 0.8 x 1.27”) | (7 x 0.8 x 1.27”) | |
| 3600rpm | 3600rpm | ||
| Vertical Movement | Vertical on MPG / Handwheel 1 gra | 0.005mm (0.0002”) | 0.005mm (0.0002”) |
| Vertical on MPG / Handwheel 1 rev | 1mm (0.04”) | 1mm (0.04”) | |
| Motor | Spindle motor | 1.5HP | 1.5HP |
| Dimension & Weight | Machine height | 1875mm (73”) | 73 |
| Floor space | 1650x1995mm 65x79”) | 71 x 47 | |
| Net weight | 690kgs (1520lbs) | 850kgs (1870lbs) | |
| Gross weight | 850kgs (1870lbs) | 900kgs (1980lbs) |
