QUICK OVERVIEW

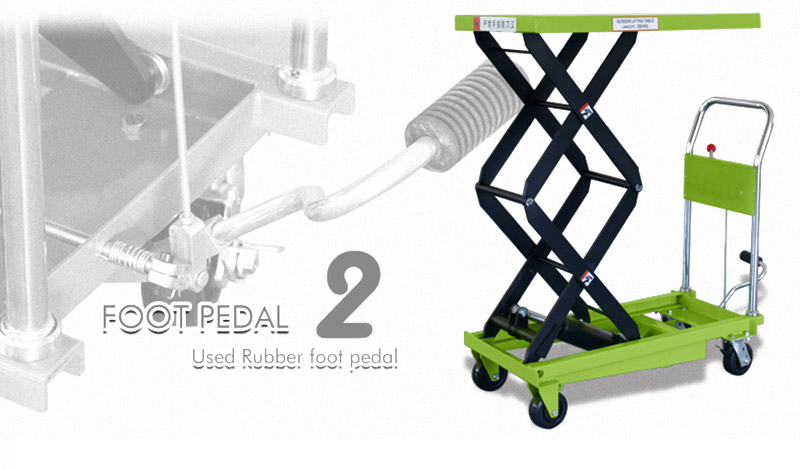

1.The assembly line can be used as an ideal material delivery platform; 2.Made of high strength material,strong and durable; 3.Pedal hydraulic lifting can make the table top to any desired height; 4.Overload valve can effectively protect the safety of person and materials.
Contact us

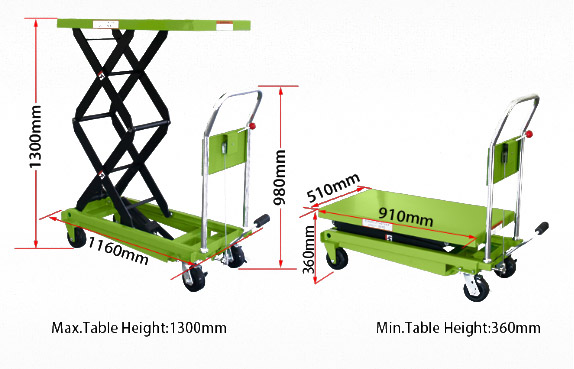

SPECIFICATION:
|
Model |
SYTJ 35S |
|
Capacity |
350kg |
|
Min.table height |
360mm |
|
Max.table lifting height |
1300 |
|
Table size |
910×510×50mm |
|
Wheel szie |
Φ125×50mm |
|
Handle height |
980mm |
|
Max. pump pressure |
≦74 |
|
Net weight |
100kg |
Packing data
(unit:1 wooden pallet=4 pieces double scissors lifting table):
|
Specifications(1 Wooden pallet) |
Weight(Kg) |
Volume(m3) |
20GP(piece) |
|
SYTJ-35S |
443 |
0.85 |
100 |
Special note:
1.Regular packing is 6 pieces for one pallet.
2.SYTJ-35S SYTJ-100 SYTJ-100S are belong to large size models,packing is 4 pieces for one pallet.
