CC-6
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

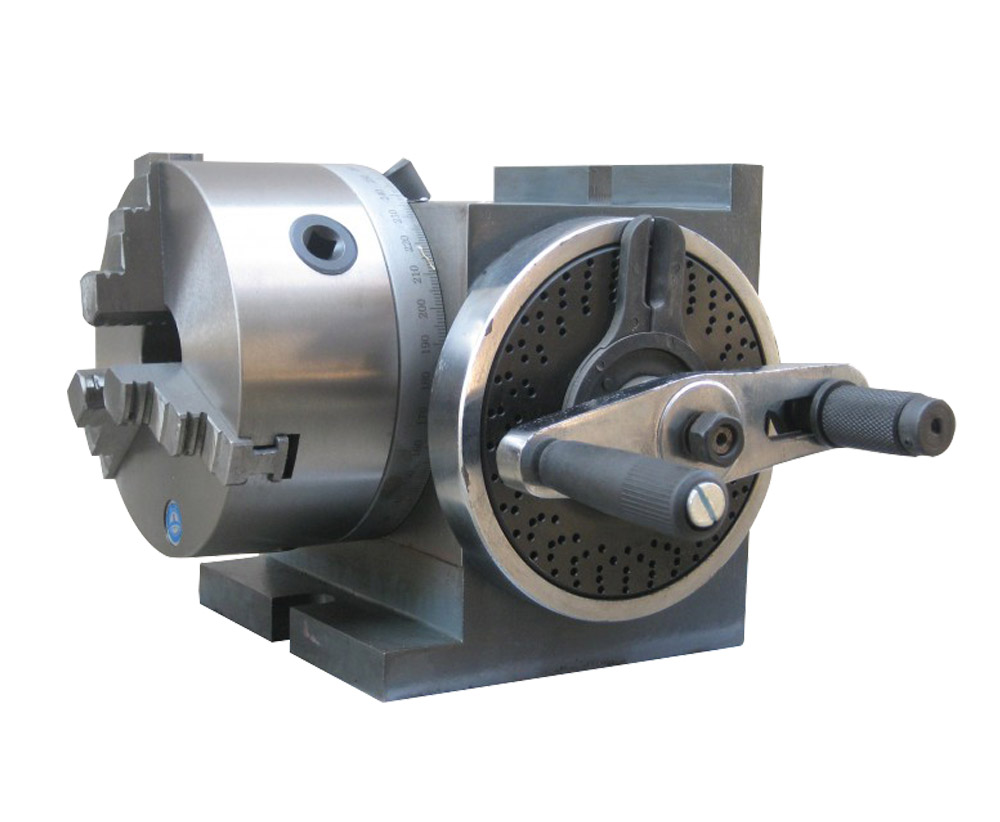

◆Solid Meehanite casting,specially designed for milling,drilling and boring. ◆Hardened and ground 24 position master plate. ◆Precision ground steel spindle. ◆Heavy duty shoe type spindle brake ensuring maxmum rigidity for milling cuts.360°graduation ring. ◆Chrome plated graduated ring with five minute vernier reading. ◆The center through hole is big to be suitable for the large and long workpiece. ◆Used the key guide block,the center can be corrected both quickly and accurately. ◆Horizontal and vertical mounting positions.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
◆Solid Meehanite casting,specially designed for milling,drilling and boring. ◆Hardened and ground 24 position master plate. ◆Precision ground steel spindle. ◆Heavy duty shoe type spindle brake ensuring maxmum rigidity for milling cuts.360°graduation ring. ◆Chrome plated graduated ring with five minute vernier reading. ◆The center through hole is big to be suitable for the large and long workpiece. ◆Used the key guide block,the center can be corrected both quickly and accurately. ◆Horizontal and vertical mounting positions.
Contact us

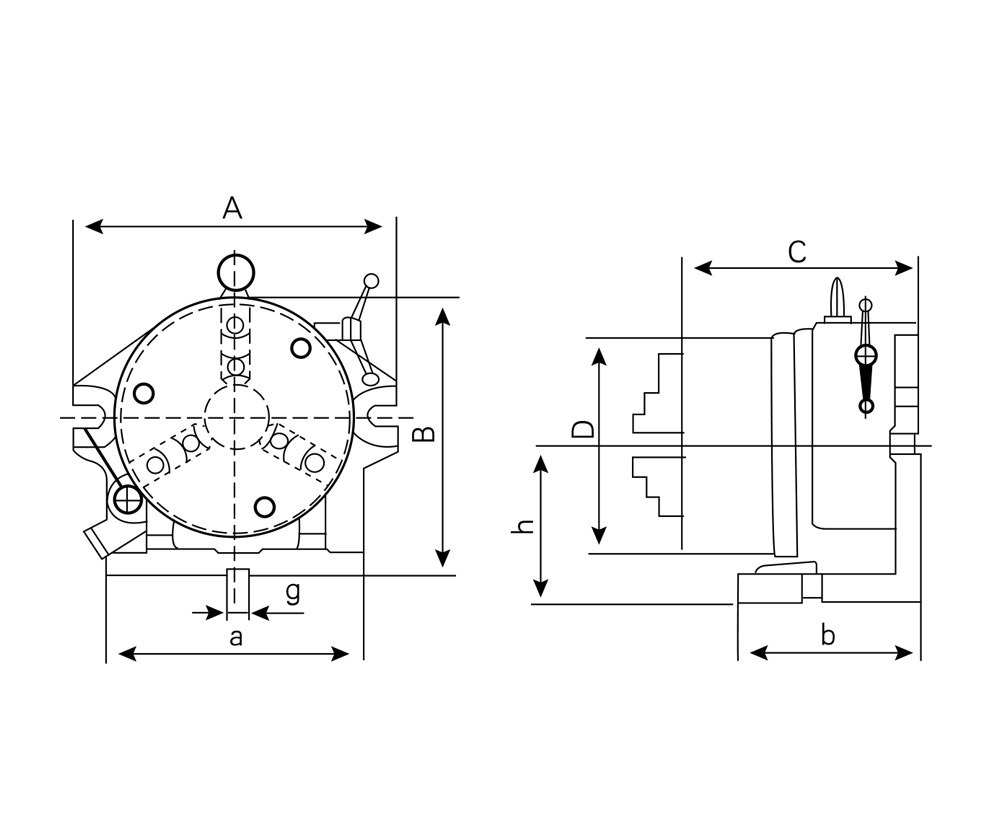

| MODEL NO. | Chuck | Face Plate | A | B | C | D | a | b | h | Gross | ||||
| Outer | ThruHoie | Inner | Outer |
Guide Block |
Turret Hole Dla |
Weight | ||||||||
| Dia. | Dia. | Jaw | Jaw | kgs/ibs | ||||||||||
| CS-6 | 160 | 40 | 3～55 | 55～145 | 16 | 50 | 255 | 255 | 152 | 160 | 190 | 115 | 130 | 32 |
| 6.3 | 1.57 | 0.12～2.17 | 2.17～5.71 | 0.63 | 1.97 | 10.04 | 8.86 | 5.98 | 6.3 | 7.48 | 4.53 | 5.12 | 70 | |
| CS-8 | 200 | 65 | 4～85 | 65～200 | 16 | 63 | 320 | 272 | 174 | 200 | 230 | 154 | 154 | 52 |
| 7.87 | 2.56 | 0.16～3.35 | 2.55～7.87 | 0.63 | 2.48 | 12.6 | 10.71 | 6.85 | 7.87 | 9.06 | 6.06 | 6.06 | 114 | |
