CS-6
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

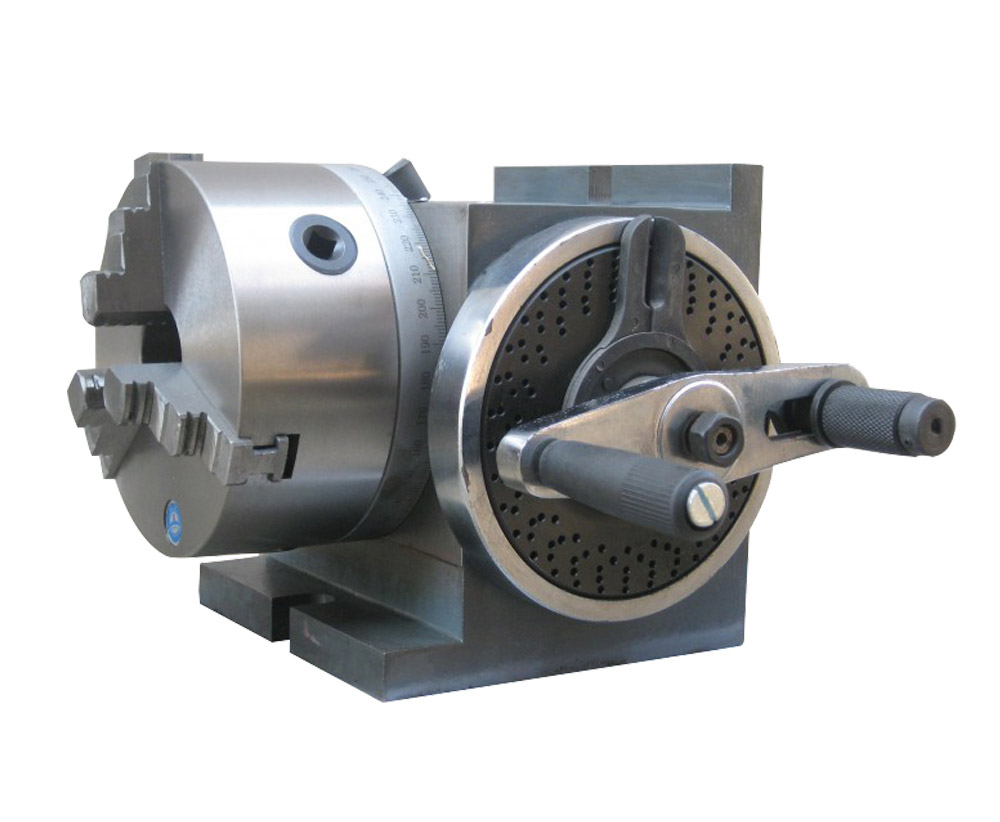

HORIZONTAL/VERTICAL SUPER INDEXING SPACERS Model No. CS-6 FEATURES ◆Solid Meehanite casting.specially designed fotmiling. drolling and boring. ◆Hardened and ground 24 position measter plate. ◆Hardened and ground worm gear. ◆Precision ground steel spindle. ◆Heavy duty shoe type soindle brake ensuring maximum righdity formilling cuts. ◆360°Graduated ring. ◆Chrome plated graduated ring with five minute vernier reading. ◆The center through hole isbig to be suitable for the largeand long workpiece. ◆Used the key guide block.the center can be corrected boyth quickly and accurately. ◆Eccentric worm housing for spindledisengagerment. ◆When the chuck is removed the unit can be used as a horizontal and vertical type rotary table. ◆The operating handle torotary table worm gear reduction ratio is 1:90 ◆Horizontal and vertioal mounting positions.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
HORIZONTAL/VERTICAL SUPER INDEXING SPACERS Model No. CS-6 FEATURES ◆Solid Meehanite casting.specially designed fotmiling. drolling and boring. ◆Hardened and ground 24 position measter plate. ◆Hardened and ground worm gear. ◆Precision ground steel spindle. ◆Heavy duty shoe type soindle brake ensuring maximum righdity formilling cuts. ◆360°Graduated ring. ◆Chrome plated graduated ring with five minute vernier reading. ◆The center through hole isbig to be suitable for the largeand long workpiece. ◆Used the key guide block.the center can be corrected boyth quickly and accurately. ◆Eccentric worm housing for spindledisengagerment. ◆When the chuck is removed the unit can be used as a horizontal and vertical type rotary table. ◆The operating handle torotary table worm gear reduction ratio is 1:90 ◆Horizontal and vertioal mounting positions.
Contact us
| Standard Accessories |
| ◆3-jaw chuck |
| ◆Six mesking plates(2.3.4.6.8&12 position) |
| ◆T-slotted face plate(8″or10″) |
| ACCURACY for CS-6.8 CS-6.8 | TOLERANCE(Max.) |
| Parallelisom of table surface to baset | .0006″.015m/m |
| Axial movement of table suiface | .0006″.015m/m |
| True running of center boss | .0004″.01m/m |
| Squarenese of base to angle face per12″ | .0008″.02m/m |
| Positionong sccuracy | 45 sec. |
| SPECIFICATIONS | Unit:inches/mm | |||||
| MODEL NO. | Chuck | Face Plate | ||||
| Outer | ThruHoie | Inner | Outer | Outer Dia. | Thickness | |
| Dia. | Dia. | Jaw | Jaw | |||
| CS-6 | 160 | 40 | 3～55 | 55～145 | 205 | 40 |
| 6.3 | 1.57 | 0.12～2.17 | 2.17～5.71 | 8.07 | 1.57 | |
| CS-8 | 200 | 65 | 4～85 | 65～200 | 254 | 42 |
| 7.87 | 2.56 | 0.16～3.35 | 2.55～7.87 | 10 | 1.65 | |

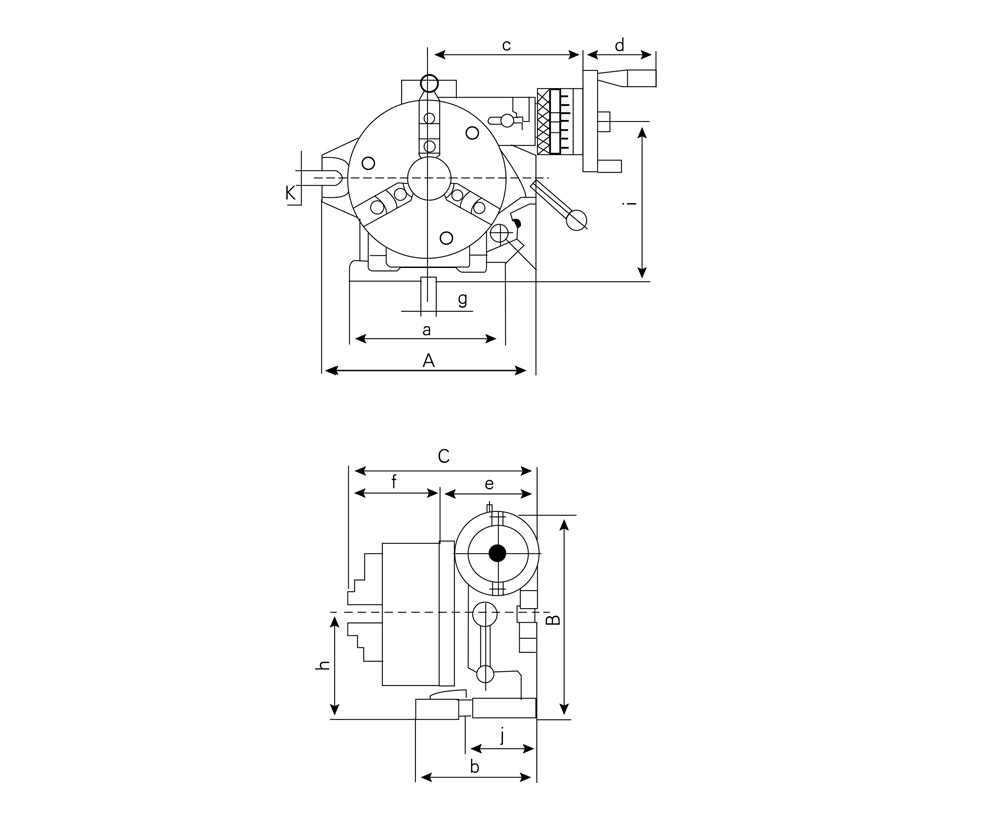

| MODEL | Guide | Turret | A | B | C | a | b | c | d | e | f | g | h | j | k | i | j | k | Gross Weight |
| NO. | Block | Hole Dla | kgs/ibs | ||||||||||||||||
| CS-6 | 16 | 50 | 250 | 238 | 207 | 182 | 140 | 186 | 93 | 112 | 65 | 16 | 122 | 80 | 16 | 191 | 80 | 16 | 32 |
| 0.63 | 1.97 | 9.84 | 9.37 | 8.15 | 7.17 | 5.51 | 7.32 | 3.66 | 4.41 | 2.56 | 0.63 | 4.8 | 3.15 | 0.63 | 7.52 | 3.15 | 0.63 | 70 | |
| CS-8 | 16 | 63 | 320 | 294 | 235.5 | 320 | 160 | 213 | 93 | 126.5 | 75 | 16 | 155 | 95 | 20 | 234.67 | 95 | 20 | 52 |
| 0.63 | 2.48 | 12.6 | 11.57 | 9.27 | 9.06 | 6.3 | 9.27 | 3.66 | 4.99 | 2.95 | 0.63 | 6.1 | 3.74 | 0.79 | 9.24 | 3.74 | 0.79 | 114 |
