BS-0
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

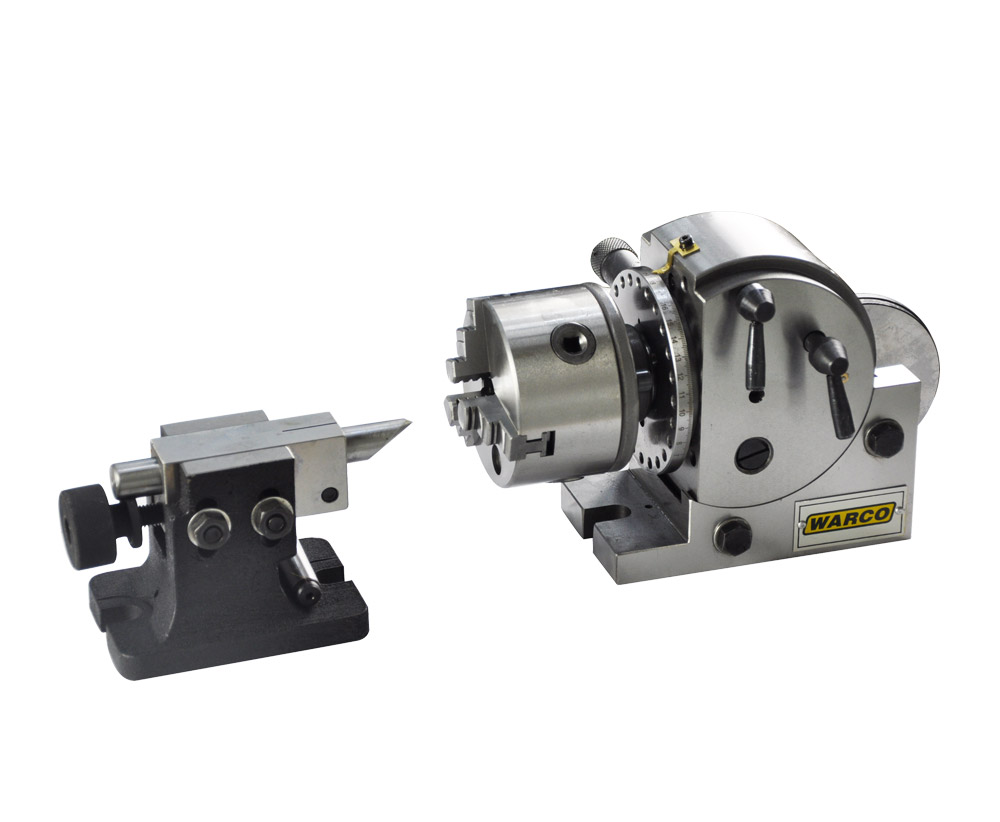

Features: Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing.Complete the gear,face,flute processing and no need accessories,but the whole construction is the same as universal type.The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding.Attaches 3dividing plate along with the dividing head indirect dividing in any division indexding 2-50.51-380.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Features: Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing.Complete the gear,face,flute processing and no need accessories,but the whole construction is the same as universal type.The 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding.Attaches 3dividing plate along with the dividing head indirect dividing in any division indexding 2-50.51-380.
Contact us

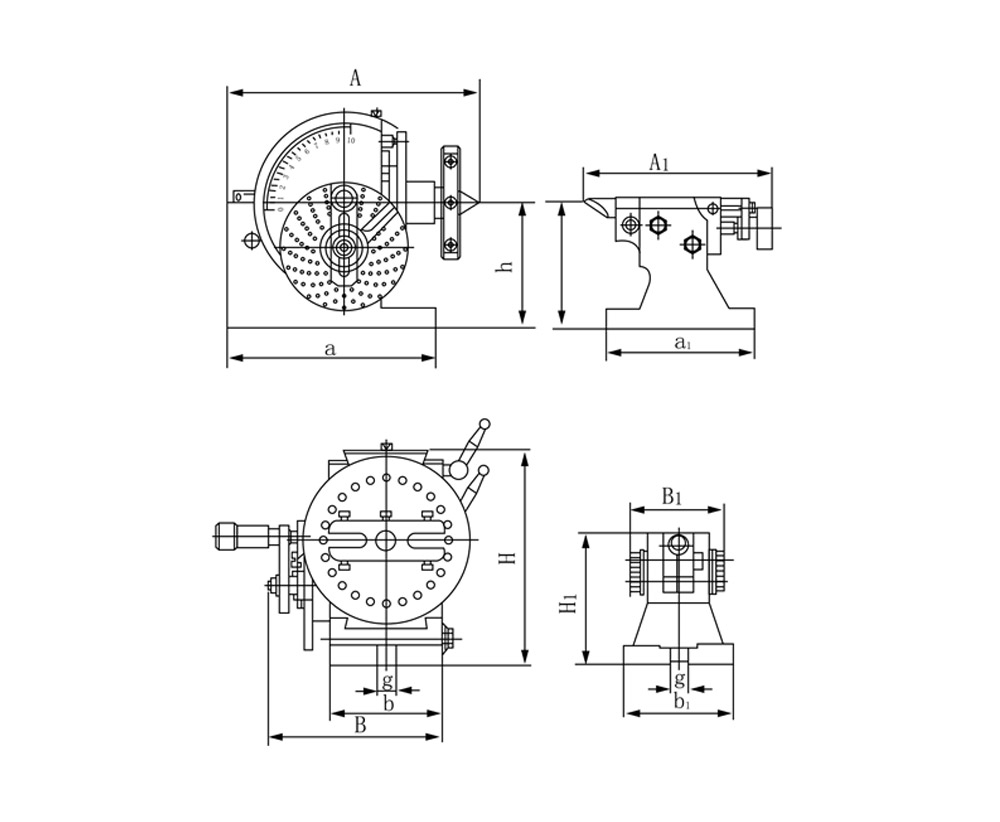

| SEMIUNVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(HEADSTOCK) |
| Model | A | B | H | h | a | b | g | Taper of center | Diameter ofSpindle hole | N.W.(kg) |
| BS-0 | 193 | 140 | 173 | 100 | 166 | 90 | 16 | MT2 | 18 | 23.8 |
| 7.59 | 12:14 | 6.81 | 3.93 | 6.53 | 3.54 | 0.63 | B&S NO.7 | |||
| BS-1 | 242 | 168 | 220 | 128 | 206 | 113 | 16 | MT3 | 20 | 35.8 |
| 9.52 | 6.61 | 8.66 | 5.04 | 8.11 | 4.45 | 0.63 | B&S NO.9 |
| STANDARD ACCESSORIES |
| Dividing plate A.B.C. |
| Numbers of holes of dividing plate |
| (worm gear reduction ratio 1:40) |
| Numbers of hole | PlateA | 15 | 16 | 17 | 18 | 19 | 20 |
| PlateB | 21 | 23 | 27 | 29 | 31 | 33 | |
| PlateC | 37 | 39 | 41 | 43 | 47 | 49 |
| OPTIONAL ACCESSORY |
| 3-jaw Chuck |
| 4”or5”3-jaw Chuck for BS-0 |
| 5”or6”3-jaw Chuck for BS-1 |
| 6”or7”8”3-jaw Chuck for BS-2 |
| Model | A1 | B1 | H1 | h | a1 | b1 | g1 | N.W.(kg) | Mueasurement m3 |
| BS-0 | 175 | 87 | 107 | 100 | 130 | 92 | 16 | Packed with the Dividing Head | |
| 6.89 | 3.42 | 4.21 | 3.93 | 5.12 | 3.62 | 0.63 | |||
| BS-1 | 183 | 87 | 137 | 128 | 158 | 110 | 16 | Packed with the Dividing Head | |
| 7.2 | 3.42 | 5.39 | 5.04 | 6.22 | 4.33 | 0.63 |
