F12100
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

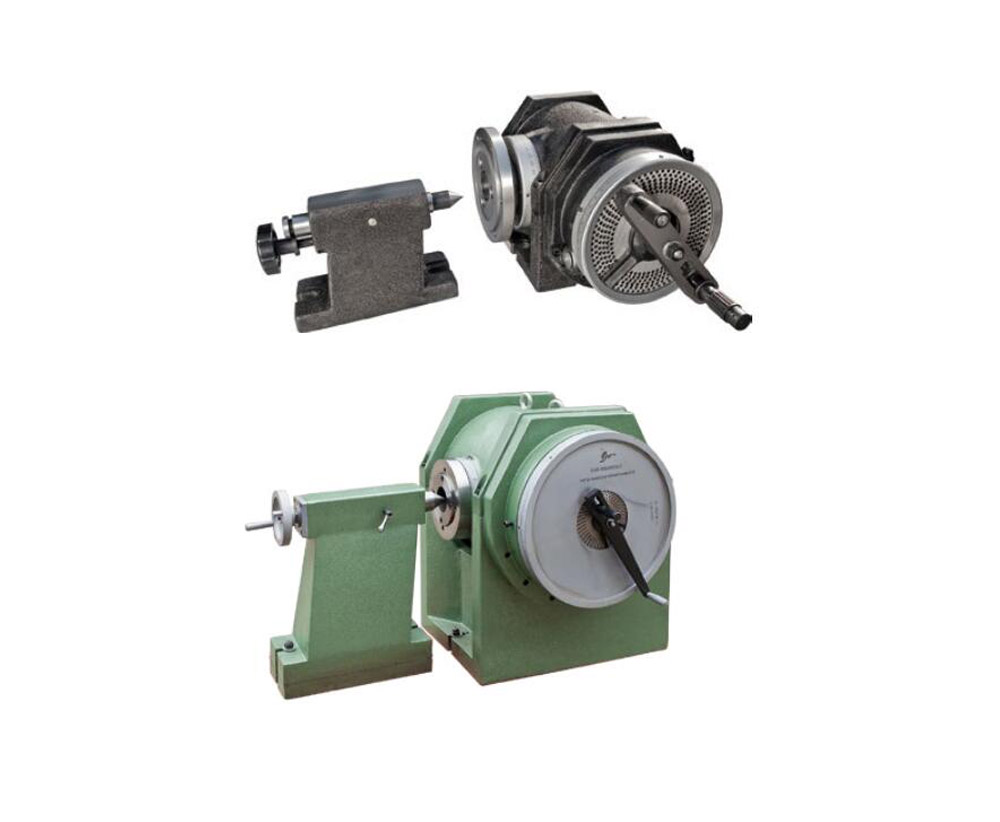

◆ Type F12 series semi-universal dividing head is one of the most important attachment for milling machine.It can be used for simple indexing and divide circle into any equal parts,etc. ◆ The F12 series with right handwheel.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
◆ Type F12 series semi-universal dividing head is one of the most important attachment for milling machine.It can be used for simple indexing and divide circle into any equal parts,etc. ◆ The F12 series with right handwheel.
Contact us

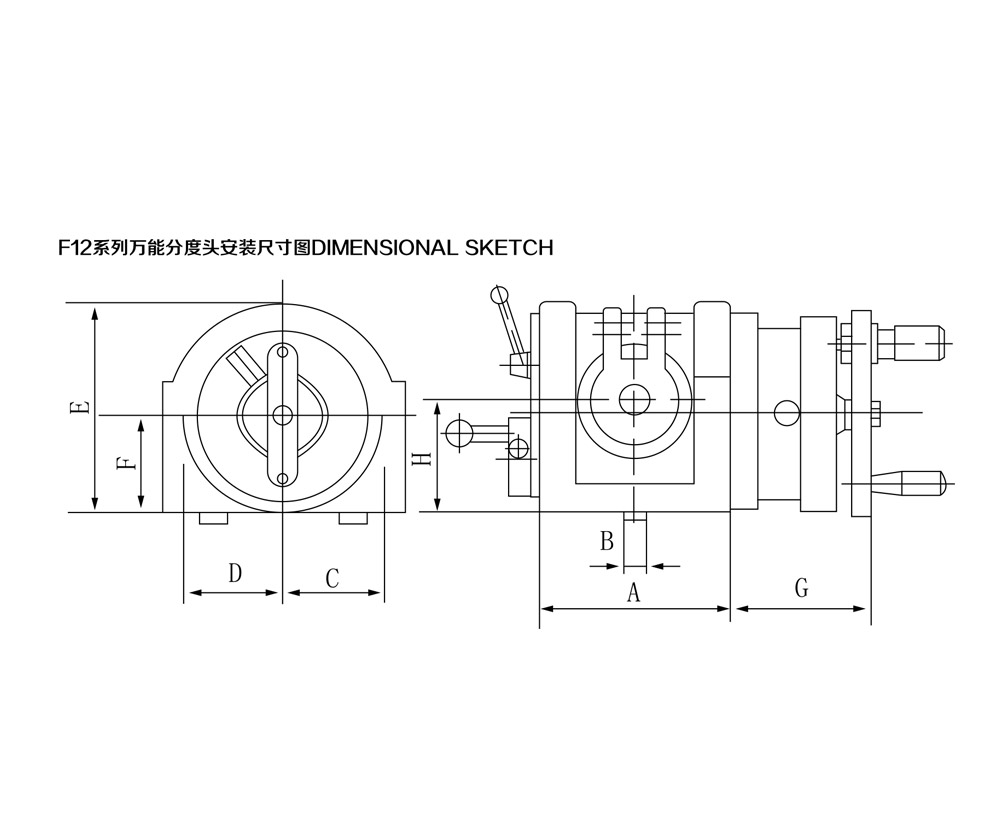

| Items | Unit | F12100 | F12125 | F12160 | F12200 | F11260 | F11300 | F11400 | F12500 |
| Center hight | mm | 100 | 125 | 160 | 200 | 260 | 300 | 400 | 500 |
| Swivel angel of spidle from horizontal to upward | ≤ 95 ° | ||||||||
| Horizontal position（downward） | ≤ 5° | ||||||||
| Rotating angle of spindle for one domplete revolution dividing handle | 9°（540grad.,1 each） | ||||||||
| Min.reading of vernier | 10 | ||||||||
| Worm gear ratio | 1:40 | ||||||||
| Taper of spindle bore | MT3 | MT4 | MT4 | MT4 | MT6 | MT6 | MT6 | MT5 | |
| Width of locating key | mm | 14 | 18 | 18 | 18 | 18/20 | 18/20 | 18/20 | 18/20 |
| Diameter of short taper of spindlenose for mounting flange | mm | 41.275 | 53.975 | 53.975 | 43.975 | 82.563 | 82.563 | 82.563 | 106.375 |
| Numbers of hole in dividing plate | 1st plate | 24.25.28.30.34.37.38.41.42.43 | |||||||
| 2nd plate | 46.47.49.51.53.54.57.58.59.62.66 | ||||||||
| Individual indexing error of the spindle for one complete revolution of diving handle | ±45” | 80” | |||||||
| Cumulate error at any 1/4 periphery of spindle | ±1” | ±70” | |||||||
| Max.bearing | kg | 100 | 130 | 130 | 130 | 100 | 130 | 130 | 130 |
| Net weight | kg | 57 | 83.5 | 100 | 130 | / | / | / | / |
| Gross weight | kg | 69 | 96 | 114 | 140 | / | / | / | / |
| Overall dimensions | mm | 616 495255 | 536 460310 | 710 535342 | 710 53534 | / | / | / | / |
| F11系列万能分度头安装尺寸数：Installation sketc and dimensions: | |||||||||||||
| Model | A | B | C | D | E | F | G | H | L | M | N | O | P |
| F11100A | 162 | 14 | 102 | 87 | 186 | 95 | 116 | 100 | 93 | 54.7 | 30 | 100 | 100 |
| F11125A | 209 | 18 | 116 | 98 | 224 | 117 | 120 | 125 | 103 | 68.5 | 34.5 | 100 | 125 |
| F11160A | 209 | 18 | 116 | 98 | 259 | 152 | 120 | 160 | 103 | 68.5 | 34.5 | 100 | 160 |
| F11200A | 209 | 18 | 116 | 98 | 299 | 192 | 120 | 200 | 103 | 68.5 | 34.5 | 100 | 200 |
| F12500 | 490 | 22 | 300 | 330 | 790 | 500 | 160 | 500 |
