FW80
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

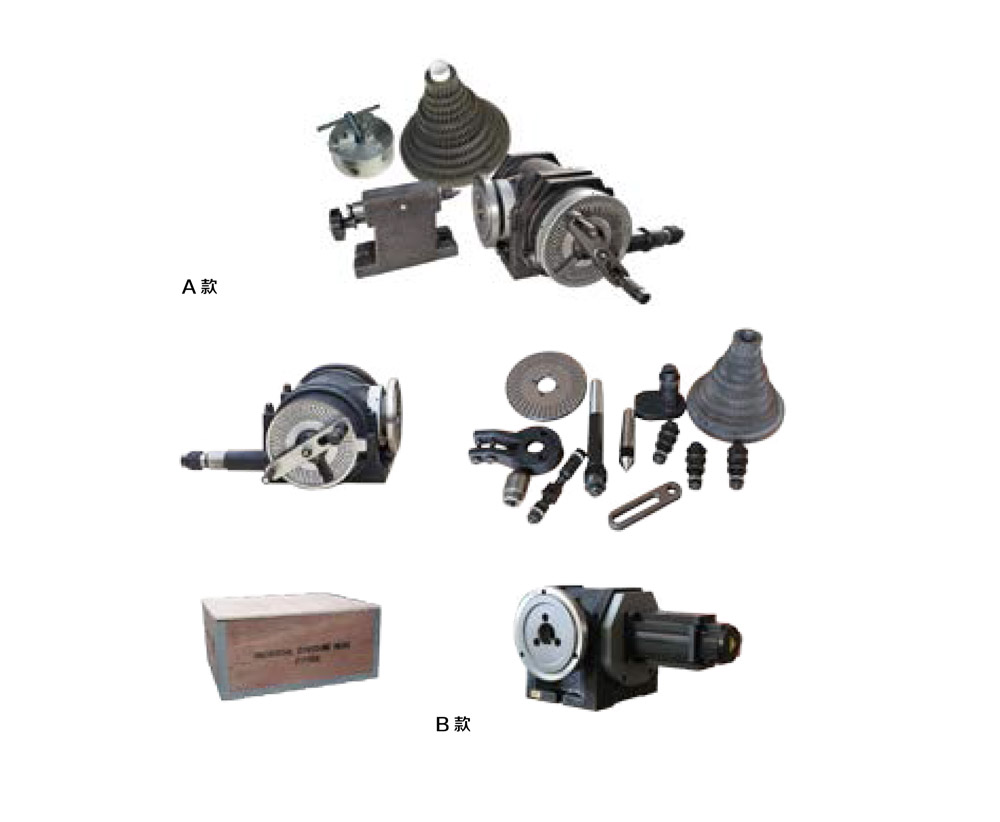

1、he universal dividing head,Type F11100A,F11125A,F11160A，F11200A is one of the most important attachment for milling machine. Withe the help of this dividing head the workpiece held between centers,or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts.By means of all kind of cutters,the dividing head can also help milling machine to perform the milling operation for flute spur gear,spiral gear,spiral flute,Archimedean cam,helical flute and etc. 2、The dividing head is equipped with a face plate that can be mounted onto the spindle nose.The workpiece can be mounted on the face plate.thus cutting can be carried out on 4-sides of a worpiece. 3、tF11125C,F11160C is designed for the customers special needed,the shafting is improved to support heavy load. 4、The universal dividing head,type F11100AL,F11125AL,F11160AL is the same os of the structures and the opreation handle is setted on
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1、he universal dividing head,Type F11100A,F11125A,F11160A，F11200A is one of the most important attachment for milling machine. Withe the help of this dividing head the workpiece held between centers,or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts.By means of all kind of cutters,the dividing head can also help milling machine to perform the milling operation for flute spur gear,spiral gear,spiral flute,Archimedean cam,helical flute and etc. 2、The dividing head is equipped with a face plate that can be mounted onto the spindle nose.The workpiece can be mounted on the face plate.thus cutting can be carried out on 4-sides of a worpiece. 3、tF11125C,F11160C is designed for the customers special needed,the shafting is improved to support heavy load. 4、The universal dividing head,type F11100AL,F11125AL,F11160AL is the same os of the structures and the opreation handle is setted on
Contact us
| Items | Unit | FW80 | F11100A | F11125A | F11160A | F111200A |
| Center hight | mm | 80 | 100 | 125 | 160 | 200 |
| Swivel angle of spindle from horizontal to upward | ≤90° | ≤95° | ||||
| Horizontal position(downward) | ≤6° | ≤5° | ||||
| Rotating angle of spindle for one domplete revolution dividing handle | 9°（540grad.,1 each） | |||||
| Min.reading of vernier | 10” | |||||
| Worm gear ratio | 1:40 | |||||
| Taper of spindle bore | MT3 | MT4 | ||||
| Width of locating key | mm | 14 | 18 | |||
| Diameter of short taper of spindlenose for mounting flange | mm | Φ36.54 | Φ41.275 | Φ53.975 | Φ53.975 | Φ53.975 |
| Numbers of hole in dividing plate | 1st plate | 24.25.28.30.34.37.38.39.41.42.43 | ||||
| 2nd plate | 46.47.49.51.53.54.57.58.59.62.66 | |||||
| Change gear | Module | 1.5 | 2 | |||
| Teeth Numbers | 25.30.35.40.50.55.30.70.80.90.100 | |||||
| Individual indexing error of the spindle for one complete revolution of diving handle | ±45” | |||||
| Cumulate error at any 1/4 periphery of spindle | ±1” | |||||
| Max.bearing | kg | 80 | 100 | 130 | 130 | 130 |
| Net weight | kg | 36 | 67 | 101.5 | 113 | 130 |
| Gross weight | kg | 45 | 79 | 111.5 | 125 | 140 |
| Overall dimensions | mm | 542×403×220 | 616×465×265 | 635×530×530 | 710×535×342 | 710×535×342 |

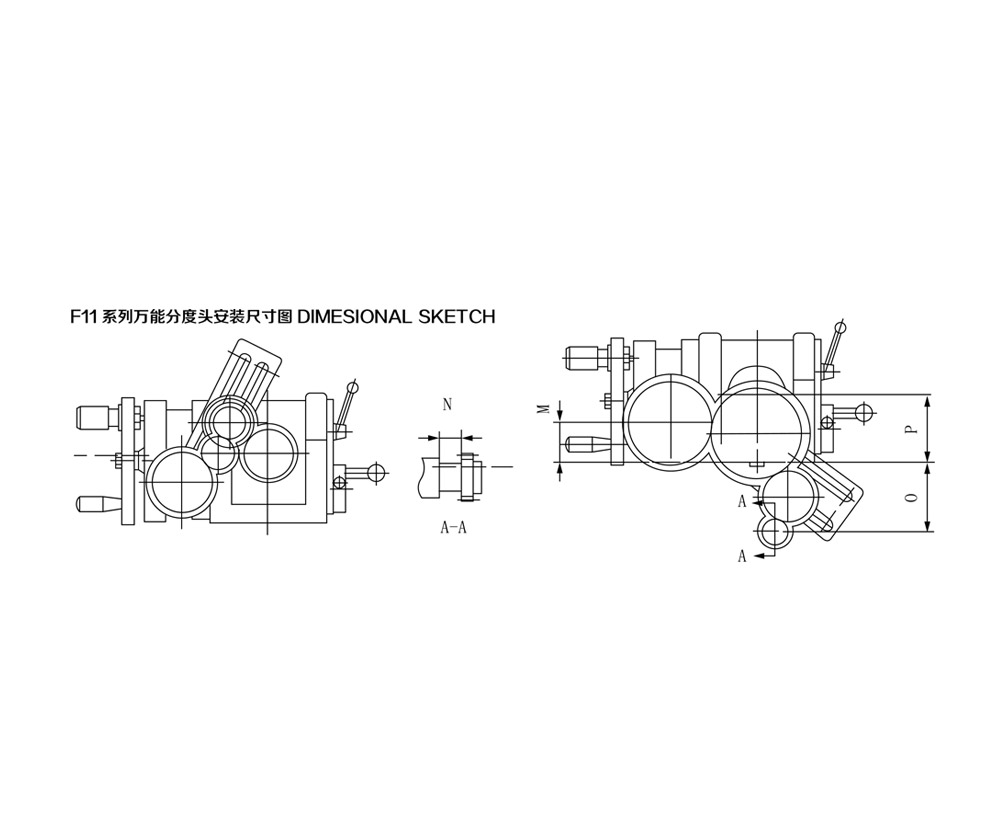

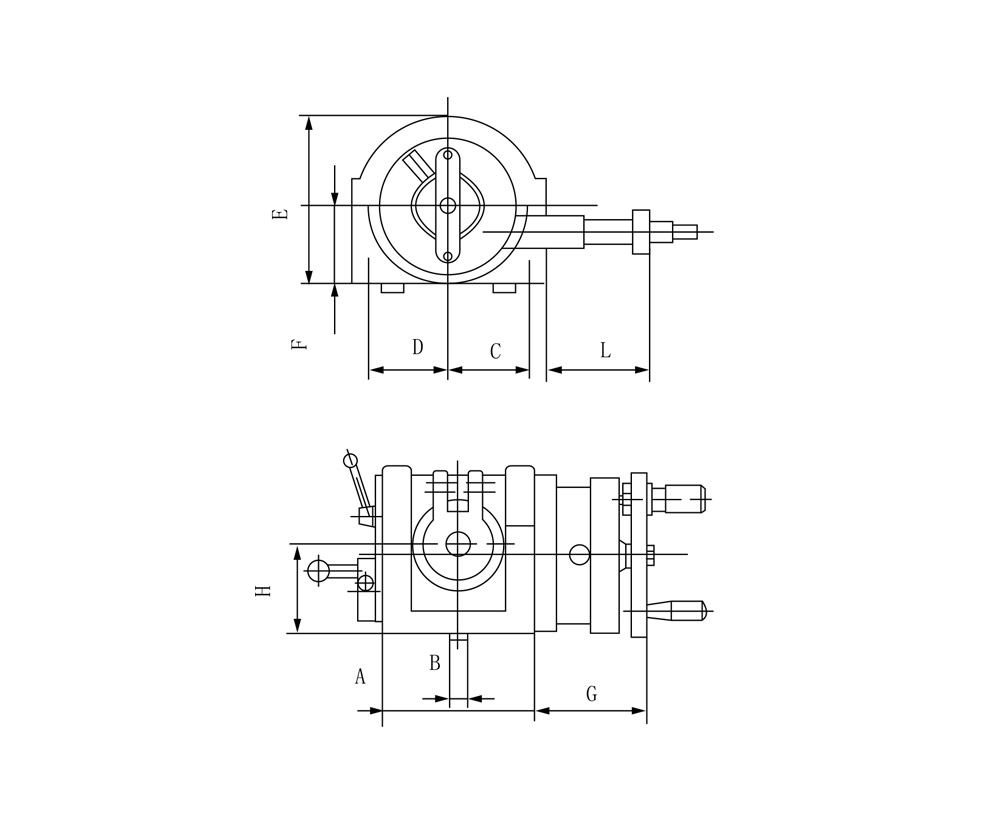

| F11系列万能分度头安装尺寸参数：Installation sketc and dimensions: | |||||||||||||
| Model | A | B | C | D | E | F | G | H | L | M | N | O | P |
| FW80 | 139 | 14 | 77 | 73 | 147 | 77 | 98 | 80 | 106 | 43 | 30 | 60 | 80 |
| F11100A | 162 | 14 | 102 | 87 | 186 | 95 | 116 | 100 | 93 | 54.7 | 30 | 100 | 100 |
| F11125A | 209 | 18 | 116 | 98 | 224 | 117 | 120 | 125 | 103 | 68.5 | 34.5 | 100 | 125 |
| F11160A | 209 | 18 | 116 | 98 | 259 | 152 | 120 | 160 | 103 | 68.5 | 34.5 | 100 | 160 |
| F11200A | 209 | 18 | 116 | 98 | 299 | 192 | 120 | 200 | 103 | 68.5 | 34.5 | 100 | 200 |
