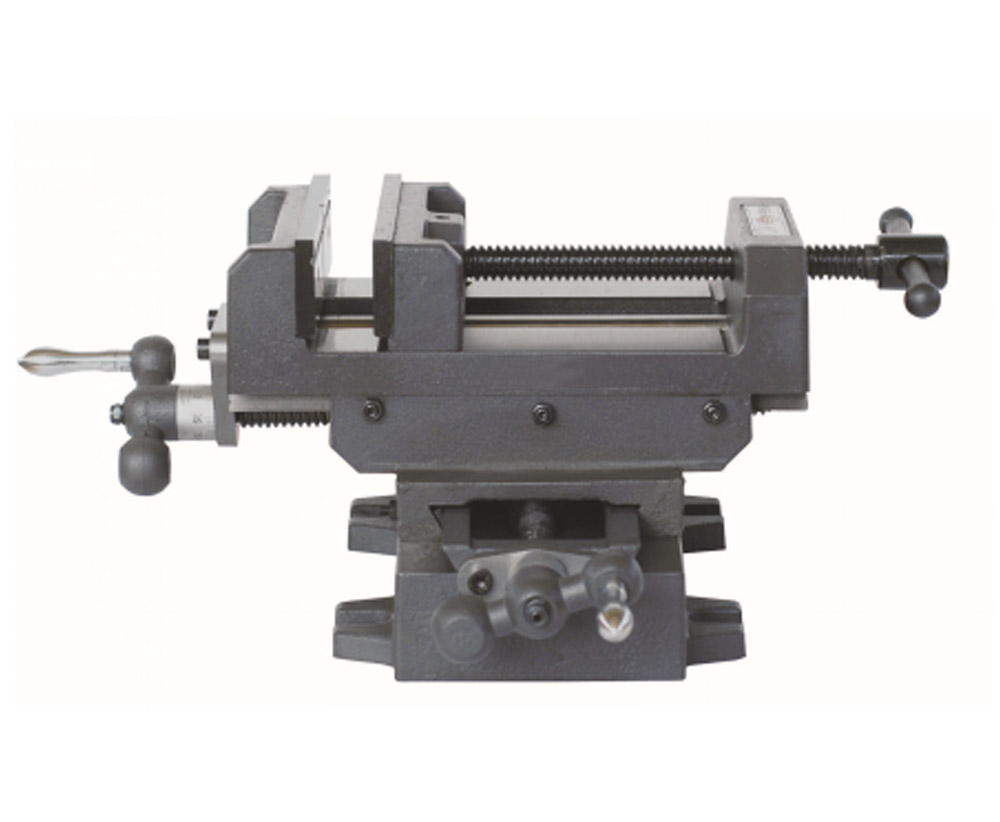

| Cross Clamp | |||||||
| 型号 | 钳口宽度 | 钳口高度 | 钳口张开度 | 十字体行程 | 毛重/净重 | 包装体积 | 包装形式 |
| Model | Width of jaw | Height of jaw | Max.opening | Cross travel | G.W./N.W. | Packing volume | Packing shape |
| Unit | (mm) | (mm) | (mm) | (mm) | (kg) | 长×宽×高(cm) | |

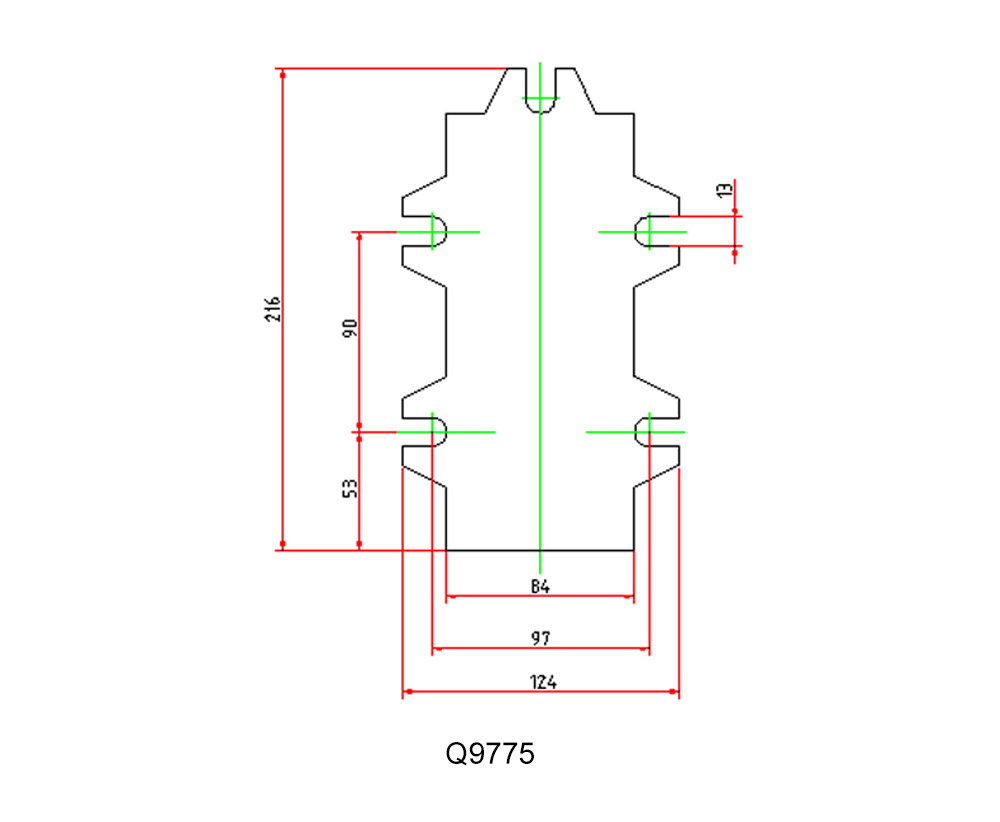

| Q9775 | 75 | 35 | 76 | 125 | 7.5/7 | 24×24×17 | 纸箱carton |
| Q97100 | 100 | 46 | 102 | 125 | 9.5/9 | 27×27×17 | 纸箱carton |
| Q97125 | 125 | 50 | 125 | 150 | 19/18 | 30×30×20 | 纸箱carton |
| Q97150 | 150 | 53 | 152 | 200 | 28/27 | 37×37×22 | 纸箱carton |
| Q97200 | 200 | 53 | 203 | 200 | 36/35 | 37×45×24 | 纸箱carton |
