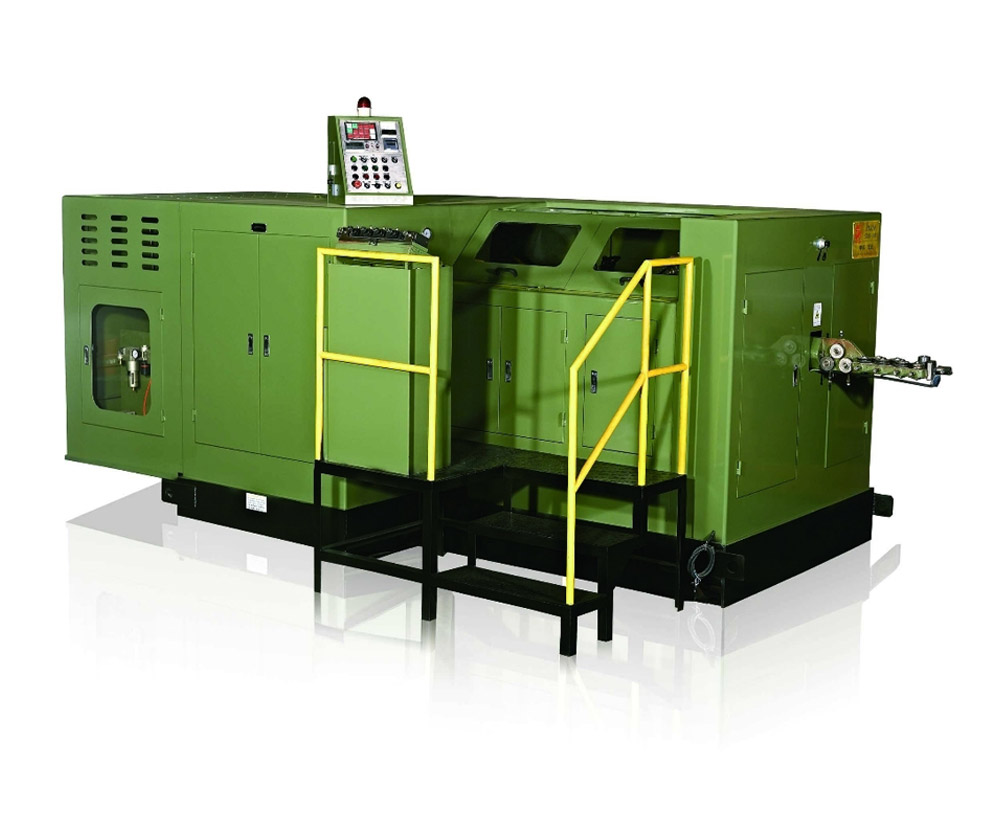

SJBF-103L / SJBF-203L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | SJBF-103L | SJBF-133S | SJBF-133L | SJBF-163S | SJBF-203L |
| Forging station | No. | 3 | 3 | 3 | 3 | 3 |
| Forging force | kgs | 80,000 | 120,000 | 120,000 | 200,000 | 350,000 |
| Max cut-off dia. | mm | Φ12 | Φ15 | Φ15 | Φ18 | Φ22 |
| Max cut-off length | mm | 195 | 145 | 250 | 200 | 240 |
| Speed Range | pcs/min | 85-160 | 90-160 | 60-110 | 70-120 | 50-80 |
| P.K.O Stroke | mm | 15 | 30 | 30 | 40 | 50 |
| K.O.Stroke | mm | 165 | 115 | 230 | 170 | 220 |
| Main slide stroke | mm | 280 | 200 | 350 | 260 | 346 |
| Main motor | kw | 22 | 30 | 30 | 55 | 75 |
| Cut-off-die size | mm | Φ45*59L | Φ63*69L | Φ55*70L | Φ60*90L | Φ75*120L |
| Punch die size | mm | Φ53*112L | Φ60*130L | Φ60*179L | Φ75*185L | Φ90*215L |
| Main die size | mm | Φ75*200L | Φ86*135L | Φ86*265L | Φ100*190L | Φ125*240L |
| Die pitch | mm | 90 | 98 | 110 | 120 | 140 |
| Machine dimension(L*W*H) | cm | 570*250*230 | 460*260*200 | 780*260*270 | 650*290*250 | 760*300*300 |
| Machine weight (Approx) | kgs | 19,500 | 19,500 | 31,000 | 36,000 | 55,000 |
| Normal bolt size | mm | 6-10 | 8-13 | -813 | 10-18 | 12-22 |
| Shank length of blank | mm | 25-160 | 20-110 | 70-210 | 20-160 | 25-210 |
