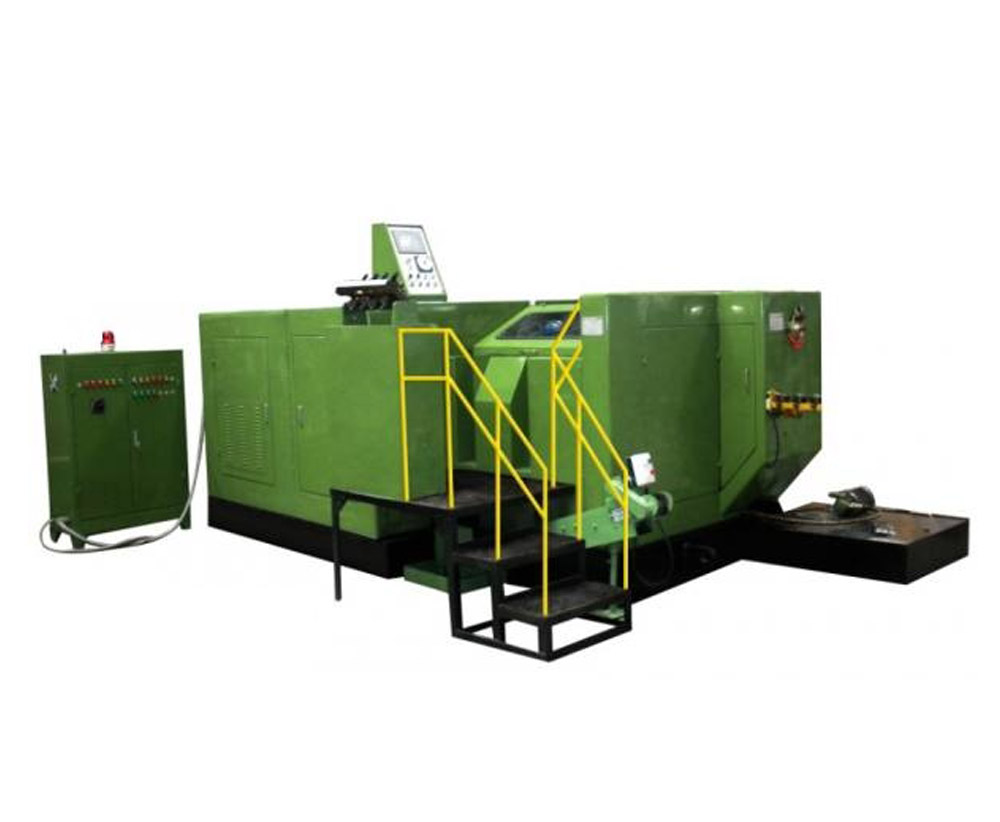

SJBF-44S / SJBF-104L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | SJBF-44S | SJBF-64S | SJBF-84S | SJBF-104S | SJBF-104L |
| Forging station | No. | 4 | 4 | 4 | 4 | 4 |
| Forging force | kgs | 15,000 | 45,000 | 75,000 | 85,000 | 85,000 |
| Max cut-off dia. | mm | Φ5 | Φ8 | Φ10 | Φ12 | Φ12 |
| Max cut-off length | mm | 55 | 100 | 110 | 135 | 190 |
| Speed Range | pcs/min | 250 | 140-250 | 120-220 | 95-180 | 80-150 |
| P.K.O Stroke | mm | 10 | 15 | 26 | 30 | 30 |
| K.O.Stroke | mm | 45 | 85 | 100 | 115 | 170 |
| Main slide stroke | mm | 100 | 136 | 140 | 190 | 280 |
| Main motor | kw | 11 | 15 | 22 | 30 | 30 |
| die size | mm | Φ20*30L | Φ30*45L | Φ35*50L | Φ45*59L | Φ45*59L |
| Punch die size | mm | Φ32*60L | Φ40*90L | Φ45*115L | Φ53*115L | Φ53*115L |
| Main die size | mm | Φ38*60L | Φ50*110L | Φ60*120L | Φ75*135L | Φ75*185L |
| Die pitch | mm | 48 | 60 | 80 | 94 | 94 |
| Machine dimension(L*W*H) | cm | 260*170*130 | 350*200*170 | 420*230*190 | 450*260*210 | 520*260*230 |
| Machine weight (Approx) | kgs | 5,000 | 10,000 | 14,000 | 18,000 | 21,000 |
| Normal bolt size | mm | 2-4 | 3-6 | 5-8 | 6-10 | 6-10 |
| Shank length of blank | mm | 10-45 | 10-70 | 15-77 | 15-110 | 20-160 |
