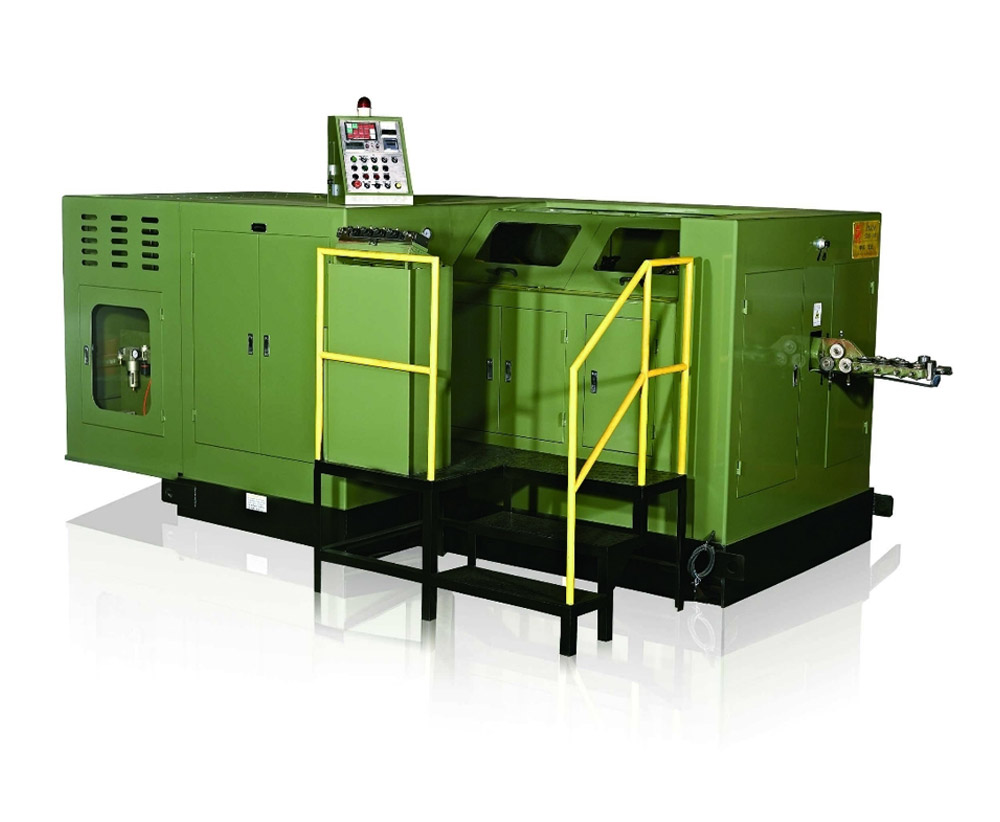

SJBP-65S / SJBP-135L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | SJBP-65S | SJBP-85S | SJBP-105S | SJBP-135S | SJBP-135L |
| Forging station | No. | 5 | 5 | 5 | 5 | 5 |
| Forging force | kgs | 48,000 | 85,000 | 98,000 | 145,000 | 145,000 |
| Max cut-off dia. | mm | Φ8 | Φ11 | Φ13 | Φ16 | Φ16 |
| Max cut-off length | mm | 100 | 110 | 140 | 140 | 190 |
| Speed Range | pcs/min | 120-200 | 95-160 | 90-140 | 65-115 | 60-100 |
| P.K.O Stroke | mm | 20 | 26 | 30 | 30 | 30 |
| K.O.Stroke | mm | 80 | 90 | 115 | 115 | 165 |
| Main slide stroke | mm | 136 | 140 | 190 | 200 | 270 |
| Main motor | kw | 15 | 22 | 30 | 37 | 37 |
| die size | mm | Φ30*45L | Φ35*50L | Φ45*59L | Φ63*69L | Φ63*69L |
| Punch die size | mm | Φ40*90L | Φ45*115L | Φ53*115L | Φ60*130L | Φ60*130L |
| Main die size | mm | Φ50*110L | Φ60*120L | Φ75*135L | Φ86*190L | Φ86*190L |
| Die pitch | mm | 60 | 80 | 94 | 110 | 110 |
| Machine dimension(L*W*H) | cm | 350*220*170 | 420*250*190 | 450*280*210 | 550*300*220 | 560*290*220 |
| Machine weight (Approx) | kgs | 11,000 | 16,000 | 20,000 | 30,500 | 31,000 |
| Normal bolt size | mm | 3-6 | 5-8 | 6-10 | 8-14 | 8-14 |
| Shank length of blan | mm | 10-70 | 15-77 | 15-110 | 20-110 | 20-160 |
