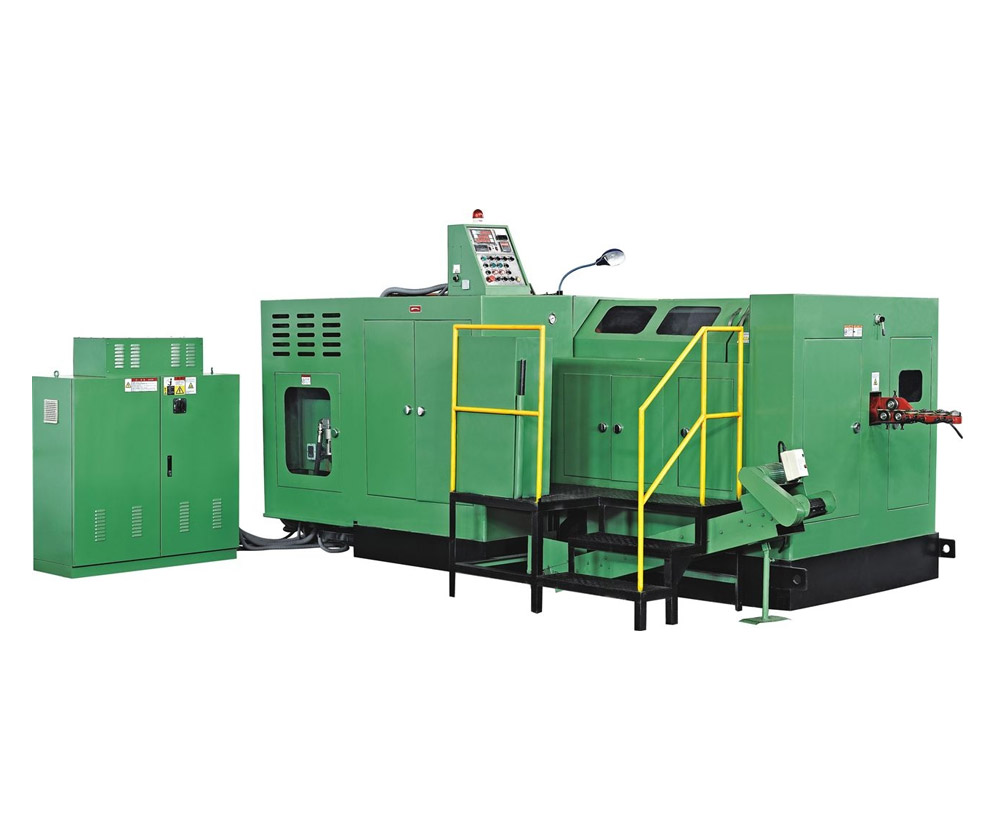

COLD FORGING AND NUT FORMER MACHINE

Home > Products > METAL > COLD FORGING AND NUT FORMER MACHINE
SJBP-46S / SJBP-136LL

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW



Contact us
Model  Unit  SJBP-46S SJBP-66S  SJBP-86S  SJBP-106S SJBP-136S SJBP-136L SJBP-136LL
Forging station No.  6 6 6 6 6 6 6
Forging force  kgs  30,000 53,000 95,000 115,000 148,000 148,000 148,000
Max cut-off dia.  mm Φ7 Φ10 Φ13 Φ16 Φ18 Φ18 Φ18
Max cut-off length mm 55 100 100 133 140 190 240
Speed Range  pcs/min  180 100-160  80-135  85-140  60-105 60-100 55-90
P.K.O Stroke mm 10 26 26 30 30 40 40
K.O.Stroke mm 50 85 90 115 115 170 210
Main slide stroke mm 100 136 140 190 200 270 320
Main motor  kw  11 18.5 22 30 45 45 45
Cut-off-die size mm Φ24*30L Φ32*45L Φ42*60L Φ52*75L Φ58*80L Φ58*80L Φ58*80L
Punch die size mm Φ32*90L Φ40*90L Φ45*115L Φ53*115L Φ60*130L Φ60*130L Φ60*130L
Main die size mm Φ38*100L Φ50*120L Φ60*120L Φ75*135L Φ94*190L Φ94*190L Φ94*240L
Die pitch mm 48 64 80 94 110 110 110
Machine dimension(L*W*H) cm 260*180*130 350*240*170 420*270*200 460*300*210 460*310*220 560*310*220 620*310*250
Machine weight (Approx) kgs 8,800 16,000 20,000 24,000 31,000 35,000 42,000
Max forging dia. on head mm Φ12 Φ14 Φ18 Φ22 Φ25 Φ25 Φ25
Normal bolt size  mm  2-4 3-8 5-10 6-12 8-14 8-14 8-14
Shank length of blank  mm  10-50 15-70  15-77  15-110  20-110 20-160 40-200
