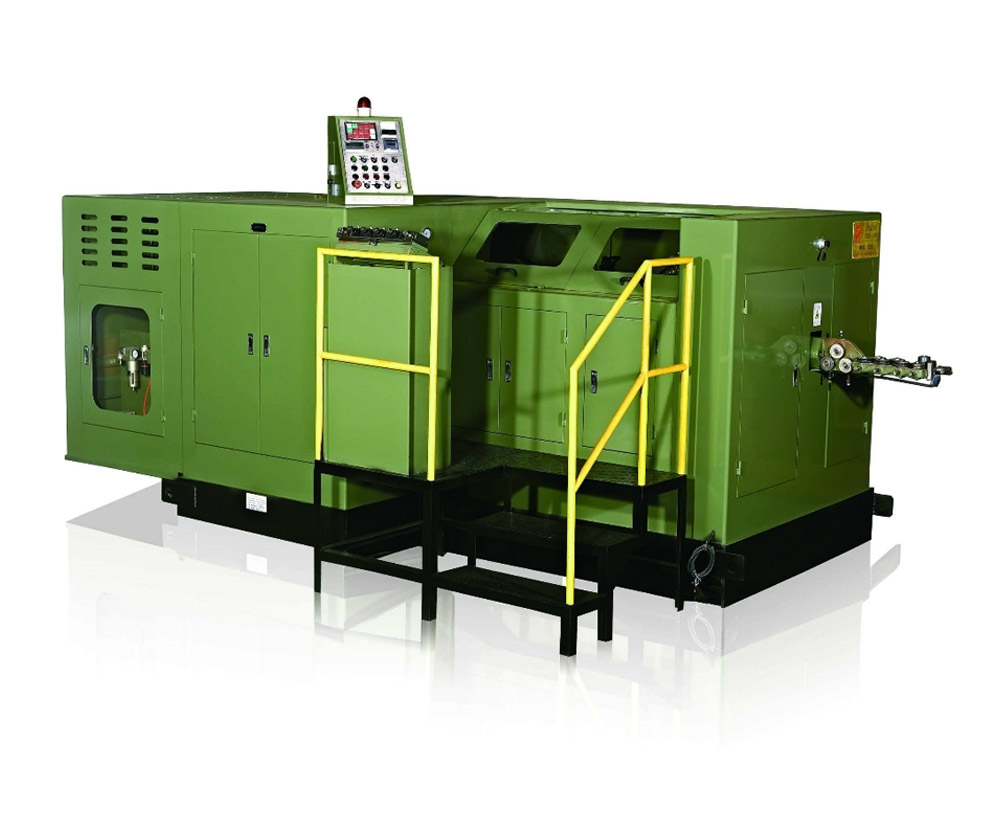

COLD FORGING AND NUT FORMER MACHINE

Home > Products > METAL > COLD FORGING AND NUT FORMER MACHINE
SJBP-166S / SJBP-137L

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW



Contact us
Model  Unit  SJBP-166S  SJBP-206S  SJBP-206L SJBP-256S SJBP-256L SJBP-276S SJBP-137L
Forging station No.  6 6 6 6 6 6 7
Forging force  kgs  280,000 420,000 420,000 520,000 520,000 760,000 152,000
Max cut-off dia.  mm Φ23 Φ30  Φ30  Φ34 Φ34 Φ41 Φ20
Max cut-off length mm 190 195 240 320 380 320 190
Speed Range  pcs/min  50-80  45-75  40-65  40-60 30-60 30-50 60-100
P.K.O Stroke mm 40 50 50 50 50 50 40
K.O.Stroke mm 170 180 220 280 320 280 170
Main slide stroke mm 274 280 346 446 510 450 270
Main motor  kw  75 90 90 132 132 200 45
Cut-off-die size mm Φ75*100L Φ82*130L Φ82*130L Φ109*150L Φ109*150L Φ129*180L Φ60*80L
Punch die size mm Φ75*185L Φ90*215L Φ90*215L Φ120*270L Φ120*270L Φ180*270L Φ60*130L
Main die size mm Φ108*200L Φ125*200L Φ125*240L Φ148*300L Φ148*355L Φ178*300L Φ94*190L
Die pitch mm 129 140 140 160 160 190 110
Machine dimension(L*W*H) cm 650*360*260 730*330*280 800*380*320 900*480*420 980*470*350 950*520*450 600*350*230
Machine weight (Approx) kgs 56,000 80,000 90,000 135,000 145,000 170,000 38,000
Max forging dia. on head mm Φ32 Φ44 Φ44 Φ50 Φ50 Φ60 Φ25
Normal bolt size  mm  10-18 12-22 12-22 16-28 16-28 20-30 8-14
Shank length of blank  mm  20-160  20-160  30-210  50-260 60-310 50-260 20-160
