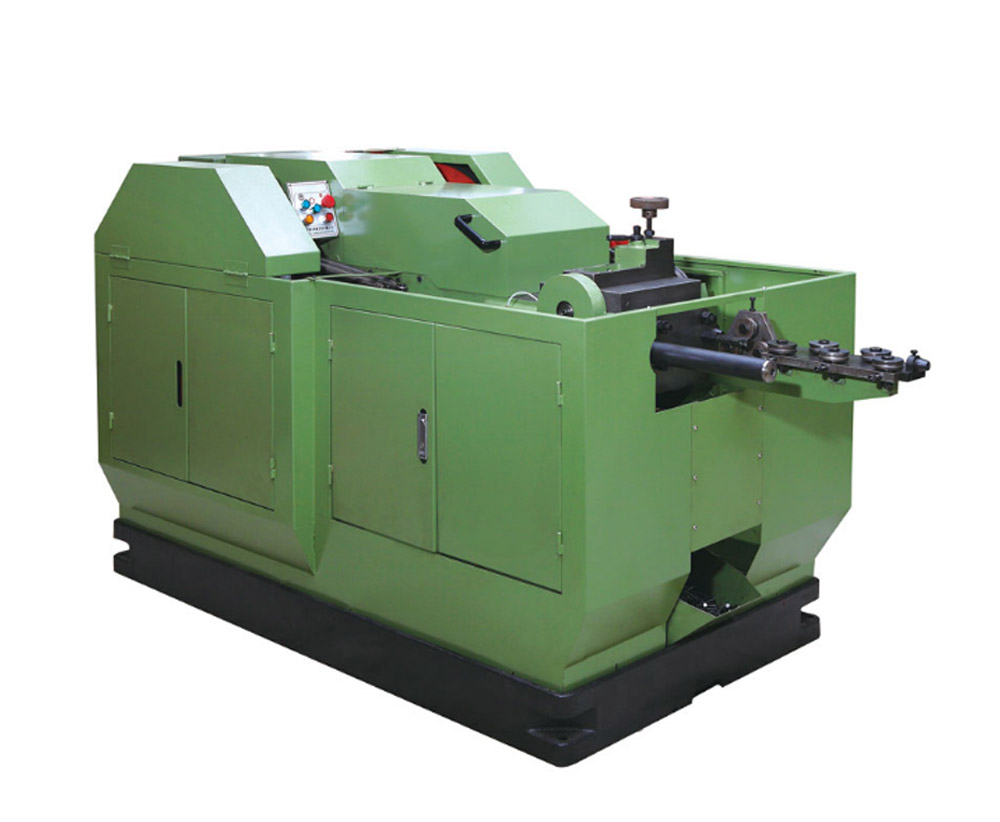

SJH0432 / SJH0576
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Use and characteristic: 1、Using high quality QT500-7 casting, more compact structure and more stable performance. 2、The slipway adopts the high quality alloy and Copper alloy with special treatment which has a good wear-resisting property. 3、The parts are machined by CNC processing technology which ensure the precision of the requirement. 4、It is reasonable for the layout of forced lubrication, oil way and oil groove. Adequate lubrication improves the equipment life. 5、The equipment adopts brand-name products on the motor, bearing, pump etc. to improve the reliability of the equipment.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Use and characteristic: 1、Using high quality QT500-7 casting, more compact structure and more stable performance. 2、The slipway adopts the high quality alloy and Copper alloy with special treatment which has a good wear-resisting property. 3、The parts are machined by CNC processing technology which ensure the precision of the requirement. 4、It is reasonable for the layout of forced lubrication, oil way and oil groove. Adequate lubrication improves the equipment life. 5、The equipment adopts brand-name products on the motor, bearing, pump etc. to improve the reliability of the equipment.
Contact us
| Model | Unit | SJH0432 | SJH0537 | SJH0565 | SJH0576 | SJH0676 |
| Max makable dia | Mm | Ф4 | Ф5 | Ф5 | Ф5 | Ф6 |
| Makable length | Mm | 5-32 | 6-37 | 10-65 | 12-76 | 12-76 |
| Max cut-off length | Mm | 47 | 67 | 82 | 100 | 103 |
| Slide stroke | Mm | 58 | 84 | 92 | 112 | 124 |
| Speed range | Pcs/min | 170-200 | 170-190 | 125-150 | 100-130 | 90-110 |
| Main die size | Mm | Ф30*45 | Ф34.5*55.5 | Ф34.5*80.5 | Ф34.5*100.5 | Ф45*100 |
| Rough punch size | Mm | Ф25*54 | Ф31*78 | Ф31*78 | Ф31*78 | Ф36*103 |
| Fine punch size | Mm | Ф25*54 | Ф31*78 | Ф31*78 | Ф31*78 | Ф36*103 |
| Cut-off-die size | Mm | Ф15*30 | Ф19*40 | Ф19*40 | Ф19*40 | Ф25*40 |
| Cutter size | Mm | 8*30*60 | 9*32*65 | 9*32*65 | 9*32*65 | 10*38*78 |
| Main motor | 2HP-4P-380V(1.5KW) | 3HP-4P-380V(2.2KW) | 3HP-4P-380V(2.2KW) | 3HP-4P-380V(2.2KW) | 5HP-4P-380V(4KW) | |
| Oil pump | 1/4HP(180W) | 1/4HP(180W) | 1/4HP(180W) | 1/4HP(180W) | 1/4HP(180W) | |
| Net weight | Kgs | 900kg | 1450kg | 1450kg | 1450kg | 2100kg |
| Volume | Mm | 1700*1090*1100 | 1900*1100*1450 | 1900*1100*1450 | 1900*1100*1450 | 2700*1150*1200 |
