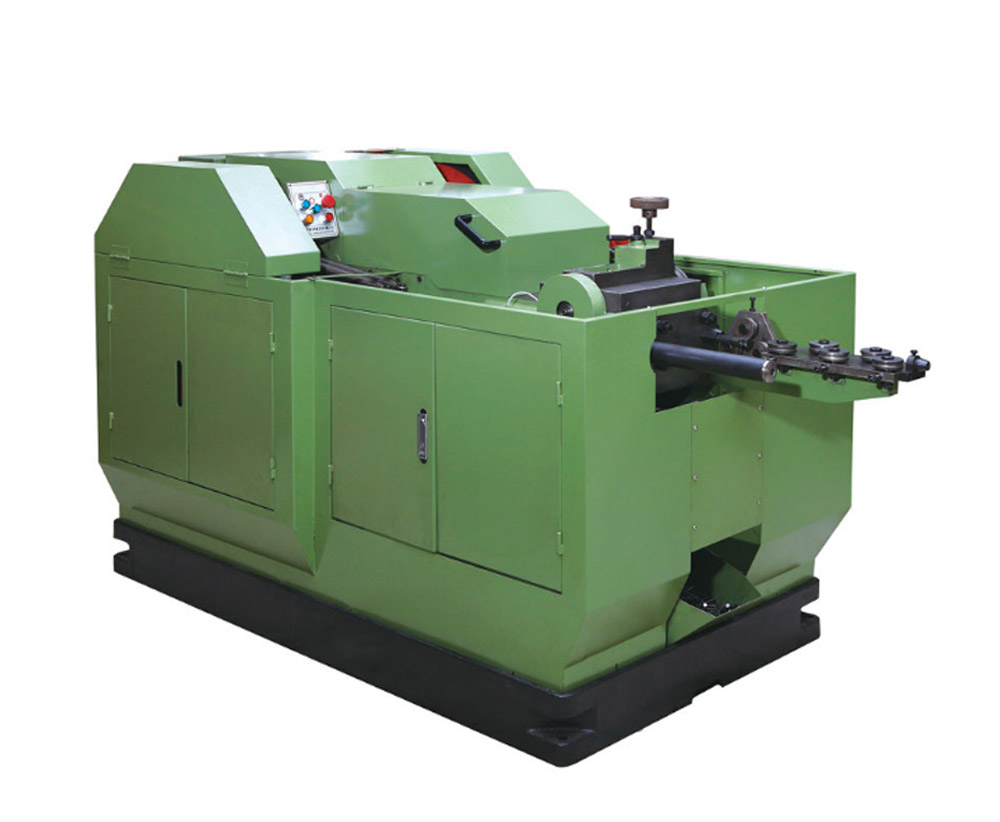

SJH06102 / SJH10150
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | SJH06102 | SJH0880 | SJH08150 | SJH10150 |
| Max makable dia | Mm | Ф6 | Ф8 | Ф8 | Ф9 |
| Makable length | Mm | 15-102 | 12-80 | 25-150 | 25-150 |
| Max cut-off length | Mm | 131 | 125 | 192 | 192 |
| Slide stroke | Mm | 158 | 140 | 220 | 220 |
| Speed range | Pcs/min | 70-90 | 70-90 | 50-70 | 50-70 |
| Main die size | Mm | Ф45*126 | Ф55*98 | Ф65*168 | Ф65*168 |
| Rough punch size | Mm | Ф36*107 | Ф38*113 | Ф48*158 | Ф48*158 |
| Fine punch size | Mm | Ф36*107 | Ф38*113 | Ф40*158 | Ф40*158 |
| Cut-off-die size | Mm | Ф25*40 | Ф32*40 | Ф32*44 | Ф32*44 |
| Cutter size | Mm | 10*38*83 | 14*40*98 | 14*50*103 | 14*50*103 |
| Main motor | 7.5HP-6P-380V(5.5KW) | 10HP-6P-380V(7.5KW) | 10HP-6P-380V(7.5KW) | 15HP-6P-380V(11KW) | |
| Oil pump | 1/4HP(180W) | 1/4HP(180W) | 1/2HP(370W) | 1/2HP(370W) | |
| Net weight | Kgs | 3000kg | 3750kg | 5800kg | 5800kg |
| Volume | Mm | 3070*1250*1350 | 3070*1250*1350 | 4400*1600*1600 | 4400*1600*1600 |
