COLD FORGING AND NUT FORMER MACHINE

Home > Products > METAL > COLD FORGING AND NUT FORMER MACHINE
11B-6SL / 24B-7SL

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW



Contact us
Model Unit  11B-6SL 14B-6SL 17B-6SL 19B-6SL 24B-6SL
Forging station No. 6 6 6 6 6
Cut-off dia.(Max) Mm 11 14 17 19 24
Cut-off length(Max) Mm 15 25 30 30 36
Kick out length(Max) Mm 30 40 45 45 80
P.K.O length(Max) Mm 15 19 20 20 24
Dies pitch Mm 50 60 70 80 100
Forging power Kgs 56,000 120,000 125,000 185,000 300,000

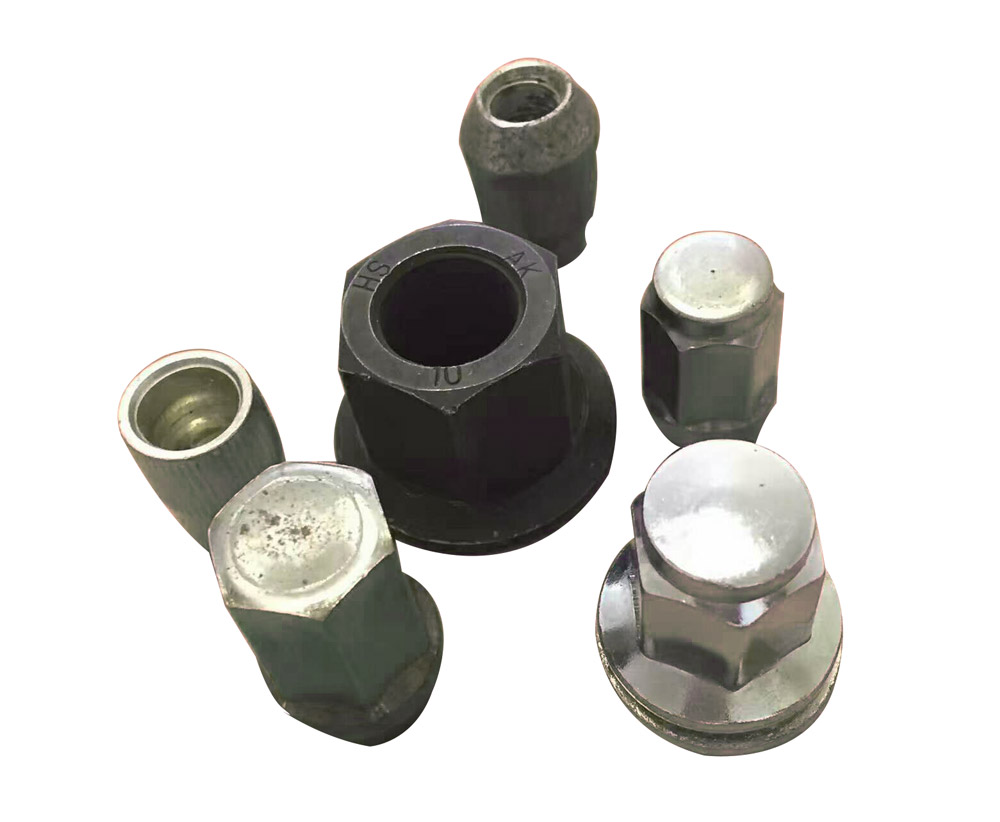

Products mm Ф11*30L Ф14*40L Ф17*45L Ф19*60L Ф24*80L
Output for nut Pcs/min 120 160 160 220 280
Ram stroke mm 80-145 60-110 60-100 50-90 45-80
Main motor Kw 11 22 30 30 55
Lubrication motor Kw 1.5 2.2 2.2 2.2 2.2*2
lubricant L 600 900 1,000 1,200 1,600
Approx weight Kgs 5,500 8,800 10,500 18,000 32,000
Machine dimensions cm 270*165*120 330*210*150 360*230*160 470*230*190 560*290*200
Model Unit  33B-6SL 41B-6SL 14B-7SL 24B-7SL
Forging station No. 6 6 7 7
Cut-off dia.(Max) Mm 30 40 14 24
Cut-off length(Max) Mm 60 80 25 36
Kick out length(Max) Mm 80 120 40 80
P.K.O length(Max) Mm 35 40 19 24
Dies pitch Mm 140 165 60 100
Forging power Kgs 400,000 500,000 120,000 300,000
Products mm Ф33*80L Ф40*120L Ф14*40L Ф24*80L
Output for nut Pcs/min 240 360 200 280
Ram stroke mm 50-90 45-80 60-110 45-80
Main motor Kw 160 220 22 55
Lubrication motor Kw 2.2*2 2.2*2 2.2 2.2*2
lubricant L 1,800 2,000 1,000 1,800
Approx weight Kgs 55,000 90,000 10,000 35,000
Machine dimensions cm 630*320*230 820*380*260 340*210*150 560*300*200
