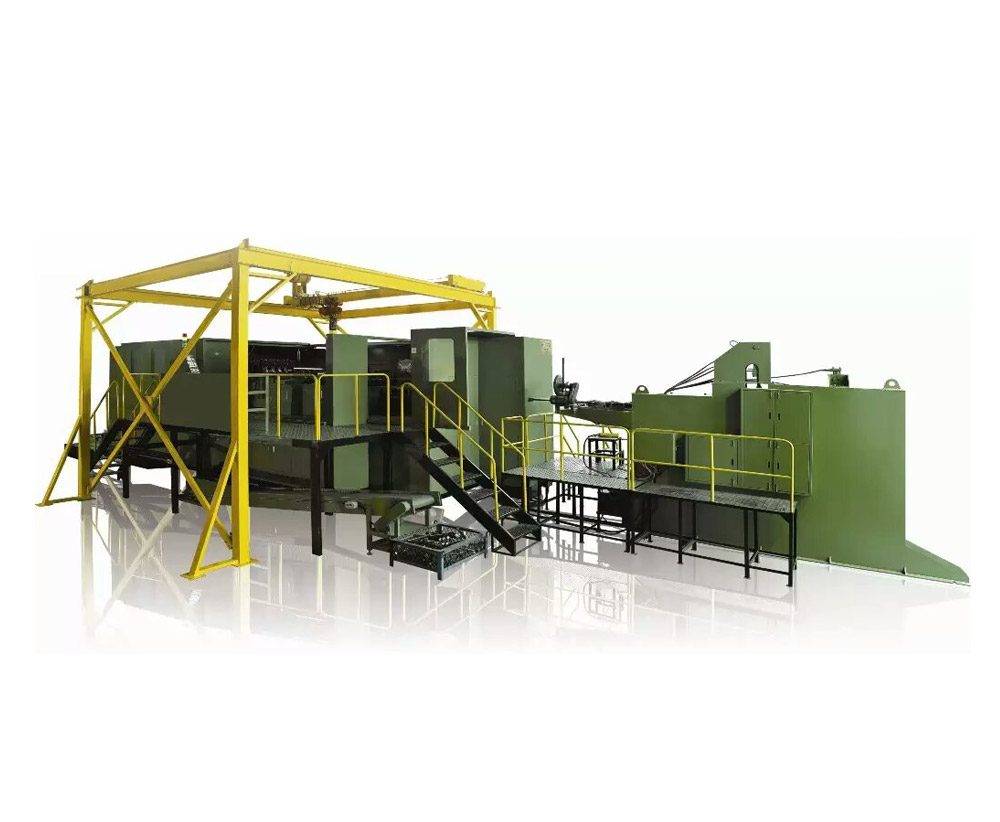

SJBP-165S / SJBP-305L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | SJBP-165S | SJBP-205S | SJBP-205L | SJBP-205LL | SJBP-255L | SJBP-255LL | SJBP-305L |
| Forging station | No. | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Forging force | kgs | 220,000 | 380,000 | 380,000 | 380,000 | 480,000 | 480,000 | 600,000 |
| Max cut-off dia. | mm | Φ18 | Φ23 | Φ23 | Φ23 | Φ32 | Φ32 | Φ36 |
| Max cut-off length | mm | 190 | 195 | 240 | 360 | 380 | 450 | 420 |
| Speed Range | pcs/min | 50-90 | 50-85 | 40-70 | 40-65 | 30-60 | 30-60 | 25-50 |
| P.K.O Stroke | mm | 40 | 50 | 50 | 50 | 50 | 60 | 60 |
| K.O.Stroke | mm | 170 | 180 | 220 | 325 | 320 | 410 | 380 |
| Main slide stroke | mm | 274 | 270 | 346 | 496 | 510 | 620 | 580 |
| Main motor | kw | 55 | 75 | 75 | 75 | 110 | 110 | 132 |
| die size | mm | Φ75*100L | Φ75*120L | Φ75*120L | Φ75*120L | Φ99*150L | Φ99*150L | Φ118*180L |
| Punch die size | mm | Φ75*185L | Φ90*215L | Φ90*215L | Φ90*215L | Φ120*270L | Φ120*270L | Φ140*300L |
| Main die size | mm | Φ108*200L | Φ125*200L | Φ125*240L | Φ125*345L | Φ148*355L | Φ148*450L | Φ168*420L |
| Die pitch | mm | 129 | 140 | 140 | 140 | 160 | 160 | 180 |
| Machine dimension(L*W*H) | cm | 650*340*260 | 720*350*290 | 760*350*300 | 870*340*320 | 1000*460*450 | 1200*470*500 | 1100*490*480 |
| Machine weight (Approx) | kgs | 52,000 | 75,000 | 75,000 | 95,000 | 140,000 | 155,000 | 200,000 |
| Normal bolt size | mm | 10-16 | 12-20 | 12-20 | 12-20 | 16-27 | 16-27 | 18-36 |
| Shank length of blank | mm | 20-160 | 25-152 | 25-210 | 100-305 | 60-310 | 120-390 | 70-370 |
