4030-300/800W/1.5/2.2KW 3-Axis CNC engraving machine
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
◆ The whole steel structure of the bed is welded, the vibration aging treatment, to ensure that the use of deformation. ◆ Y-axis dual-motor drive, selection of matching, to ensure smooth movement. ◆ High-precision rack and pinion drive, high speed, high precision. ◆ Electromechanical excellent design, selection of famous brand electrical accessories, the failure rate to a minimum. ◆ The use of high-power spindle motor, to ensure that the machine can be vigorously cut. ◆ with breakpoints, power continued carving function. ◆ Optional industrial computer, the knife, intelligent hand wheel device.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
◆ The whole steel structure of the bed is welded, the vibration aging treatment, to ensure that the use of deformation. ◆ Y-axis dual-motor drive, selection of matching, to ensure smooth movement. ◆ High-precision rack and pinion drive, high speed, high precision. ◆ Electromechanical excellent design, selection of famous brand electrical accessories, the failure rate to a minimum. ◆ The use of high-power spindle motor, to ensure that the machine can be vigorously cut. ◆ with breakpoints, power continued carving function. ◆ Optional industrial computer, the knife, intelligent hand wheel device.
Contact us
| Model | 3020-300/800W | 4030-300/800W/1.5/2.2KW | 3040-1.5/2.2KW | 4060-1.5/2.2KW |
| Voltage | 220V(110V is operation under 1.5kw，2.2KW is not allowed for 110V) | |||
| Table size | 240x440mm | 540x400mm | 450x480 | 750x500 |
| X/Y/Z Travel | 300x200x100mm | 400x300x100 | 300x400x100 | 400x600x100 |
| Machine size | 450x550x520mm | 650x550x540 | 560x590x540 | 860x650x540 |
| Spindle motor | Air cooling:300W/Water cooling:800W | Air cooling:300W/Water cooling:800W/1.5/2.2KW | Water cooling:1.5/2.2KW | Water cooling:1.5/2.2KW |
| Spindle speed | 12000/24000RPM | 12000/24000RPM | 24000RPM | 24000RPM |
| Spring chuck | ER11 1-7mm chuck used under 1.5kw motor，2.2KW motor machine use ER20 1-13mm chuck | |||
| Step motor | 57 type 3A | 57 type 3A | 57 type 3A | 57 type 3A |
| 57 type 3A | 57 type 3A | 57 type 3A | 57 type 3A | |
| 57 type 3A | Longer 57 type 3A | Longer 57 type 3A | Longer 57 type 3A | |
| 16 Chrome shaft | 20 Chrome shaft | 20 Chrome shaft | 20 Chrome shaft | |
| Moving parts | 16 Chrome shaft | 20 Chrome shaft | 20 Chrome shaft | 20 Chrome shaft |
| 12 Chrome shaft | 12 Chrome shaft | 12 Chrome shaft | 16 Chrome shaft | |
| Drive unit | 1605 Ball screw | 1605 Ball screw | 1605 Ball screw | 1605 Ball screw |

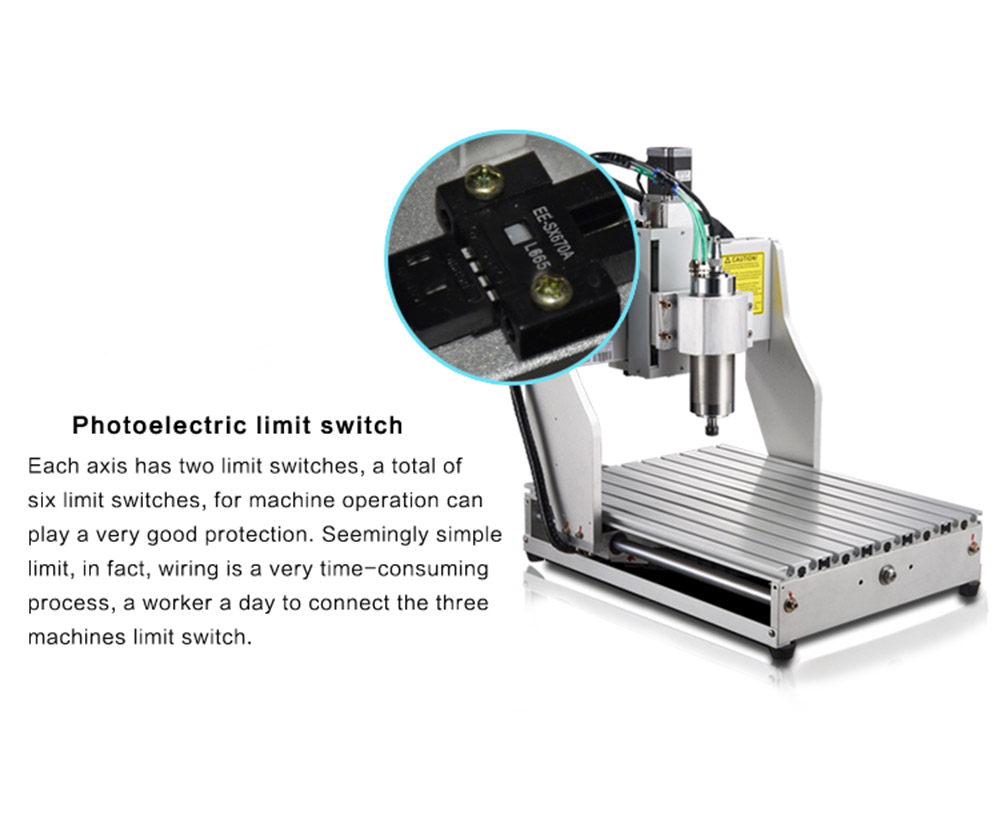

| Limited switch | Total six limited switch | |||
| Positioning precision | 0.02-0.05mm | 0.02-0.05mm | 0.02-0.05mm | 0.02-0.05mm |
| Repeat ability precision | 0.01-0.02mm | 0.01-0.02mm | 0.01-0.02mm | 0.01-0.02mm |
| Machining speed | 0-3500mm/min | |||
| Net/Gross weight | 38/43kg | 52/60/65kg | 65kg | 70kg |
| Packing size | 49x59x60cm | 68x58x62cm | 68x58x62cm | 89x68x62cm |
