TURNNING & MILLING CNC LATHE

Home > Products > METAL > CNC LATHE > TURNNING & MILLING CNC LATHE

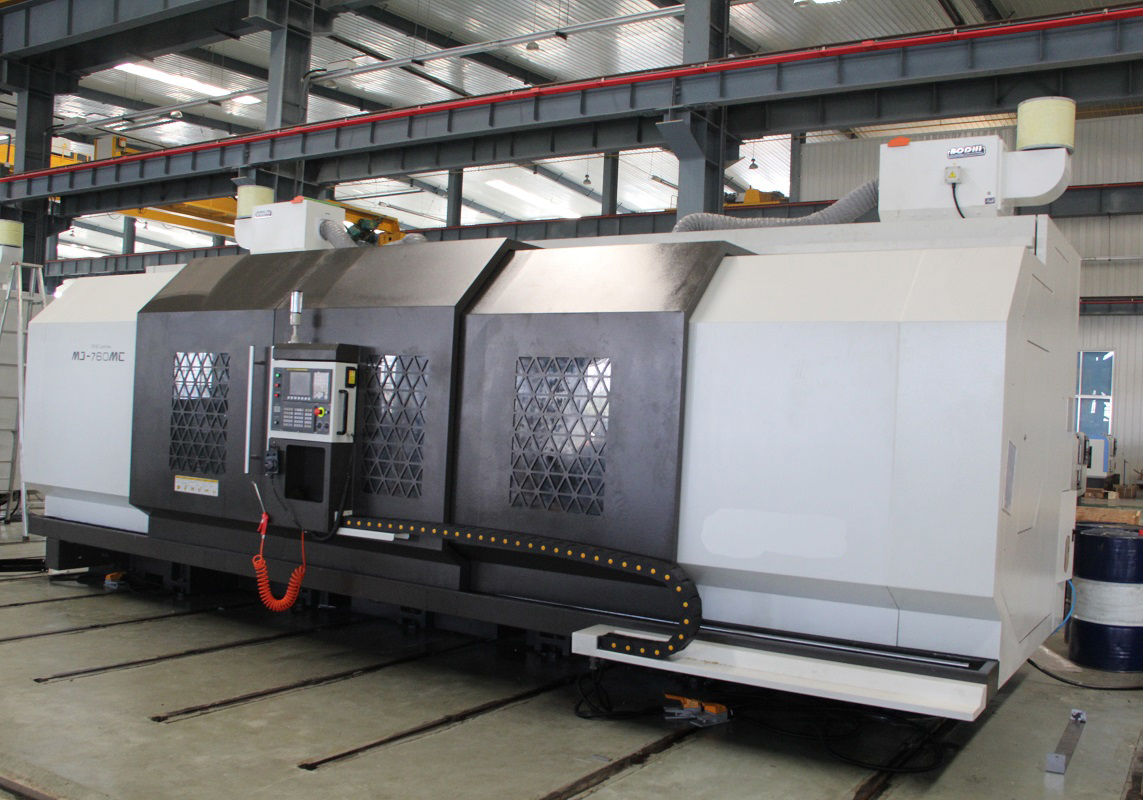

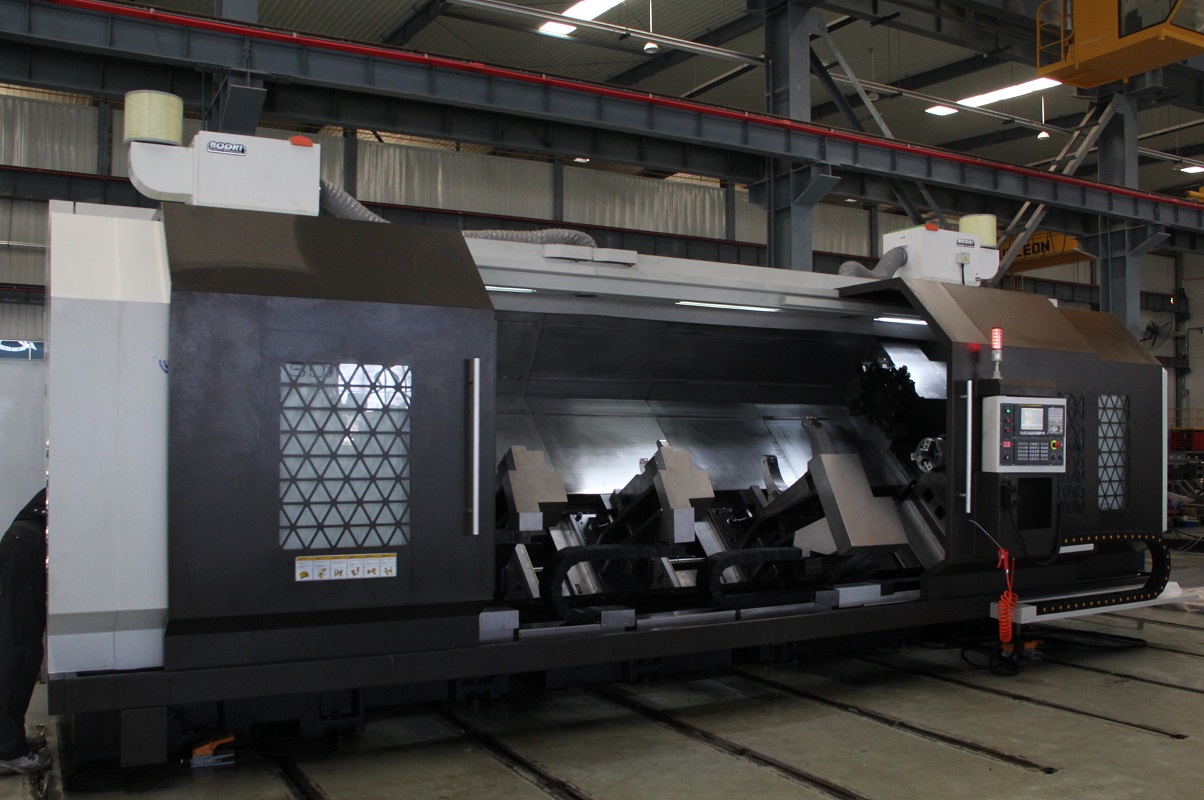

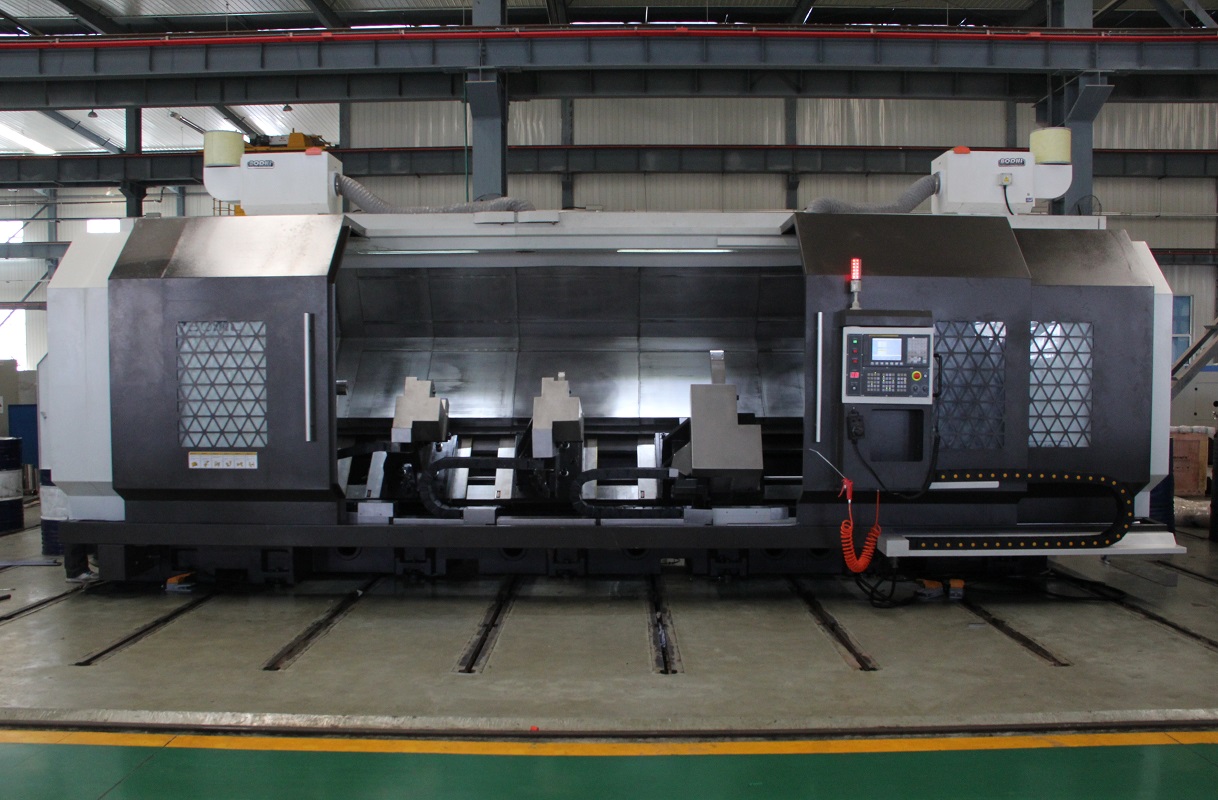

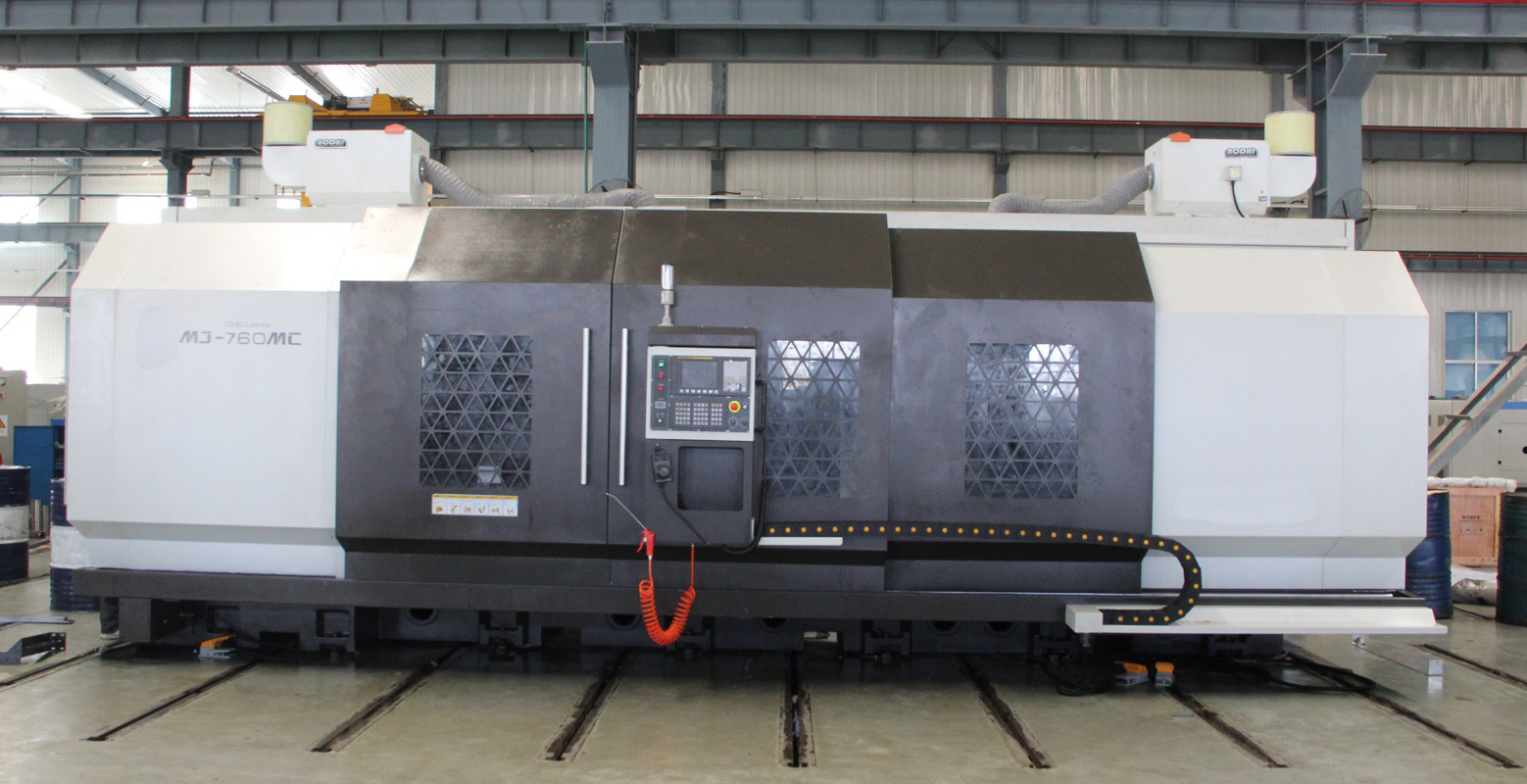

MJ860DT

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW



Contact us
Specifications  MJ860DT
 control  SIEMENS 802 D
 max. turning diameter over bed  860 mm
 max. turning diameter over support  700 mm
 max. workpiece diameter  650 mm
 max. workpiece length 1000/1500/4000
 main motor rating  AC 37 / 45 kW
 spindle  speeds  7-680,27-2000 rpm
 bore in spindle  120 mm
 spindle torque 1096 (Low speed)
 spindle nose ISO  A2 - 11
 travel  X  415 mm
 Z 8,551,555
 rapid feed  X  12 m/min
 Z  15 m/min
 hydraulic jaw chuck diameter  381 mm
 number of tool stations 10
 tool shank size  32 x 32 mm
 boring bar size Ø  50 mm
 tool changer  1.0 sec
 quill diameter  120 mm
 quill stock  100 mm
 tailstock taper  MT 4
 dimensions L x W x H  4630 x 1825 x 2270 mm
 net weight  8800,10000 kg
