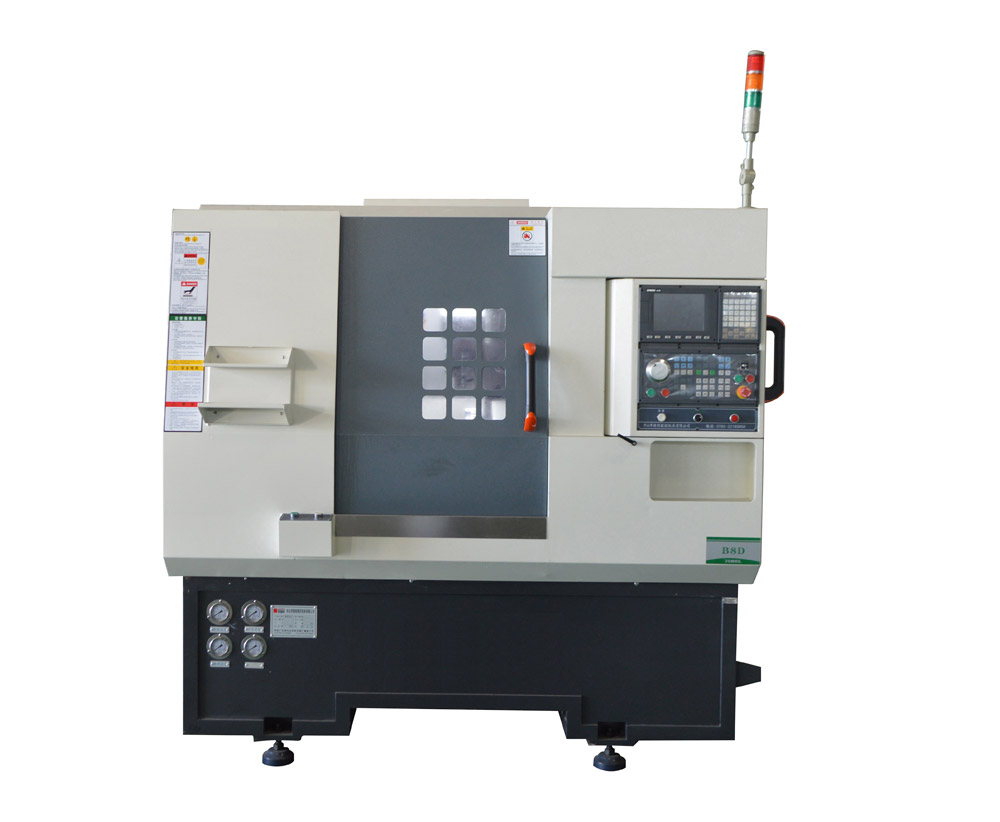

B8D
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

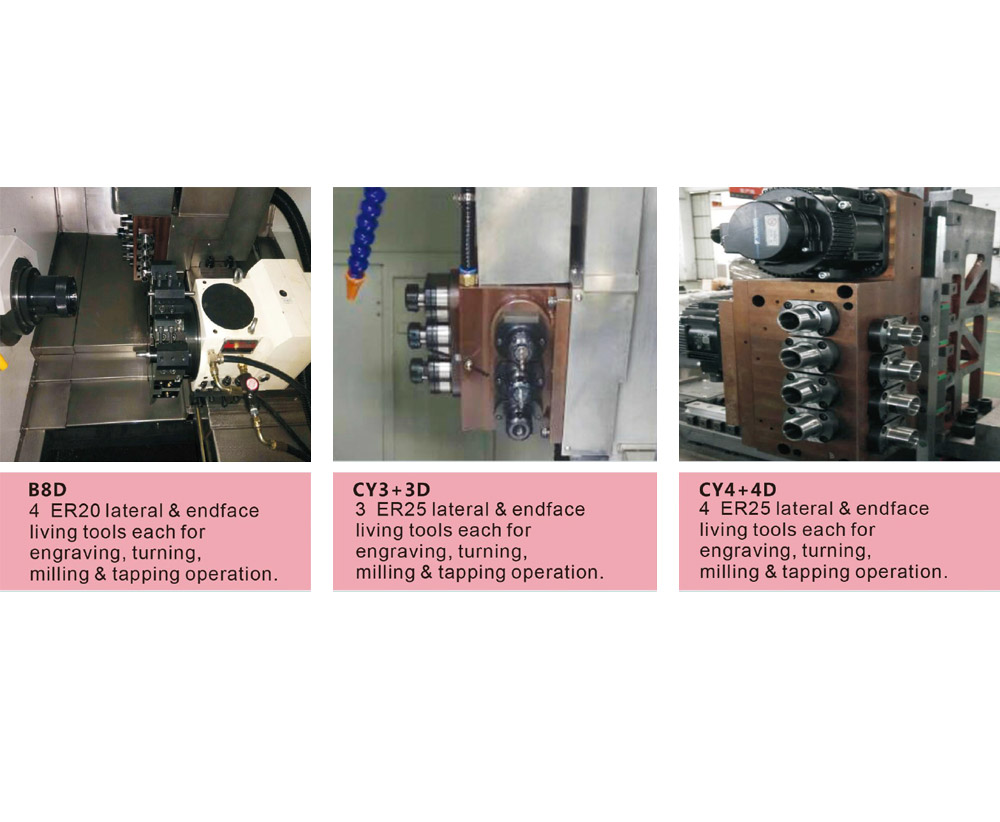

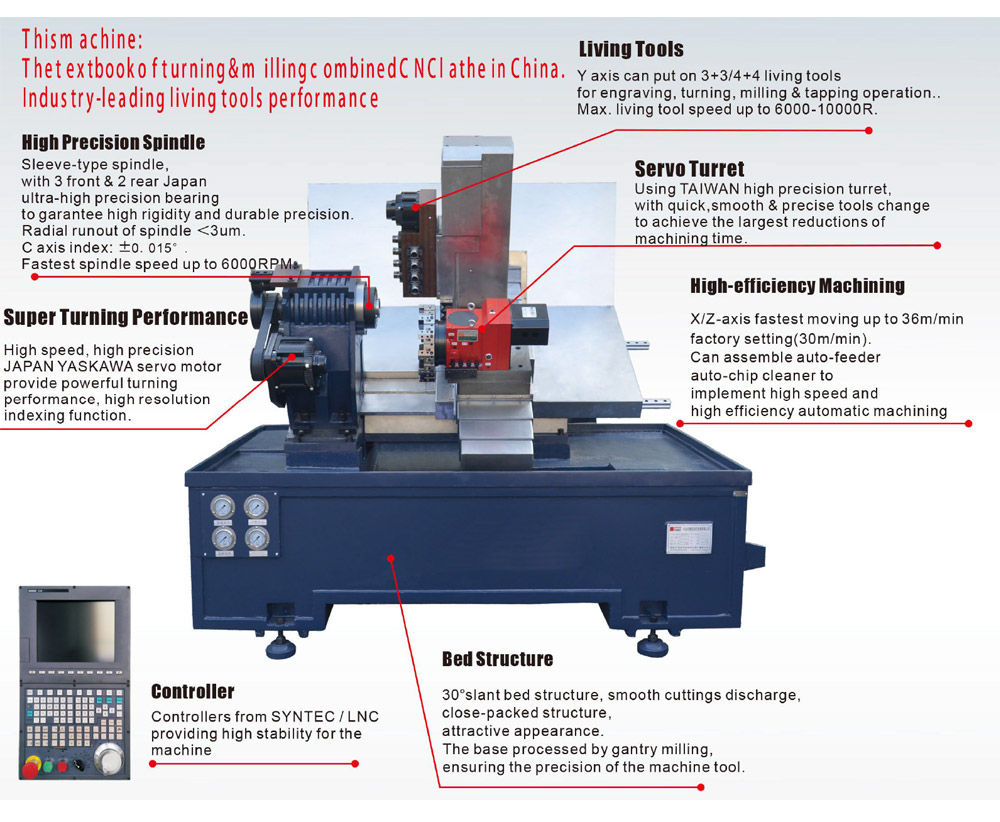

FEATURES: 1. Y-axis has engraving function. 2. This machine is for turning, side milling & drilling. 3. Y-axis has 4 lateral & endface living tools(or 5 +5 optional). 4. Japan gear, low sounds, high precision. 5. Max. living tool speed up to 4500RPM.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
FEATURES: 1. Y-axis has engraving function. 2. This machine is for turning, side milling & drilling. 3. Y-axis has 4 lateral & endface living tools(or 5 +5 optional). 4. Japan gear, low sounds, high precision. 5. Max. living tool speed up to 4500RPM.
Contact us
| Model | Unit | B8D | B10D |
| Spindle bore | mm | φ56 | φ56 |
| Through max. material diameter | mm | φ45 | φ45 |
| Max. machining diameter | mm | φ350 | φ350 |
| Max. length of machining | mm | 200 | 200 |
| Max. travel of X-axis | mm | 720 | 720 |
| Max. travel of Y-axis | mm | 280 | 280 |
| Max. travel of Z-axis | mm | 155 | 155 |
| X/Z/Y-axis fast moving | m | 36/36/20 | 36/36/20 |
| Reposition accuracy | mm | 0.005 | 0.005 |
| Spindle servo motor | kw | 4.4 | 4.4 |
| Spindle speed | r/min | 3000 | 3000 |
| X-axis servo motor | w | 1300 | 1300 |
| Z-axis servo motor | w | 1300 | 1300 |
| Y-axis servo motor | w | 750 | 750 |
| Live tool servo motor | w | 750 | 750 |
| Turret tools | pc | 3-5 | 3-5 |
| Living tools | pc | 2 | 2 |
| Total installed capacity | kw | 7 | 7 |
| N.W Size | mm | 2025x1385x1910 | 2025x1385x1910 |
| Net weight | kg | 2900 | 2900 |
| Controller | LNC / SYNTEC | 5 Series / 6 Series | |
| Spindle | TAIWAN POSA/ TAIWAN ROYAL | Spindle | |
| Servo Turret | X-axis | JAPAN YASKAWA | |
| Z-axis | JAPAN YASKAWA | ||
| Y-axis | JAPAN YASKAWA | ||
| Spindle Servo Motor | JAPAN YASKAWA / Inovance | ||
| Living tool servo motor | JAPAN YASKAWA | ||
| Leadscrew & Guidway | TAIWAN HIWIN / TAIWAN PMI | Level | |
| Bearing | JAPAN NSK / GERMANY FAG | Level | |
