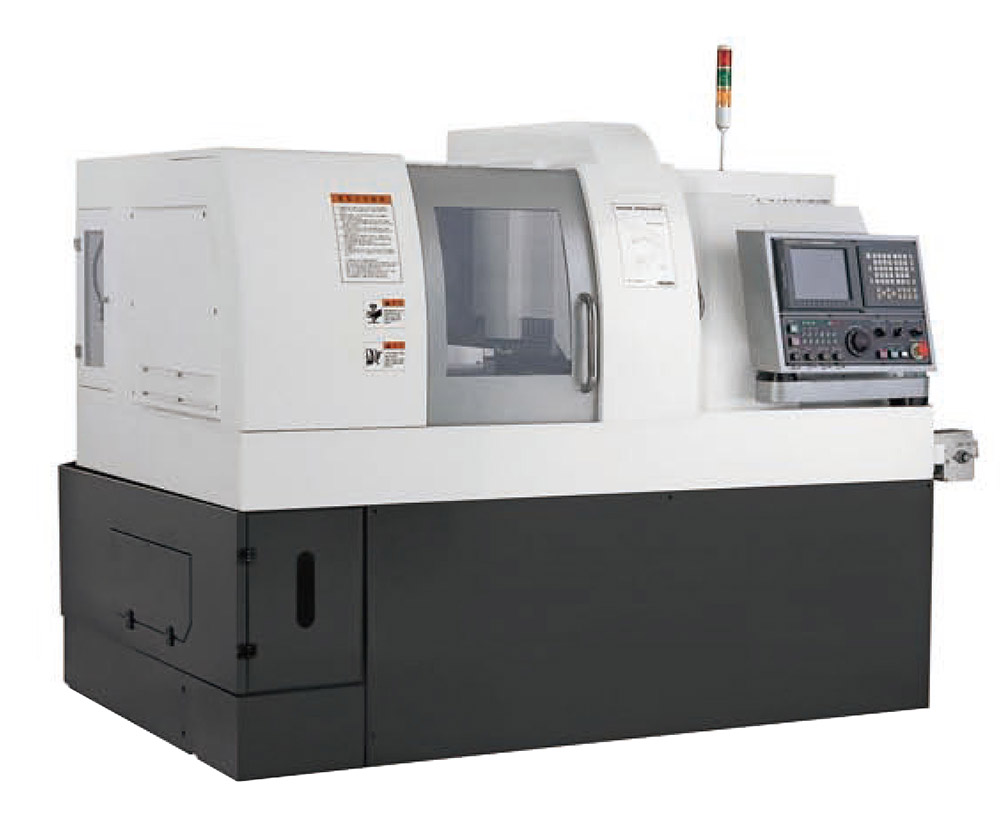

| Itme | SX325 | ||
| Processing Capacity | Maximum rotating speed of spindle | Main-spindle:10000min-1/Sub-spindle:8000min-1 | |
| Maxim turning diameter | φ32mm | ||
| Z-axis stroke | 280mm | ||
| Additional positive brake of spindle | 1/1，000° | ||
| Rapid traverse rate | 32m/min | ||
| Tool storage capacity | Outer annulus lathe tools | 6EA | |
| Non-ratary end face tools | 5EA | ||
| Cross driven tools | 4EA | ||
| Tools for sub-spindle | 4EA | ||
| Eccentricity driven tools for main-spindle | 3EA | ||
| NC | System Model | FANUC 0i-TD two-channel | |
| Number Of Controllable axes/Simultaneously moved axes | 7 axes/4 axes | ||
| LCD screen | 10.4″MONO | ||
| Motor Power | Main-spindle motor | 5.5/7.5KW | |
| Sub-spindle motor | 1.5/2.2KW | ||
| Cross power head motor | 0.55/1.1KW | ||
| Power head for sub-spindle motor | 1.0KW | ||
| Axis servo-motor | 1.0KW | ||
| Coolant tank motor | 0.9KW | ||
| Lubrication oil tank motor | 5W | ||
| Others | Coolant tank capacity | 200L | |
| Lubrication oil tank capacity | 1.8L | ||
| Specifications | Center height | 1,000mm | |
| weight | 3,800kg | ||
| length | 2200mm | ||
| width | 1477mm | ||
| height | 1660mm | ||
| 二、Standard specifications of SX325 CNC system | |||
| Standard FANUC specification | Drill cycling function | ||
| All axis rigid tapping | Software panel | ||
| Hand trace function | English | ||
| Synchronous control | Cutter compensation | ||
| Reiteration control | Backlash, pitch error compensation | ||
| Parallel screw interpolation function | |||
| 三、Standard configuration of SX325 | |||

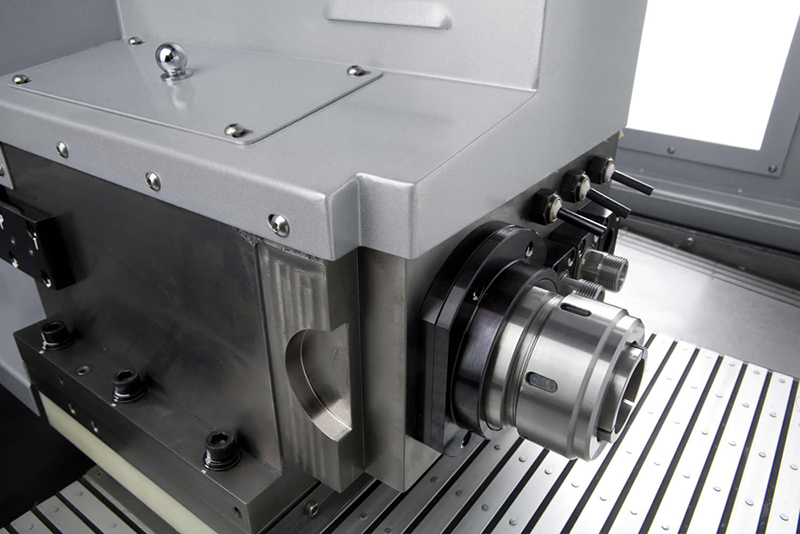

| Synchronous rotary guide bush holder unit | |||

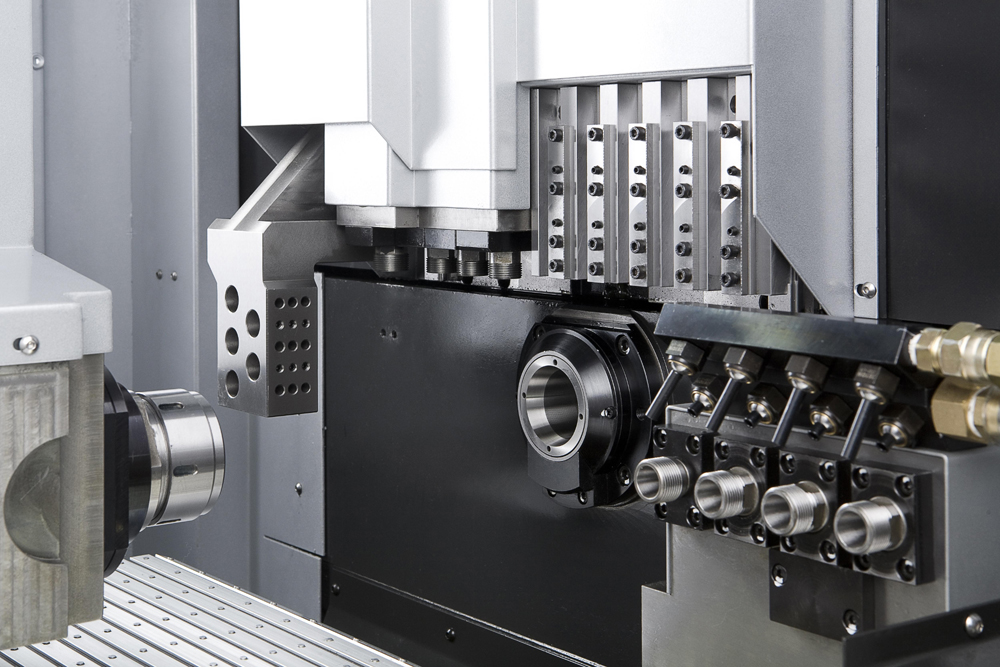

| 4-axis cross driven tools | |||
| 4-axis back end tools | |||
| 3-axis front end tools | |||
| sub-spindle ejector | |||
| Product output device | |||
| Centralized lubricating system | |||
| Product receiver | |||
| Safety door lock | |||
| Handle Trace | |||
| Automatic sources of electricity circut breaker | |||
| chip box, standard tools and tool box | |||
| Rigid tapping on back end tools | |||
| 四、Brand and place of origin of Model SX325 configuration： | |||
| Product name | Brand | Place of origin | Remarks |
| screw | THK | Japan | Precision grinding P4 level |
| Guideway | THK | Japan | Precision C3 level |
| screw bearing | NSK | Japan | Self-adjusting centripetal, level P4 |
| Main-spindle bearing | NSK | Japan | High-speed angular contact bearing, P4 level |
| Power head bearing | NSK | Japan | Angular contact bearing, P4 level |
| Synchronous simultaneous moving axis | THK | Japan | Precision spline shaft |
| Controlling system | FANUC | Japan | FANUC 0i-TD two-channel |
| servo-motor | FANUC | Japan | αeries |
| Servo, system connecting cable | Korea | original imported | |
| relay module | I/O Link | Korea | original imported |
| AC contactor | Shneider | Shanghai | Joint venture |
| circut breaker | Shneider | Shanghai | Joint venture |
| Strong power protection switch | LS | Korea | original imported |
| Flow detection switch | Yi Fumen | Germany | original imported |
| Electric cabinet cooling fan | Korea | original imported | |
