| Item | SM205 | |
| Processing Capacity | Maximum rotating speed of spindle | Main-spindle 12500min-1/ |
| Sub-spindle 10000min-1 | ||
| Maxim turning diameter | φ20 | |
| Z-axis stroke | 260mm | |
| Additional positive brake of spindle | 1/1,000° | |
| Rapid traverse rate | 32m/min | |
| Tool storage capacity | Outer annulus lathe tools | 6pcs |
| Non-ratary end face tools | 5pcs | |
| Cross driven tools | 4pcs | |
| Tools for sub-spindle | 4pcs | |
| Eccentricity driven tools for main-spindle | 2pcs | |
| NC | System Model | Syntec |
| Number Of Controllable axes/Simultaneously moved axes | 7 axes/4 axes | |
| LCD screen | 10.4″MONO | |
| Motor Power | Main-spindle motor | 2.2/3.7KW |
| Sub-spindle motor | 1.5/2.2KW | |
| Cross power head motor | 0.55/1.1KW | |
| Power head for sub-spindle motor | 1.0KW | |
| Axis servo-motor | 0.75KW | |
| Coolant tank motor | 0.4KW | |
| Voltage | 220V 3HP(If the Voltage is 380V 3HP,You need a transformer to change to 220V 3HP) | |
| Others | Coolant tank capacity | 180L |
| Lubrication oil tank capacity | 1.8L | |
| Specifications | Center height | 1,000mm |
| Weight | 3600kg | |
| Size LxWxH | 2560x1300x1660 | |
| Standard specifications of SM205 CNC system | |
| Standard Syntec specification | Drill cycling function |
| All axis rigid tapping | Software panel |
| Hand trace function | English |
| Synchronous control | Cutter compensation |
| Reiteration control | Backlash, pitch error compensation |
| Parallel screw interpolation function | |
| Standard configuration of SM205 |

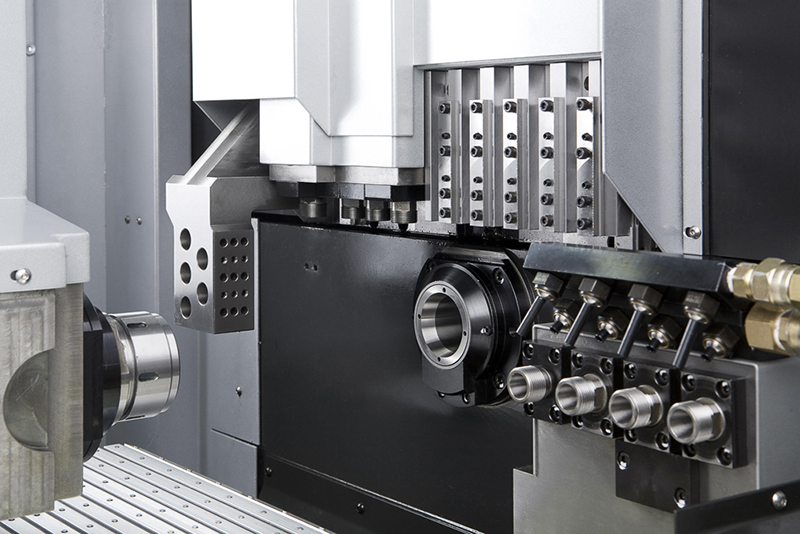

| Synchronous rotary guide bush holder unit |
| 4-axis cross driven tools |
| 3-axis front end tools |
| sub-spindle ejector |
| Product output device |
| Product output device |
| Product receiver |
| Safety door lock |
| Handle Trace |
| Automatic sources of electricity circut breaker |
| chip box, standard tools and tool box |
| Rigid tapping on back end tools |
| Brand and place of origin of SM205 configuration： | |||
| Product name | Brand | Place of origin | Remarks |
| Screw | THK | Japan | Precision grinding P4 level |
| Guideway | THK | Japan | Precision C3 level |
| Screw bearing | NSK | Japan | Self-adjusting centripetal, level P4 |
| Main-spindle bearing | NSK | Japan | High-speed angular contact bearing, P4 leve |
| Power head bearing | NSK | Japan | Angular contact bearing, P4 level |
| Synchronous simultaneous moving axis | THK | Japan | Precision spline shaft |
| Controlling system | Syntec | Taiwan | FANUC 0i-TD two=channel |
| servo-motor | Syntec | Taiwan | α eries |
| Servo, system connecting cable | Korea | original imported | |
| relay module | I/O Link | Korea | original imported |
| relay module | Shneider | Shanghai | joint venture |
| circut breaker | Shneider | Shanghai | joint venture |
| Strong power protection switch | LS | Korea | original imported |
| Flow detection switch | Yi Fumen | Germany | original imported |
| Electric cabinet cooling fan | Korea | original imported | |
