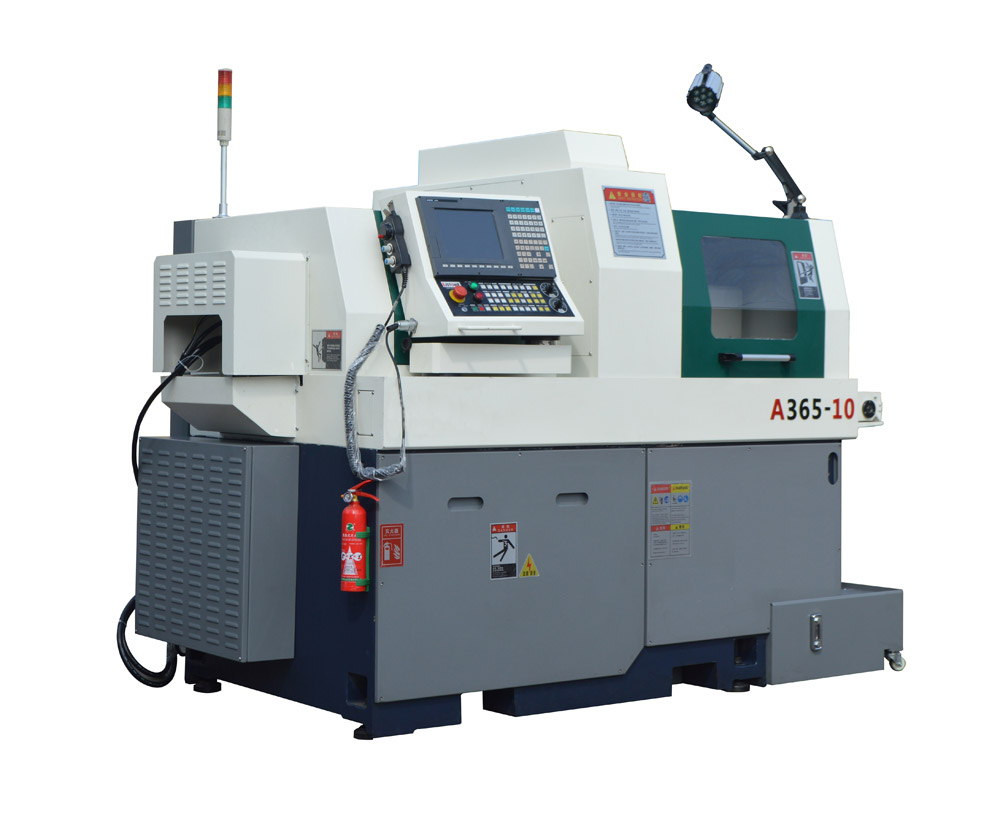

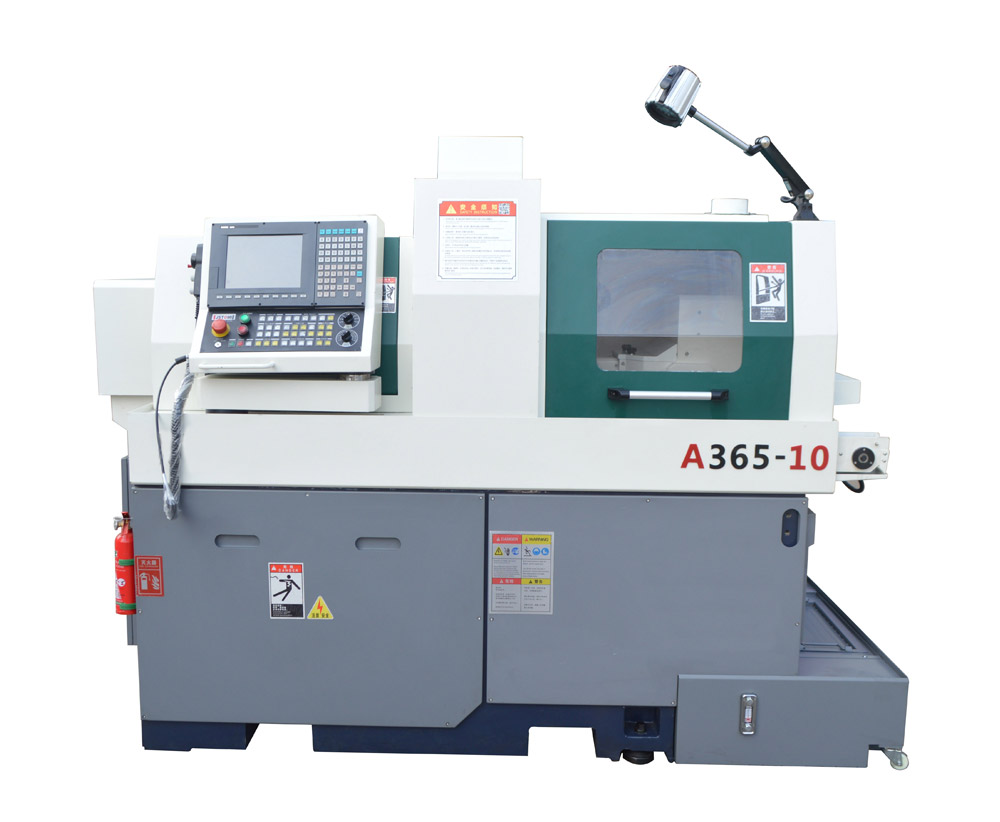

A365-10
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
OUR STRENGTH 1.High-power,fast rapid speed, heavy cutting, multi-function. 2.XYZ axis large inertia servo motor 1300W,850W. 3.Ball screw double nut. 4.Linear guideway wide ≥25mm. 5.Ball screw 12mm pitch. 6.Carriage,living tool and spindle rapid speed ≥30m/min. 7.Ball screw fixed by double bearing holder. 8.Standard S3 living tool (S4,S5 optional), multi-function. 9.Max machining length:230mm. 10.Net weight: 4 ton.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
OUR STRENGTH 1.High-power,fast rapid speed, heavy cutting, multi-function. 2.XYZ axis large inertia servo motor 1300W,850W. 3.Ball screw double nut. 4.Linear guideway wide ≥25mm. 5.Ball screw 12mm pitch. 6.Carriage,living tool and spindle rapid speed ≥30m/min. 7.Ball screw fixed by double bearing holder. 8.Standard S3 living tool (S4,S5 optional), multi-function. 9.Max machining length:230mm. 10.Net weight: 4 ton.
Contact us
| OUR STRENGTH | INTERNATIONAL BRAND | ||
| 1.High-power,fast rapid speed, | 1.Simple,low power, light cutting. | ||
| heavy cutting, multi-function. | 2.XYZ axis small inertia servo | ||
| 2.XYZ axis large inertia servo | motor 1000W,750W. | ||
| motor 1300W,850W. | 3.Ball screw single nut. | ||
| 3.Ball screw double nut. | 4.Linear guideway wide ≤20mm. | ||
| 4.Linear guideway wide ≥25mm. | 5.Ball screw 5-6mm pitch. | ||
| 5.Ball screw 12mm pitch. | 6.Carriage,living tool and spindle | ||
| 6.Carriage,living tool and | rapid speed ≤18m/min. | ||
| spindle rapid speed ≥30m/min. | 7.Ball screw fixed by single bearing holder, | ||
| 7.Ball screw fixed by double bearing holder. | other side fixed by customer themselves. | ||
| 8.Standard S3 living tool (S4,S5 optional), | 8.Only have S3 living tool. | ||
| multi-function. | 9.Machining length ≤90mm. | ||
| 9.Max machining length:230mm. | 10.Net weight: 2 ton. | ||
| 10.Net weight: 4 ton. | |||
| PARAMETERER | |||
| Model | Unit | A365-10 | B365-10 |
| Optional system | JSTOMI ordered controller | JSTOMI ordered controller | |
| Rapid speed | m/min | X-axis 24 Others 36 | X-axis 24 Others 36 |
| S1 spindle clamping diameter | m/min | φ7-φ35 | φ7-φ35 |
| S2 spindle clamping diameter | mm | φ5-φ35 | φ5-φ35 |
| S1 spindle max drilling diameter | mm | φ20 | φ20 |
| S1 spindle max tapping diameter | M12 | M12 | |
| Max lateral drilling hole diameter r | mm | φ10 | φ10 |
| S1/S2 spindle powe | kw | 4.4 | 4.4 |
| S1 max speed | rpm | 6000 | 6000 |
| S2 max speed | rpm | 6000 | 8000 |
| C1/ C2 indexing | ±0.015 | ±0.015 | |
| No sleeve & Movable sleeve | mm | S1 without sleeve 280, with sleeve 230. S2 230 | S1 without sleeve 280, with sleeve 230. S2 230 |
| Cutting tools | mm | 5x16x16 or 6x12x12 | 5x16x16 or 6x12x12 |
| S3 lateral power tools | w | 5xER16 | 5xER16 |
| S3 lateral power tools Max speed | rpm | 3000 | 3000 |
| S3 motor power | w | 1000 | 1000 |
| S4 lateral power tools | w | 3* fixed tool ER16 + 3* power tool ER16 | 3* fixed tool ER16 + 3* power tool ER16 |
| S4 lateral power tools Max speed | rpm | 6000 | 6000 |
| S4 motor power | w | 1000 | 1000 |
| S5 lateral power tools | 5* fixed tool ER16 + 3* power tool ER16 | 5* fixed tool ER16 + 3* power tool ER16 | |
| S5 max drilling diameter | mm | φ10 | φ10 |
| S5 Max. tapping diameter | M8 | M8 | |
| S5 lateral tools Max speed | rpm | 3000 | 3000 |
| S5 motor power | w | 450 | 450 |
| Y1/Z1 servo motor power | w | 850 | 850 |
| X1 servo motor power | w | 1300 | 1300 |
| X2/Z2 servo motor power | w | 850 | 850 |
| Dimension Size( L x W x H ) | mm | 2300x1300x1800 | 2300x1300x1800 |
| N.W | kg | 3800 | 3800 |
