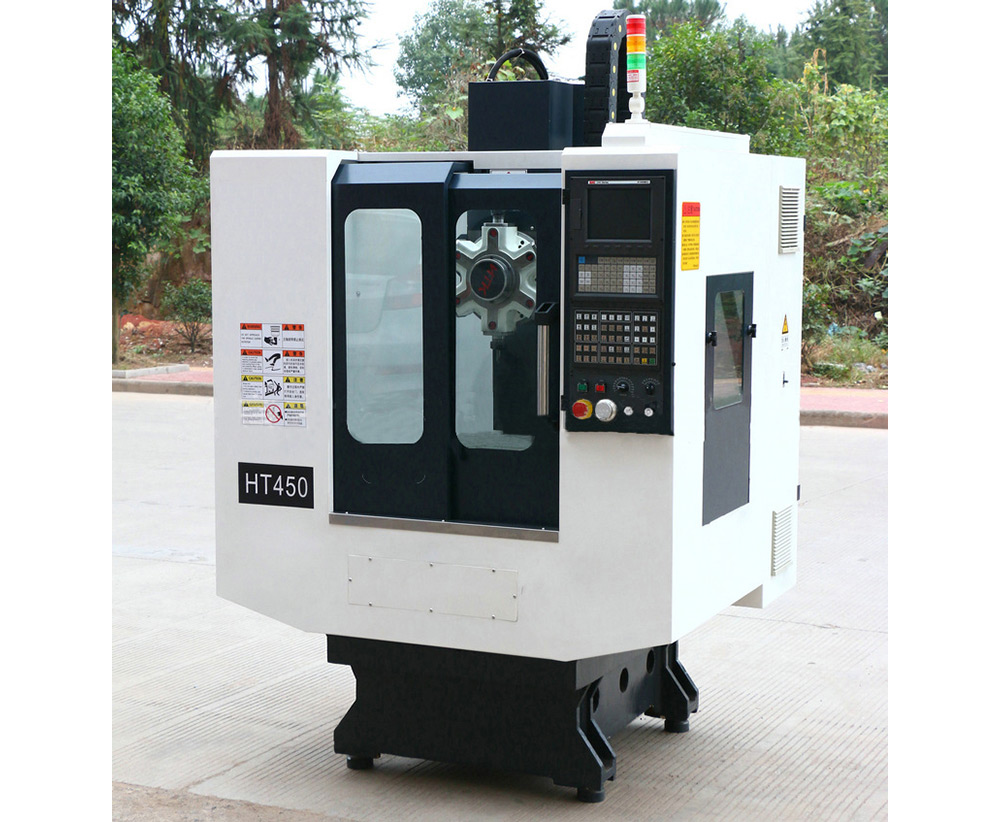

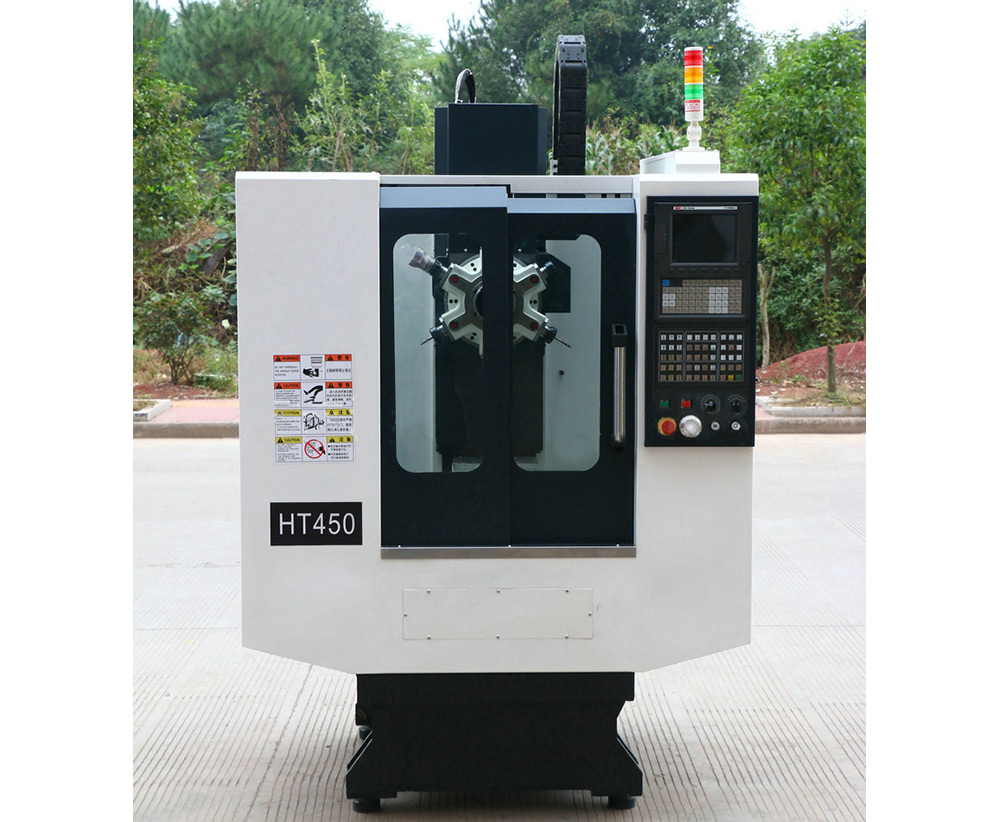

HT450 DRILLING TAPPING MACHINE CENTER
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

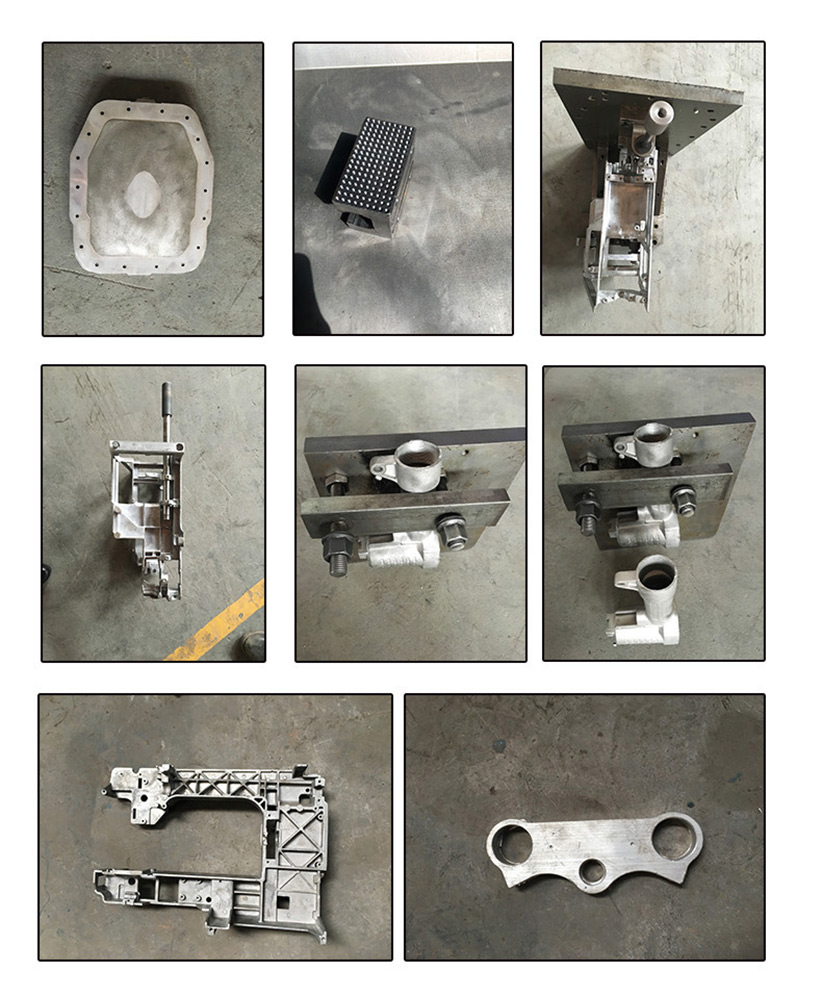

The machine adopts high-speed tool change turret, Tool to tool in 1.2 second. compact design, fast tool change speed, high processing efficiency and space saving. It is especially suitable for small parts such as automobile and motorcycle parts, power tools, valves, etc. , efficient processing of the attack. High speed turret Adopting proprietary technology, full servo motor control, hydraulic pressure locking, core bearings and transmission components are all world-renowned brand products, breaking through the similar products, such as low spindle speed, poor rigidity and small main power.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
The machine adopts high-speed tool change turret, Tool to tool in 1.2 second. compact design, fast tool change speed, high processing efficiency and space saving. It is especially suitable for small parts such as automobile and motorcycle parts, power tools, valves, etc. , efficient processing of the attack. High speed turret Adopting proprietary technology, full servo motor control, hydraulic pressure locking, core bearings and transmission components are all world-renowned brand products, breaking through the similar products, such as low spindle speed, poor rigidity and small main power.
Contact us

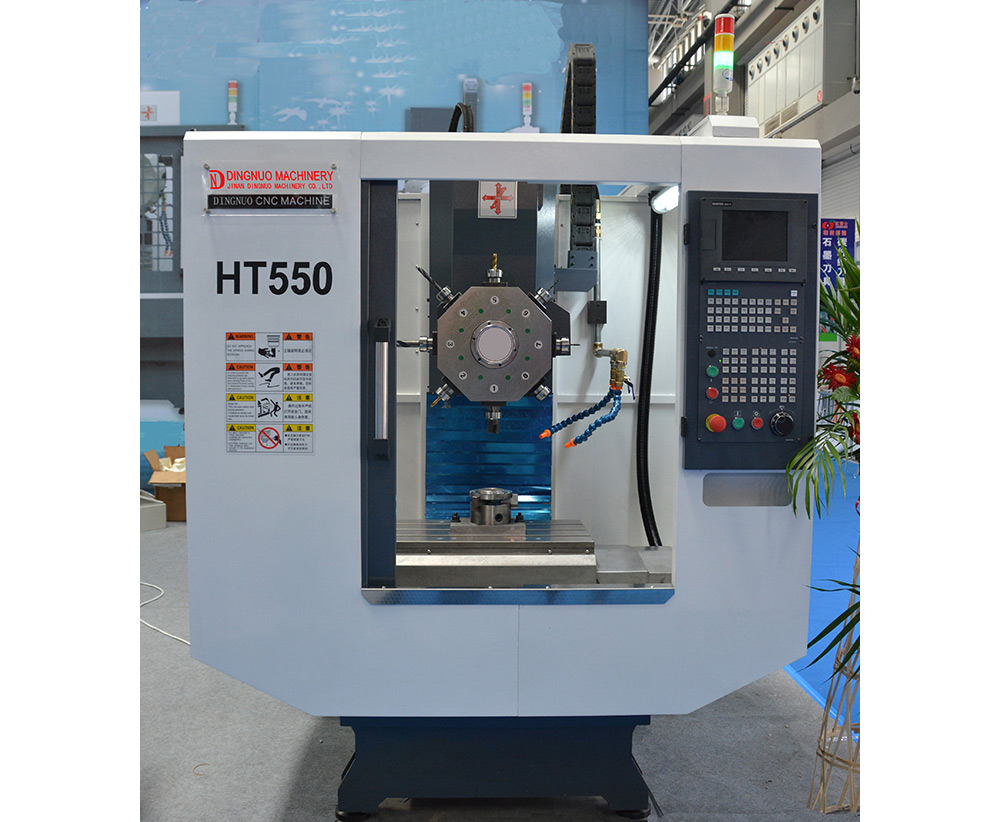

| Model | HT450 | HT550 | ||
| Stroke | X-Axis Travel | MM | 450 | 550 |
| Y-Axis Travel | MM | 300 | 350 | |
| Z-Axis Travel | MM | 350 | 350 | |
| Distance | Spindle nose to table | MM | 140-500 | 140-500 |
| Spindle center to Z-rail | MM | 365 | 365 | |
| Table | Table size | MM | 500X350 | 600*350 |
| T-slot | MM | 3X14X92 | 14*3*92 | |
| Maximum table load | Kg | 180 | 250 | |
| Spindle | Spindle type | ER32 | ER32 | |
| Spindle speed | RPM | 6000 (Option 8000) | 6000 (Option 8000) | |
| Tapping speed | RPM | 1500 | 1500 | |

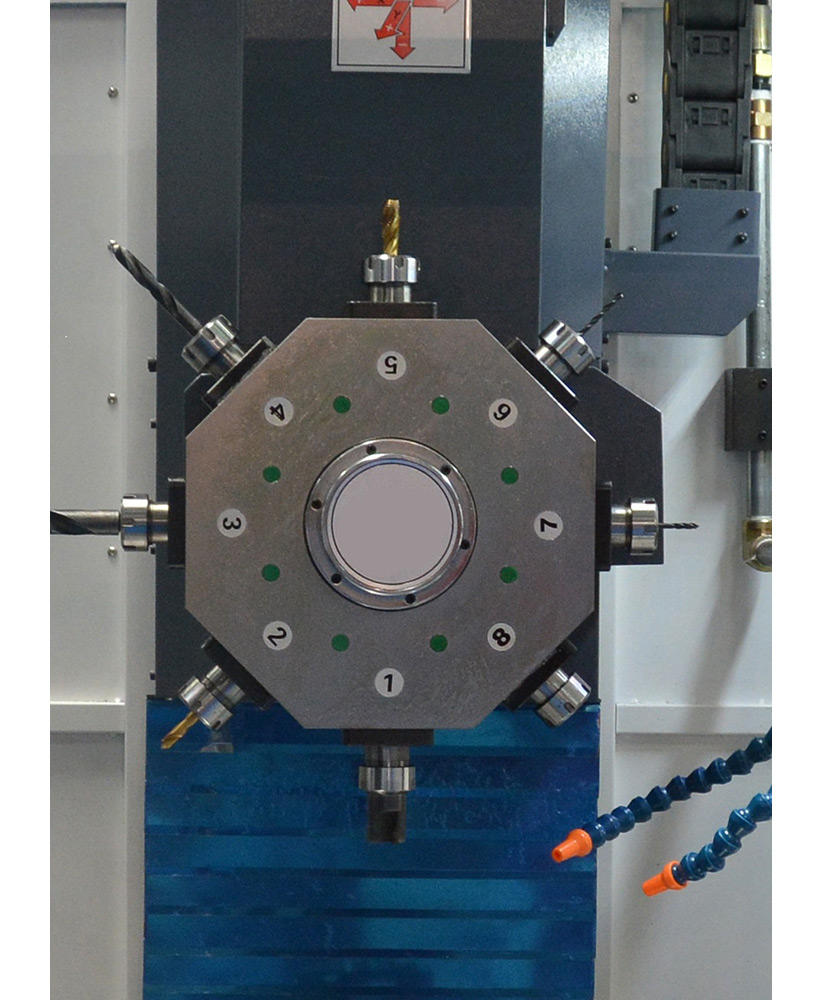

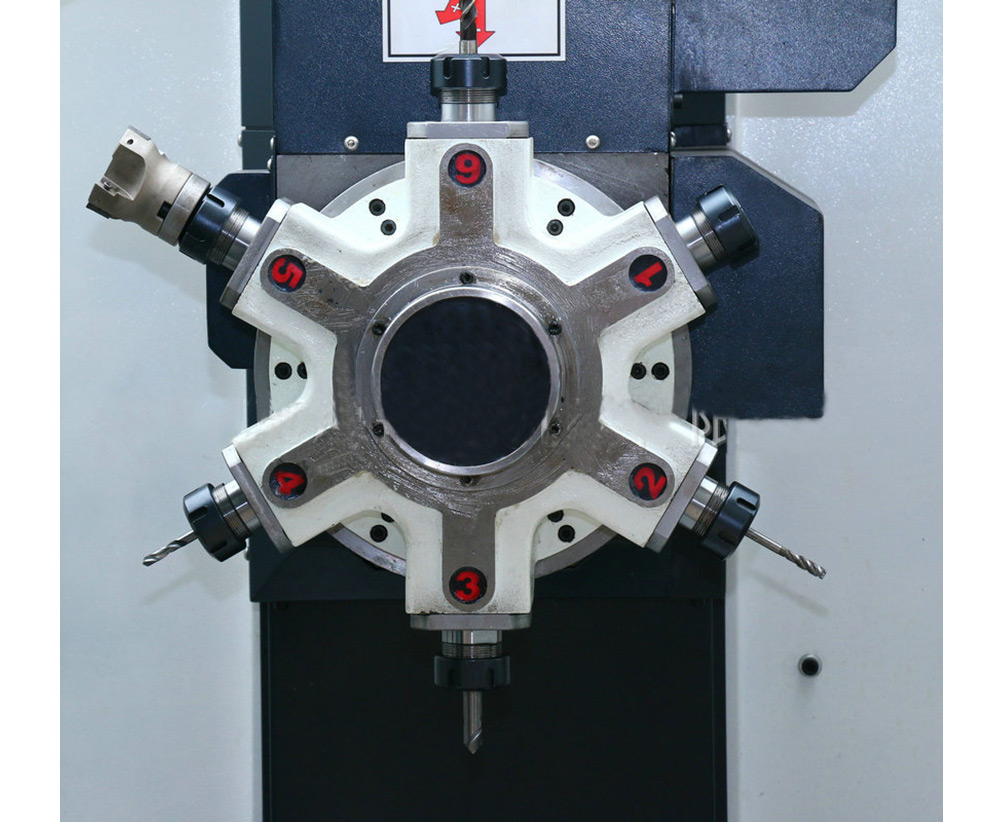

| Turret | Tool number | T | 6 (Option 8) | 6 (Option 8) |
| Tool change type | Turret turn | Turret turn | ||
| Tool to Tool | SEC | 1.2 | 1.2 | |
| Feed | X.Y,Z axis rapid feed rate | M/min | 32 | 32 |
| Cutting feed rate | M/min | 1月12日 | 1月12日 | |
| Accuracy | Positioning accuracy | MM | 0.012/3000 | 0.012/3000 |
| Repeat positioning accuracy | MM | 0.005 | 0.005 | |
| Turret accuracy | MM | ±0.006 | ±0.006 | |
| Machining capacity | Drilling | MM | Φ25 | Φ25 |
| Tapping | MM | M16 | M16 | |
| Boring | MM | Φ60 | Φ60 | |
| Milling | MM | Φ63 | Φ63 | |
| Slotting | MM | Φ12 | Φ12 | |
| Spindle motor | KW | 3.7/5.5 | 3.7/5.5 | |
| Motor | Feeding motor | KW | 1.5, 2(Z) | 1.5, 2(Z) |
| Turret motor | KW | 0.55 | 0.55 | |
| Cooling motor | KW | 0.12 | 0.12 | |
| Machine | Approximate weight | Kg | 1650 | 1850 |
| Floor space measurement | MM | 1500x1500x2100 | 1580*1800*2100 |
