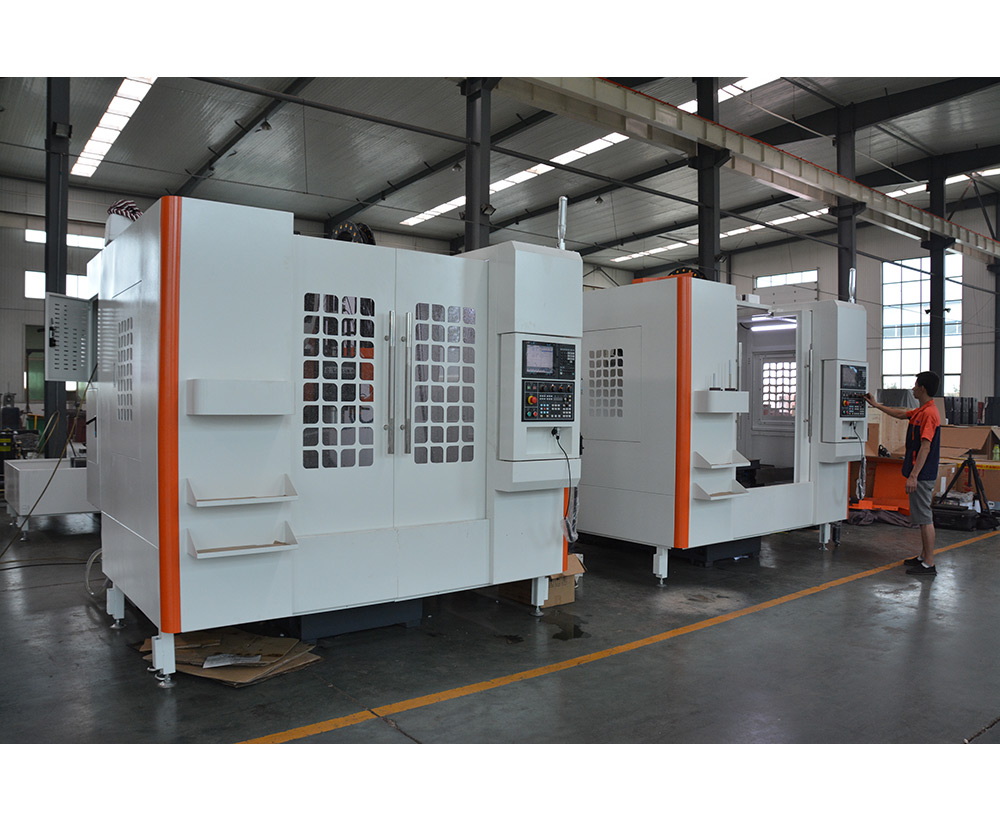

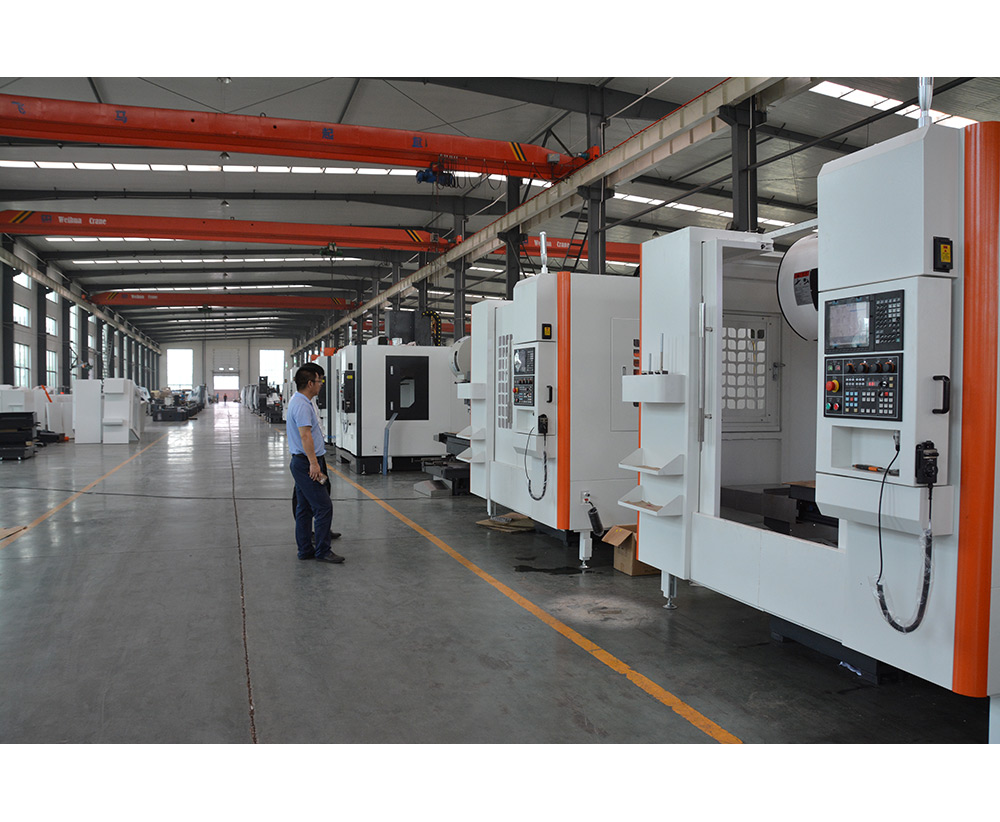

MV 850L Vertical machine center
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

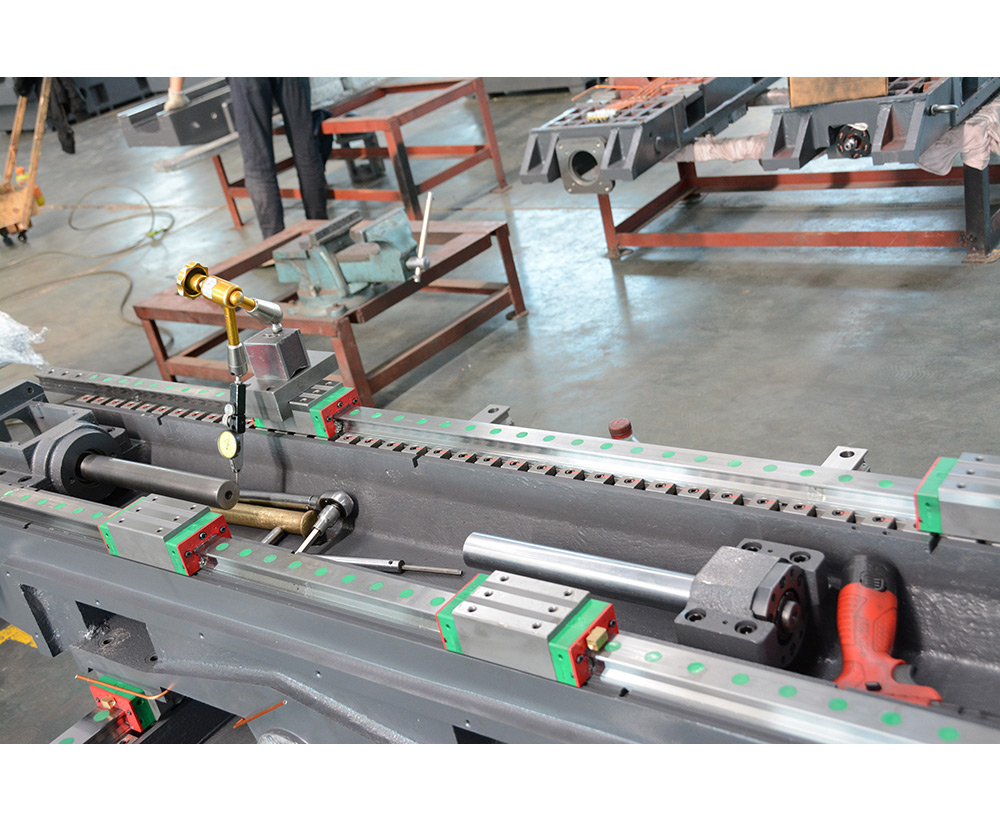

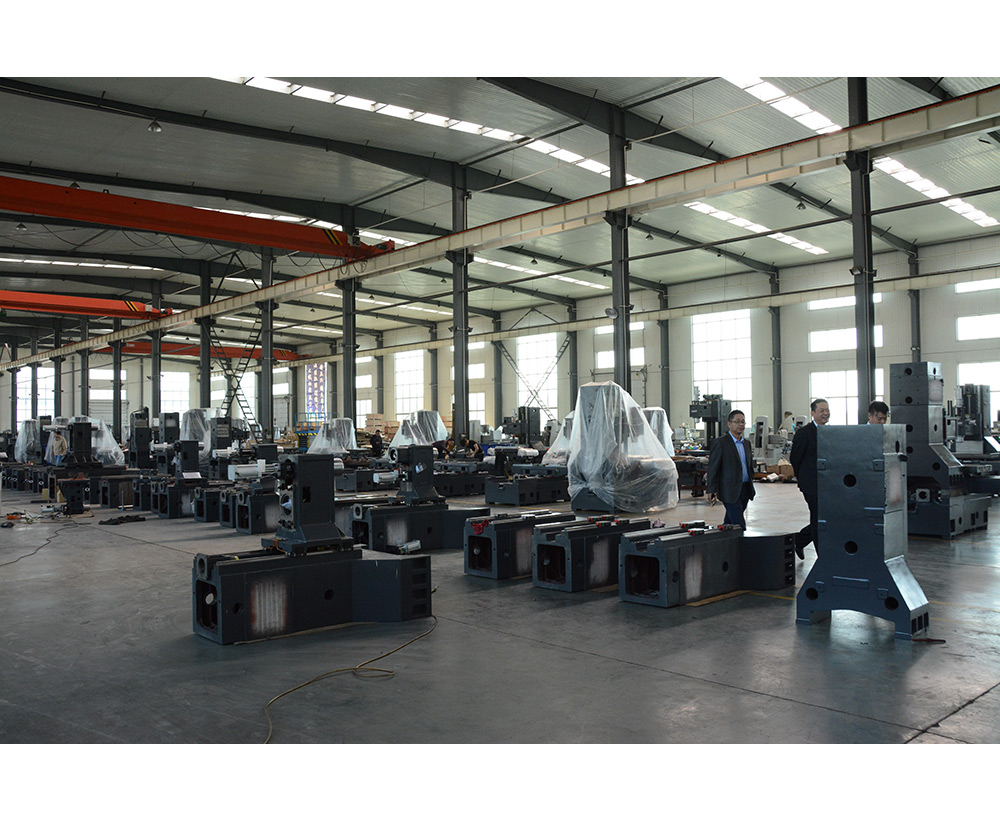

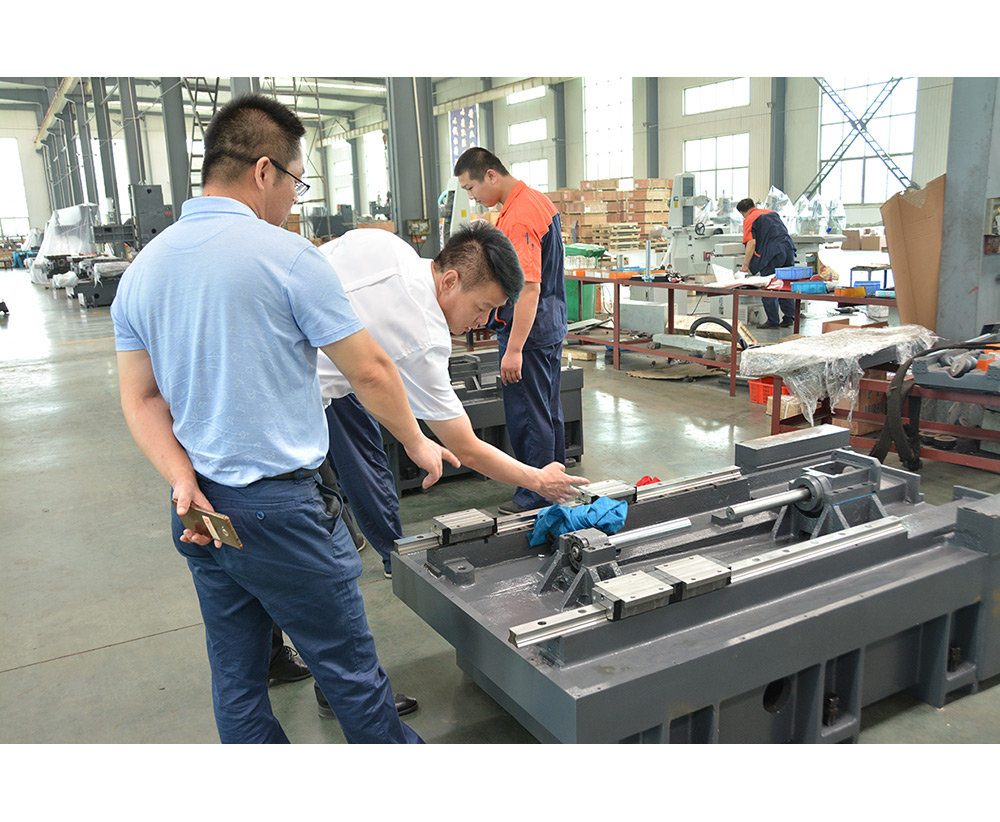

Innovative design with versatile models: A: 2 axis linear guides. B: 1 axis hard Box slideways . C: Combined design with box slideway column Efficient tool changer All major structural components are made from High quality cast iron to ensure consistent homogenous castings Versatile heavy duty spindle Versatile slide ways for optional dynamic stiffness Superior structure stiffness with the optional rail spacing 700 mm supports the long table at the travel end of X axis movement High pressure coolant flushing away the swarf from the bottom guarding assures optimal chip disposal efficiency during machining
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Innovative design with versatile models: A: 2 axis linear guides. B: 1 axis hard Box slideways . C: Combined design with box slideway column Efficient tool changer All major structural components are made from High quality cast iron to ensure consistent homogenous castings Versatile heavy duty spindle Versatile slide ways for optional dynamic stiffness Superior structure stiffness with the optional rail spacing 700 mm supports the long table at the travel end of X axis movement High pressure coolant flushing away the swarf from the bottom guarding assures optimal chip disposal efficiency during machining
Contact us
| Model | MV-650L | MV-850L | MV-1060L | ||
| Worktable | Table size/(L*W) | mm | 800X500 | 1000X500 | 1300X600 |
| T-slot size/mm | 3-18-44 | 5-18-90 | 5-18-100 | ||
| Max load on the table/kg | Kg | 350 | 450 | 800 | |
| Travel | Max. X/Y/Z axis travel | mm | 600/500/500 | 800/500/500 | 1000/600/600 |
| Spindle nose to table surface | mm | 110-610 | 110-610 | 70-670 | |
| Spindle nose to column surface | mm | 560 | 560 | 655 | |
| Spindle | Spindle taper | BT-40 | BT-40 | BT-40 | |
| Max. Spindle speed | rpm | 8000/10000 | 8000/10000 | 8000/10000 | |
| Feeding | Max cutting feed rate | mm/min | 1-12000 | 1-12000 | 1-12000 |
| X,Y,Z rapid traverse | m/min | 30/30/20 | 30/30/20 | 24/24/20 | |
| Accuracy | Positioning accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Repeat positioning accuracy | mm | ±0.0025 | ±0.0025 | ±0.0025 | |
| A.T.C | Tool magazine type | Hat type/ Disc type(Operation) | |||
| Tool Magazine capacity | 16/24 | 16/24 | 20/24 | ||
| Max. tool diameter and length | mm | Φ150x250 | Φ150x250 | Φ150x250 | |
| Max. tool weight | kg | 8 | 8 | 8 | |
| Tool shank type | BT-40 | BT-40 | BT-40 | ||
| Servo Motor | Spindle motor | Kw | 5.5(β 8) | 7.5(β 8) | 11(β 12) |
| X/Y/Z axis servo motor (Mitsubishi) | Kw | 2002/2/2 | 2002/2/2 | 2002/2/2 | |
| X/Y/Z axis servo motor (Fanuc) | Kw | β12/β12/β12 | β12/β12/β12 | β22/β22/β22 | |
| General | Air Requirements | Kg/cm² | ≥6 | ≥6 | ≥6 |
| Power Capacity | KVA | 15 | 20 | 20 | |
| Measurement(LxWxH) | m | 2.6x2.3x2.5 | 2.7x2.4x2.6 | 3.2x2.7x2.95 | |
| N.W. | Kg | 5000 | 5500 | 8000 | |
| Control | Mitsubishi, Siemens or Fanuc | ||||
