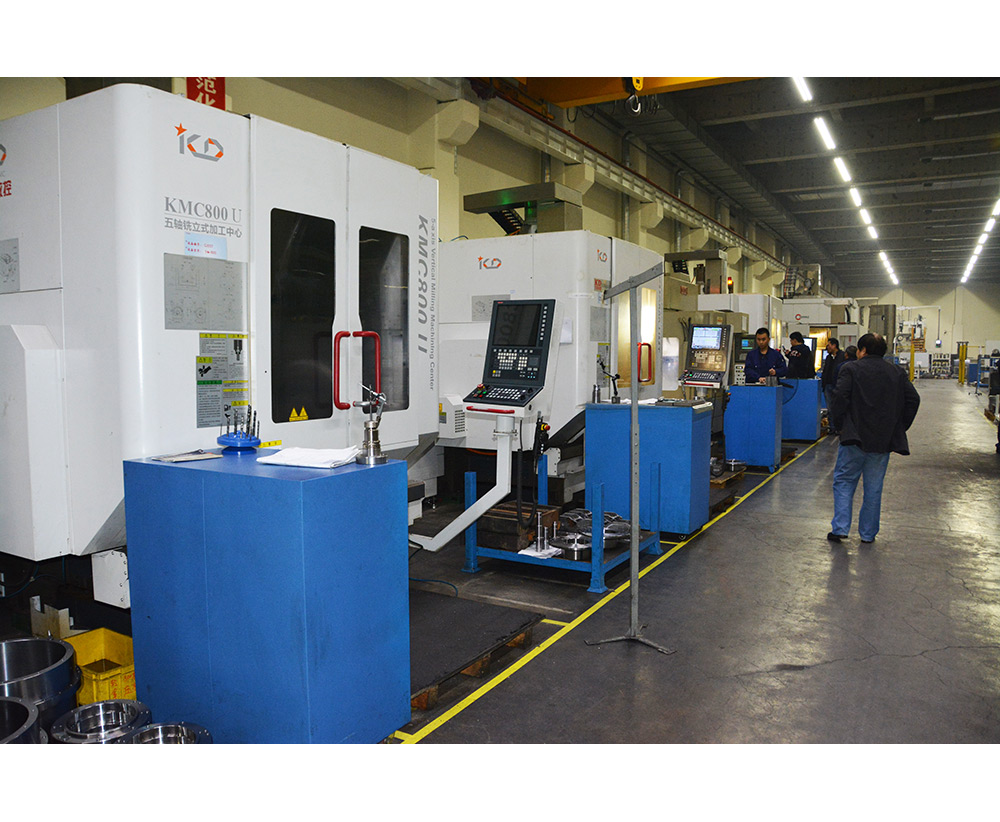

KMC800-U (5 axis)
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

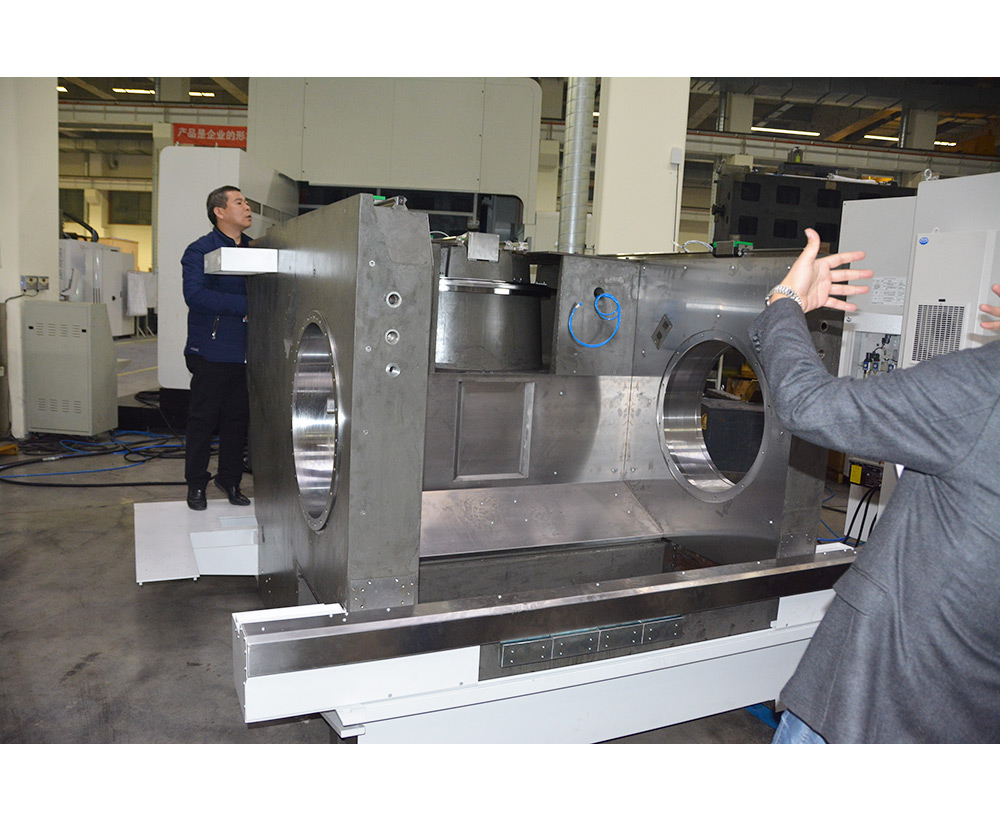

Based on a compact Gantry-type design, this series offers all benefits of a high-capacity 5-axis machining center The machine frame is made of high-end mineral-casting featuring all known benefits of this premium material, including virtually perfect vibration dampening and high thermal stability High-quality linear guides and preloaded ball screws on X, Y, and Z axis for maximum precision, low maintenance and wear-resistance Y-travel driven with two synchronised servomotors Fast feeds and rapid feeds up to 48 m/min (optionally up to 60 m/min), and axis acceleration up to 1 g for maximum metal removal rates Tool changer is integrated in the machine column NC rotatary table is solidly supported at 2 points inside the gantry and swivels up to 260°on A axis and 360°on C axis Wide jaw opening with large work space accommodates large workpieces during swiveling Solid construction and bilateral torsion-free drive accommodate high workpiece weights Turning and swiveling axis are close at the workpiece The T-Series C axis also features fully integrated turning technology for high precision milling and turning Swiveling and rotary table feature a powerful motor, allowing the C axis to perform demanding combinations of turning and milling operations Reduced machining time, increased quality through accuracy and increased flexibility Turning operations can be performed with a swiveled axis, opening doors to new machining possibilities
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Based on a compact Gantry-type design, this series offers all benefits of a high-capacity 5-axis machining center The machine frame is made of high-end mineral-casting featuring all known benefits of this premium material, including virtually perfect vibration dampening and high thermal stability High-quality linear guides and preloaded ball screws on X, Y, and Z axis for maximum precision, low maintenance and wear-resistance Y-travel driven with two synchronised servomotors Fast feeds and rapid feeds up to 48 m/min (optionally up to 60 m/min), and axis acceleration up to 1 g for maximum metal removal rates Tool changer is integrated in the machine column NC rotatary table is solidly supported at 2 points inside the gantry and swivels up to 260°on A axis and 360°on C axis Wide jaw opening with large work space accommodates large workpieces during swiveling Solid construction and bilateral torsion-free drive accommodate high workpiece weights Turning and swiveling axis are close at the workpiece The T-Series C axis also features fully integrated turning technology for high precision milling and turning Swiveling and rotary table feature a powerful motor, allowing the C axis to perform demanding combinations of turning and milling operations Reduced machining time, increased quality through accuracy and increased flexibility Turning operations can be performed with a swiveled axis, opening doors to new machining possibilities
Contact us
| Model | KMC 400UMT | KMC 800UMT |
| Working area | ||
| A axis swivel range | -130° bis +130° | -130°bis +130° |
| C axis swivel range | 360° | 360° |
| Table dimensions | 370x370 mm | 800 mm |
| Table load capacity (max.) | 350 kg | 750 kg |
| Number of T-slots | 8 Pieces | 16 Pieces |
| Spindle nose-to-table surface distance | 144 - 490 mm | 140 - 680 mm |
| Throat | 350 mm | 800 mm |
| Workpiece diameter | 530 mm | 1.100 mm |
| Milling diameter X-axis | 350 mm | 800 mm |
| Milling diameter Y-axis | 350 mm | 800 mm |
| Cutting height Z axis | 350 mm | 500 mm |
| Travels | ||
| Travel X-axis | 350 mm | 800 mm |
| Travel Y-axis | 350 mm | 800 mm |
| Travel Z-axis | 346 mm | 550 mm |
| Headstock | ||
| Spindle speed | 18.000 rpm | 12.000 rpm |
| Spindle mount | HSK-A50 | HSK-A50 |
| A axis | ||
| Torque | 689 Nm | 5.400 Nm |
| Braking torque | 500 Nm | 7.500 Nm |
| C axis | ||
| Torque | 315 Nm | 1.240 Nm |
| Braking torque | 500 Nm | 5.000 Nm |
| Milling speed | 100 rpm | 75 rpm |
| Turning speed | 1.000 rpm | 650 rpm |
| Rapid feed | ||
| Rapid feed | 48.000 mm/min | 48.000 mm/min |
| Feed | ||
| Work feed | 10.000 mm/min | 10.000 mm/min |
| Tool head | ||
| Number of tool stations | 22 Pieces | 36 Pieces |
| Tool size ¢ x L (max.) | 90x230 mm | 125x300 mm |
| Tool weight max. | 5 kg | 16kg |
| Tool-changing time chip/chip | 5 s | 8 s |
| Tool-change time tool/tool | 3 s | 4.5 s |
| Accuracies | ||
| Positioning accuracy X-axis | 5 µm | 5 µm |
| Positioning accuracy Y-axis | 5 µm | 5 µm |
| Positioning accuracy Z-axis | 5 µm | 5 µm |
| Positioning accuracy A axis | 0,004° | 0,004° |
| Positioning accuracy C axis | 0,004° | 0,004° |
| Repeatability X-axis | 3 µm | 3 µm |
| Repeatability Y-axis | 3 µm | 3 µm |
| Repeatability Z-axis | 3 µm | 3 µm |
| Repeatability A axis | 0,002° | 0,002° |
| Repeatability C axis | 0,002° | 0,002° |
| Drive capacity | ||
| Motor rating main drive | 16 kW | 30 kW |
| Motor rating coolant pump | 4 kW | 4 kW |
| Motor rating X-axis | 5,6 kW | 5,6 kW |
| Motor rating Y | 5,6 kW | 8,8 kW |
| Motor rating Z | 5,6 kW | 5,6 kW |
| Measures and weights | ||
| Overall dimensions (length x width x height) | 2.230x2.920x2.560 mm | 3.310x3.750x3.650 mm |
| Weight | 4.500 kg | 16.000 kg |
