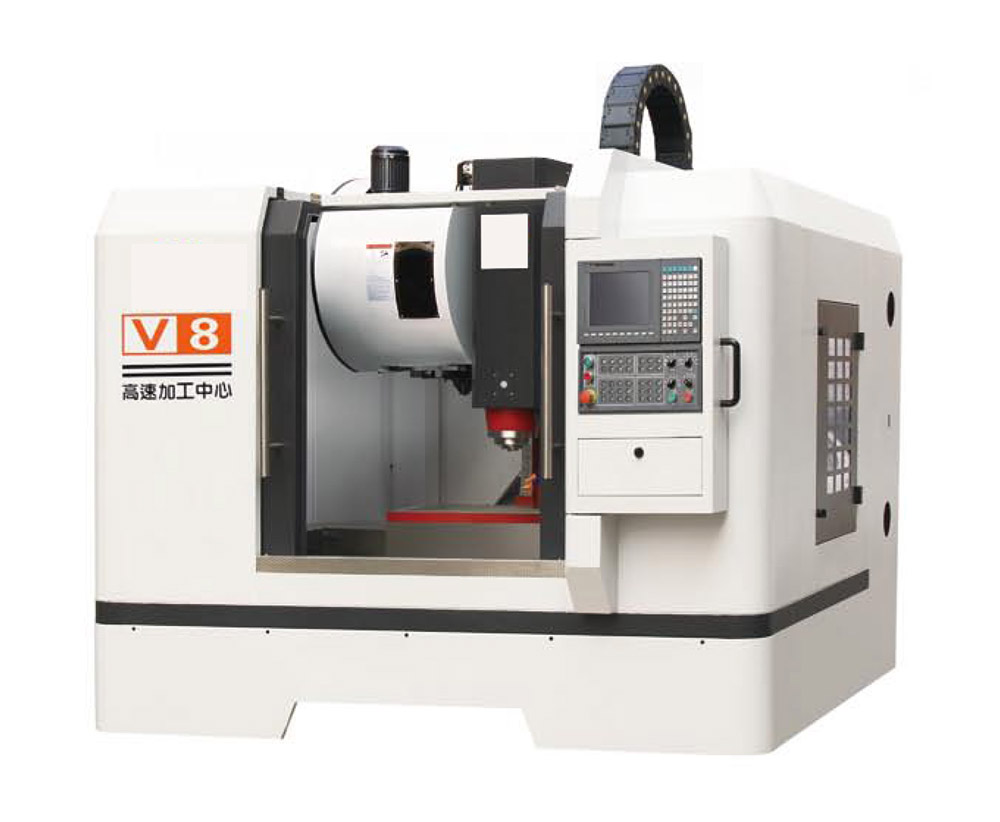

V6 / V7 / V8
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| SPECIFICATIONS | Unit | V6 | V7 | V8 |
| X-Axis Travel | mm | 600 | 700 | 800 |
| Y-Axis Travel | mm | 400 | 450 | 500 |
| Z-Axis Travel | mm | 450 | 500 | 500 |
| Spindle Nose To Table | mm | 170-620 | 130-630 | 120-620 |
| Spindle Axis To Column | mm | 456 | 516 | 560 |
| X Axis rapid feed speed | m/min | 48 | 48 | 48 |
| Y Axis rapid feed speed | m/min | 48 | 48 | 48 |
| Z Axis rapid feed speed | m/min | 48 | 48 | 48 |
| Cutting feed | m/min | 1/10 | 1/10 | 1/10 |
| 3 Axis sevo | N.m | X/Y:11.5 Z:18.6 | X/Y:11.5 Z:18.6 | X/Y:11.5 Z:22 |
| Table size | mm | 700x420 | 900x450 | 900x450 |
| Max weight on table | kg | 300 | 400 | 400 |
| working from the ground surace height | mm | 800 | 800 | 800 |
| T-slot | mm | 3x8x125 | 3x8x150 | 3x8x130 |
| Standard | Gear | Belt | Belt | |
| Speed | rpm | 12000 | 10000 12000/15000 | 10000 12000/15000 |
| Spindle taper | BT40 | BT40 BT40 | BT40 BT40 | |
| Power of main motor | kw | 5.5 | 5.5 5.5 | 7.5 5.5 |
| positioning accuracy | mm | 0.005/300 | 0.005/300 | 0.005/300 |
| Repeat positioning accuracy | mm | 0.003 | 0.003 | 0.003 |
| Capacity of tools | pcs | 24PCS | 24PCS | 24PCS |
| Change times | HZ | 2sec at 50 | 2sec at 50 | 2sec at 50 |
| Machine weight | kg | 2500 | 4000 | 4000 |
| Machine overall dimension | mm | 2000×1400×2190 | 2300×1900×2400 | 2600×2200×2400 |
