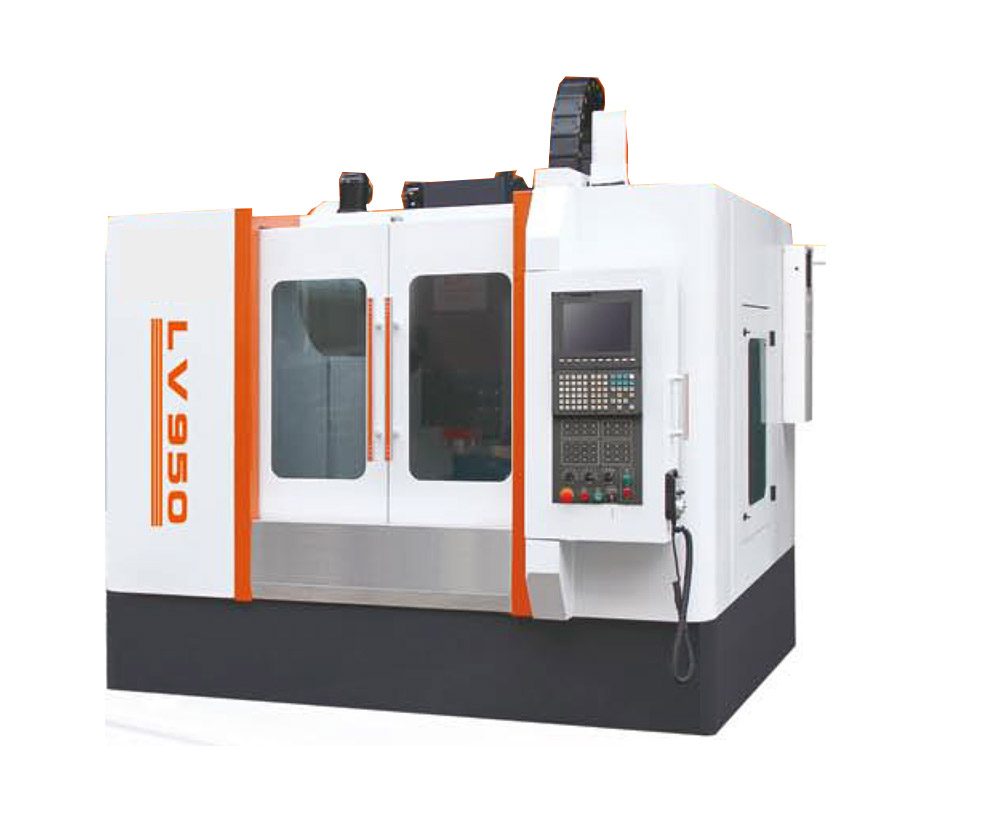

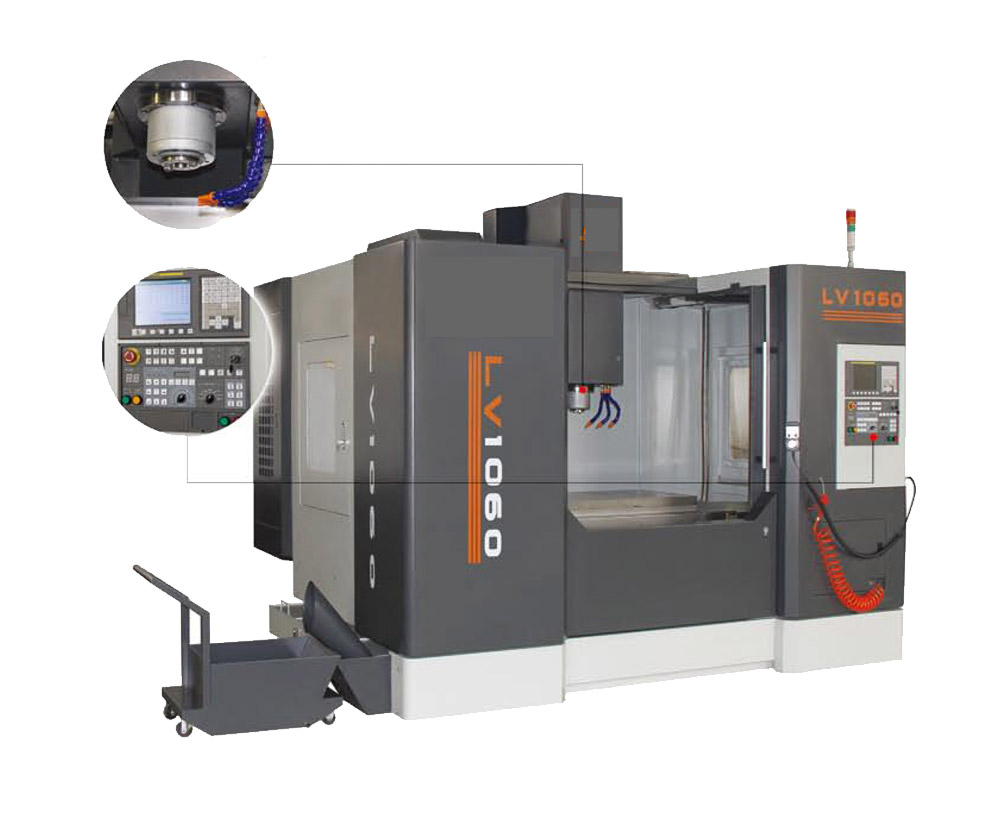

LV-950 / LV-1060
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| SPECIFICATIONS | Unit | LV-950 | LV-1060 |
| X-Axis Travel | mm | 900mm | 1000mm |
| Y-Axis Travel | mm | 500mm | 600mm |
| Z-Axis Travel | mm | 500mm | 600mm |
| Spindle Nose To Table | mm | 120-620mm | 120-720mm |
| Table Size | mm | 1000×520mm | 1160×600mm |
| T-Slot | mm | 5×18×100mm | 5×18×100mm |
| Maximum Table Load | kg | 500Kg | 800kg |
| Spindle Taper | BT40 | BT40 | |
| Spindle RPM | rpm | 8000RPM | 8000RPM |
| Type Of Driving | 皮帶式 | ||
| Spindle Center To Z-Rail | 692mm | ||
| X、Y Axis Rapid Feed Rate | m/min | 48m/min | 36m/min |
| Z Axis Rapid Feed Rate | m/min | 48m/min | 24m/min |
| Three Axis Max.Cutting Feed Rate | m/min | 1-10m/min | 10m/min |
| Spindle Motor | βiI12/8000 SP | SJ-V11 / β12 | |
| X axis Servo Motor | βis22/3000 | HF302S / β22 | |
| Y axis Servo Motor | βis22/3000 | HF302S / β22 | |
| Z axis Servo Motor | βis22B/3000 | HF302BS / β22B | |
| Capacity of tools | PCS | DIC24PCS | DIC 24PCS |
| Change times | Hz | 2sec at 50Hz | 2sec at 50Hz |
| Positioning Accuracy | mm | 0.005mm/300mm | 0.005mm/300mm |
| Repeat Positioning Accuracy | mm | 0.003mm | 0.003mm |
| Approximate Weight | kg | 5500kg | 7000kg |
| Floor Space Measuiment | kg | 3250×2600×2600 | 3450×2700×2800 |
| Air presure | kg | ▬ | ≥6kg/cm2 |
