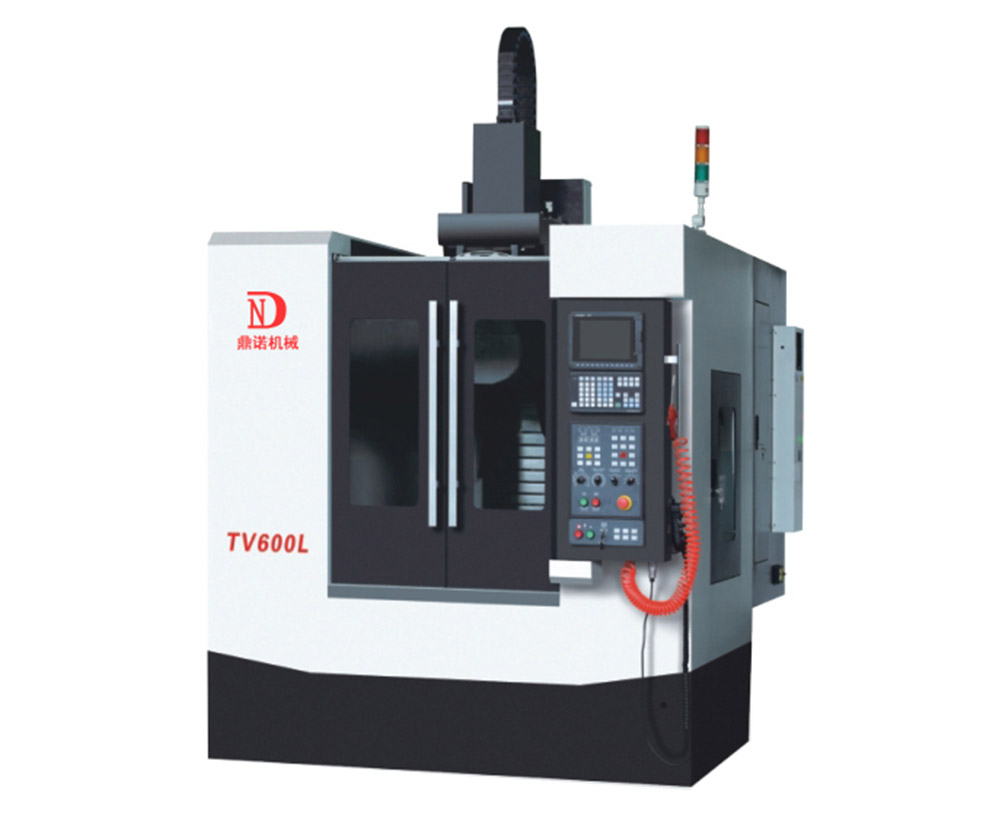

TV500L TV600L
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | Unit | TV500 | TV600 |
| Table size | mm | 600×400 | 700×400 |
| Max.weight of workpiece | kg | 200 | 250 |
| Travel of X axis | mm | 500 | 600 |
| Travel of Y axis | mm | 400 | 400 |
| Travel of Z axis | mm | 350 | 350 |
| Distance between spindle center and guideway face on column | mm | 395 | 395 |
| Distance between spindle nose and worktable face | mm | 170~520 | 150~500 |
| Spindle taper bore | BT30 | BT30 | |
| Max. speed of spindle | rpm | 12000 | 12000 |
| Spindle motor | kw | 5.5 | 5.5 |
| Rapid traverse rate of X/Y/Z axis | m/min | 60/60/48 | 48/48/48 |
| Tool magazine | Turret-type | ||
| Too quantity | 16 | 16 | |
| Max. tool length | mm | 250 | 250 |
| Max. tool DIA | mm | Ф80 | Ф80 |
| Max. tool weight | kg | 3 | 3 |
| Max.unbalance loading | kg | 12 | 12 |
| Max.loading weight of tool magazine | kg | 25 | 25 |
| X、Y、Z axis positional accuracy | mm | 0.01 | 0.01 |
| X、Y、Z axis Re-positional accuracy | mm | 0.005 | 0.005 |
| Size(LengthX width) | mm | 1900×2350 | 2050×2350 |
| Machine height | mm | 2400 | 2400 |
| Machine weight | kg | 2.2 | 2.4 |
| Air pressure | kg/cm2 | 6--8 | 6--8 |
| Electric power | KVA | 15 | 15 |
