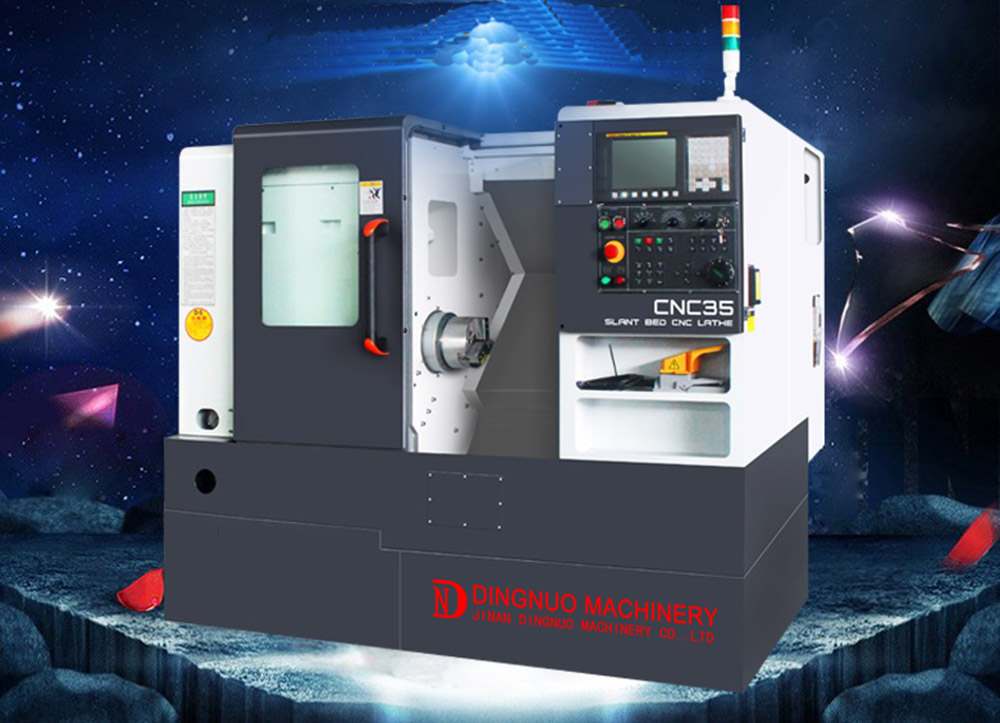

CNC 35
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 3000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. 8-12 position hydraulic turret, easy machining for complex parts.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Integrated slant bed structure.easy liquid leaking, high rigidity and good operation. High speed at 3000r/min. First-class precision spindle bearing. High precision ball screw, fast feeding for high working efficiency. All-closed stainless steel protection, strong liquid protection without any water leak. 8-12 position hydraulic turret, easy machining for complex parts.
Contact us
| Configuration/Type | UNIT | CNC35 with CE | |||
| Maximum Swing Over Bed | mm | 530 | |||
| Maximum Swing Over Slide | mm | 330 | |||
| Maximum Machining Length | Chuck | mm | 280 | ||
| Spindle Head Type | GB59001 | A2-5 | |||
| Spindle Through Hole | ø/mm | 56 | |||
| The Maximum Diameter of Bar Feed | Hydraulic Through Chuck | ø/mm | 48 | ||
| Hydraulic None Through Chuck | ø/mm | 0 | |||
| Manual Chuck | ø/mm | 56 | |||
| Spindle Speed Range | r/min | 60-6000 | |||
| Spindle Shift Mode | servo | ||||
| Main Motor Power | Kw | 7.5 | |||
| Spindle Motor Maximum Speed Range | Kw | 11 | |||
| Chuck Type | Hydraulic Through or None Through Chuck | ||||
| Chuck Size | ø/mm | 160 | |||
| Rapid Traverse Speed On X/Z-axis | m/min | 24/30 | |||
| Servo Motor Torque On X/Z -axis | Nm | 8 | |||
| X/Z-axis Travel | mm | 180/320 | |||
| Ball Screw | X-axis | mm | Oct-32 | ||
| Diameter / Thread | Z-axis | Oct-36 | |||
| Guideway Type | PMI Linear Guideway | ||||
| Linear Guideway width | Z-axis | mm | 35 | ||
| Turret Type | Torque Electric 8/12 Tool Post (PRAGATI) | ||||
| Turret Change Time | °/sec | 30/0.4 | |||
| Turning Tools /Boring Bar Size | mm | 20*20/ ø 25 | |||
| Hydraulic Tailstock Sleeve Diameter/Travel | mm | ø65/70 | |||
| Tailstock Type | Hydraulic Tailstock | ||||
| Internal Taper of Tailstock Sleeve | MT4 | ||||
| Dimension / Weight | L*W*H(mm) | 2150x1520x1830 / 3000KG | |||
| Optional Configuration | |||||
| Hydraulic Through Chuck(AUTOGRIP Made in Taiwan) | ø160mm | ||||
| Chips Conveyor | Hinge-Belt | ||||
