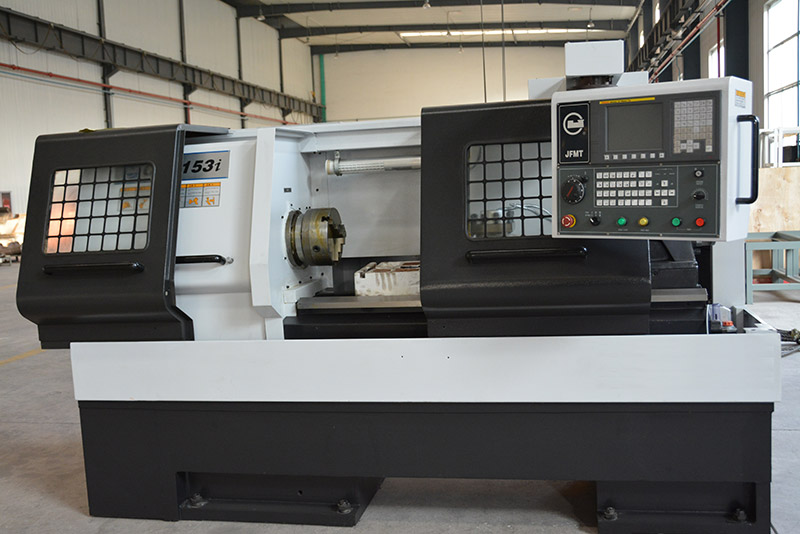

| Specifications | CK6153i | |
| control | FANUC 0i MATE-T | |
| max. swing over bed | 530 mm | |
| max. swing over slide | Φ300MM | |
| distance between center | 860/1000/1500 mm | |
| motor rating | Standard: 7.5 Option: 11 KW | |
| spindle | bore in spindle | Ф65/180 mm |
| taper of bore | MT4# | |
| spindle nose | A2 - 4 | |
| speed | 250-76 r/min | |
| 760-2000 r/min | ||
| 30-3000 (servo) | ||
| rapid feed | X | 6 m/min |
| Z | 10 m/min | |
| max. travel | X | 265mm |
| Z | 400mm | |
| feed motor | X | 1.2 kW |
| Z | 1.8 kW | |
| shank size W x H | 25 x 25 mm | |
| taper of tailstock sleeve | MT 4 | |
| travel of tailstock sleeve | 150 mm | |
| quill diameter (manual / hydraulic) | Φ85 mm | |
| overall dimensions L x W x H | 2930/3440×1502×1750 mm | |
| Net weight/ gross weight | 3200/3400/3700 kg | |
