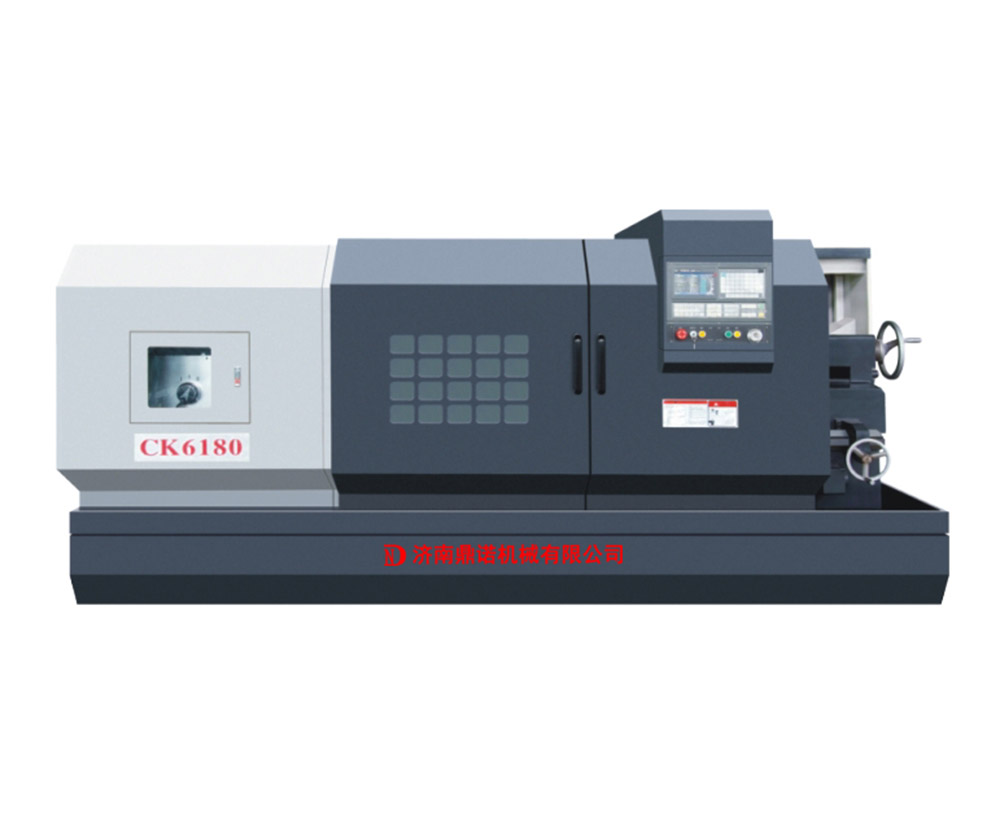

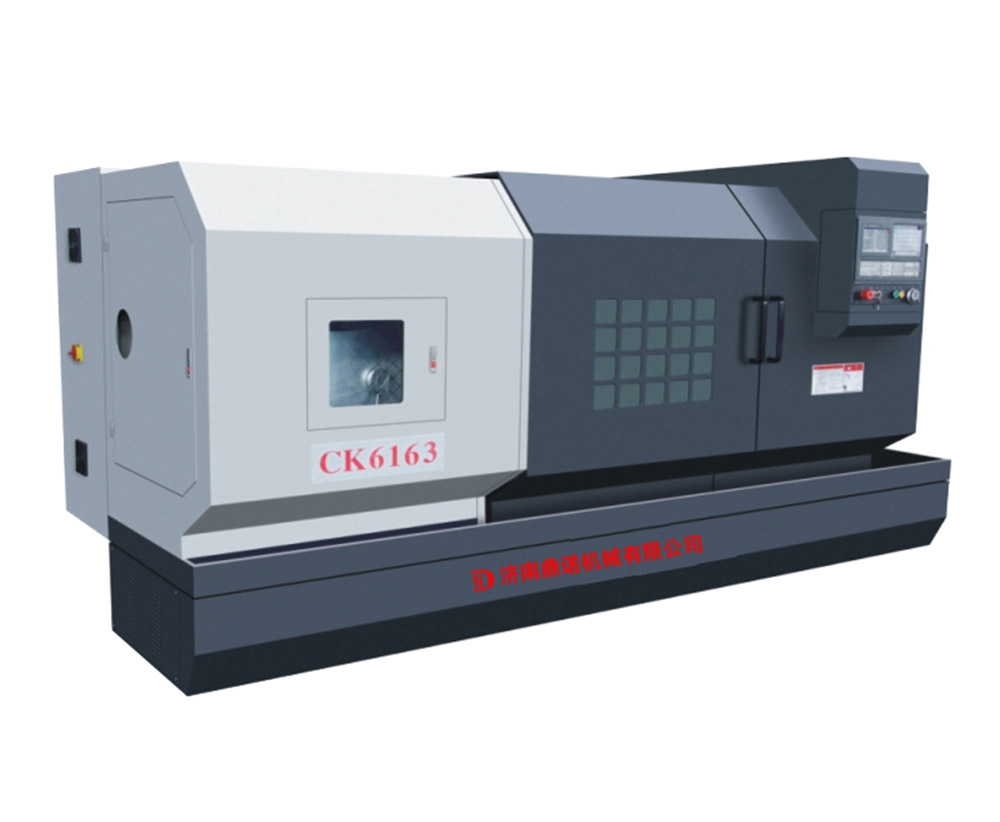

CK6163 CK6180
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| Model | SPECIFICATION | Unit | CK6163 | CK6180 |
| Processing range | Max.Swing over bed | mm | Φ630 | Φ800 |
| Max.Swing over cross slide | mm | Φ330 | Φ530 | |
| Max cutting length | mm | 1000/1500/3000 | 1000/1500/3000 | |
| Spindle | Spindle bore | mm | Φ105 | Φ105 |
| spindle nose | C11 | C11 | ||
| Main motor power | Kw | 11 | 11 | |
| Range of spindle speed | r/min | A：10-65 B：25-165 | A：10-65 B：25-165 | |
| (四档无级变速) | C：55-405 D：130-1000 | C：55-405 D：130-1000 | ||
| Spindle taper | 1:20 | 1:20 | ||
| Travel | X Max travel | mm | 515 | 515 |
| Z Max travel | mm | 1000/1500/3000 | 1000/1500/3000 | |
| Feed | X-axis travel | m/min | 6 | 6 |
| Z-axis travel | m/min | 8 | 8 | |
| X/Z Feed motor | Nm | X/Z：15/18 | X/Z：15/22 | |
| Tool post | Standard | 4 station turret | 4 station turret | |
| Standard cutter diameter size | 32×32 | 32×32 | ||
| Tail stock | Taile stock sleeve diameter | mm | Φ105 | Φ105 |
| Taile stock sleeve travel | mm | 250 | 250 | |
| Inner taper of tailstock | MT5 | MT5 | ||
| Positioning accueacy | X repeatability Positioning accueacy | mm | 0.015 | 0.015 |
| Z repeatability Positioning accueacy | mm | 0.018 | 0.018 | |
| Overall dimension（L×W×H） | mm | 3224/3750×1715×1590 | 3224/3750×1715×1590 | |
| weight | T | 4200/4800/6000kg | 5500/6000/7000kg | |
| main motor power | 3￠-AC 380V 50Hz±5% | 3￠-AC 380V 50Hz±5% |
