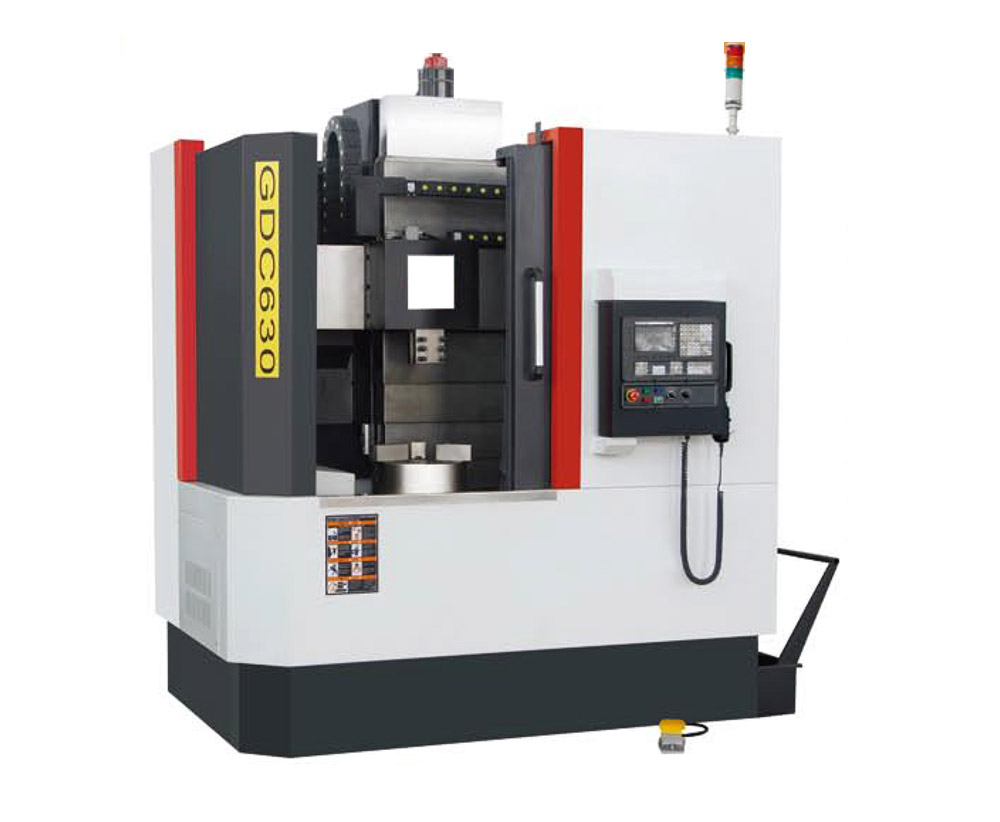

GDC630 / GDC900 / GDC1200
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
Contact us
| SPECIFICATIONS | Unit | GDC630 | GDC900 | GDC1200 |
| Maximum turning diameter of the machine | mm | 660 | 900 | 1200 |
| Max.Cutting diameter | mm | 650 | 900 | 1200 |
| Diameter of the worktable | mm | 500 | 600 | 1000 |
| Number of spindle speeds | 80-500 Stepless | 80-350 Stepless | 80-350 Stepless | |
| Turret vertical moving distance | mm | 650 | 650 | 750 |
| Turret level of mobile distance | mm | 420 | 520 | 720 |
| Turret in the form | Gang / electric turet | Gang / electric turet | Gang / electric turet | |
| Arbor section | mm | 25×25 | 32×32 | 40×40 |
| Positioning Repeatability | mm | 0.012 | 0.012 | 0.015 |
| Positioning accuracy | mm | X/Z0.012/0.02 | X/Z0.015/0.02 | X/Z0.018/0.02 |
| Overall dimensions of machine | mm | 2150×1950×2850 | 2450×2150×2950 | 2700×2300×3200 |
| Machine weight | T | 4 | 5.1 | 6.5 |
