ENGINE LATHE

Home > Products > METAL > LATHE > ENGINE LATHE
DN360 V X 1000

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW

The DN360 V mechanics' lathe is a state of the art machine. The high user-friendliness makes this model popular for training purposes and schools. Additionally this model is equipped with a variable speed adjustment for ideal setting of the cutting

Contact us

SPECIFICATIONS

Distance between center

1000 mm

Center height

180 mm

Swing over bed

360 mm

Swing over gap*

480 mm

Swing over cross slide

200 mm

Bed width

185 mm

Spindle bore

51 mm

Spindle nose

DIN 55029, D1-5

Speed range

70 - 2000 rpm, stepless

Longitudinal feed

(16) 0,078 - 1,044 mm/rev.

Cross feed

(16) 0,022 - 0,298 mm/rev.

Metric thread

(36) 0,45 - 10 mm

Inch thread

(20) 2 ¼ - 40 threads/1"

Travel of tailstock sleeve

120 mm

Taper of tailstock sleeve

MT 4

Motor power output S1 100%

1,5 kW (400 V)

Motor power input S6 40%

2,2 kW (400 V)

Machine dimensions (W x D x H)

1910 x 730 x 1500 mm

Weight approx.

575 kg

* Bed width can be: 205 mm

FEATURES

  • Compact but solid machine with leadscrew and feed rod
  • Grey cast-iron machine bed, inductive hardened and precisely polished
  • Wide range of applications - training workshops, tool shops, production etc.
  • This model comes with frequency converter for variable speed setting
  • Bridge can be removed to machine workpieces with large diameter
  • Electro-mechanic foot brake clearly reduces downtime

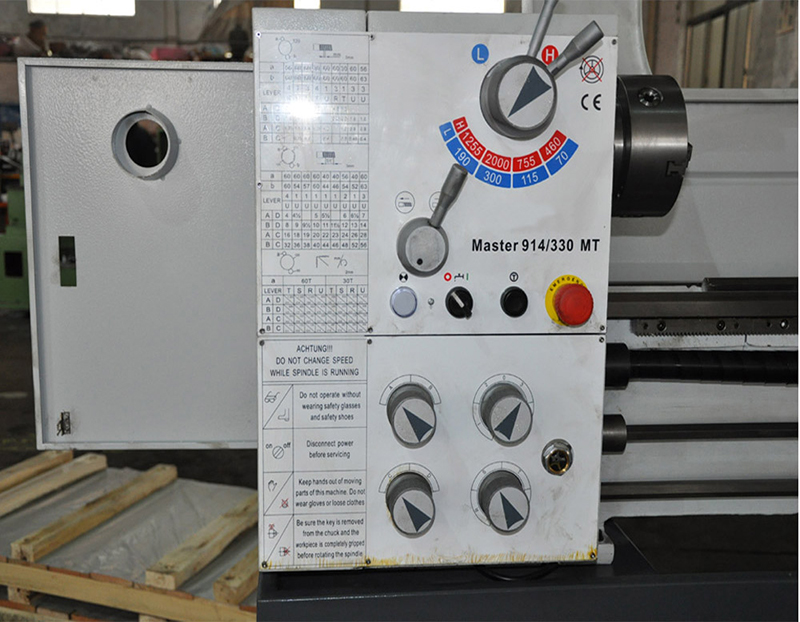

  • Clearly arranged, user-friendly speed and feed adjustment
  • One-hand clamping for tailstock, adjustable for taper turning
  • Hardened and polished gears and shafts in gear head
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath
  • 51 mm spindle bore to machine large shaft diameters comes standard

Standard accessories:

  • 3-axis digital readout
  • 3-jaw chuck DK11-200 mm
  • Independent chuck 200 mm
  • Steady rest - Passage up to 55 mm
  • Follow rest - Passage up to 50 mm
  • Face plate 255 mm

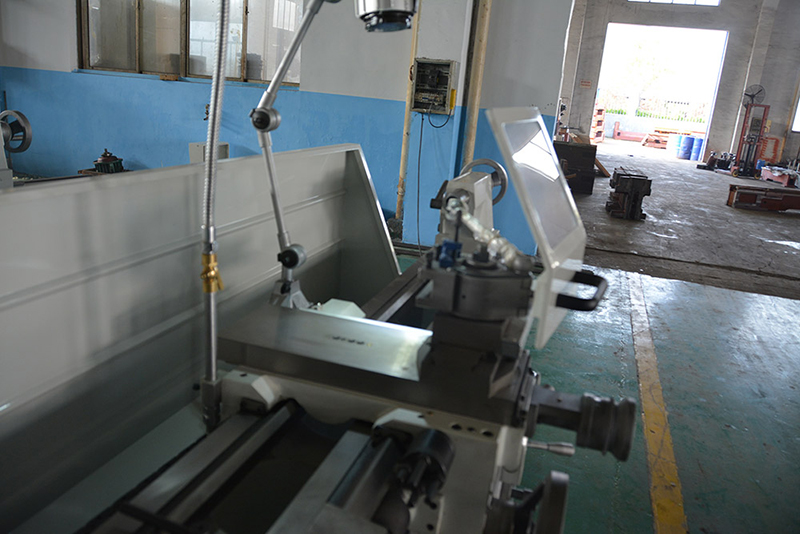

  • 4-way tool post holder
  • Protective device at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Coolant device
  • Spindle brake
  • Frequency inverter
  • Foot pedal with brake function according to CE
  • Initial filling with Shell Tellus 46
  • Extractable chip tray
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve
  • Change gears
  • 2 dead centers
  • Splash guard
  • Stand
  • Tools

 Optional accessories:

  • Standard-4-jaw chuck DK12-D,
  • Soft solid jaws DSJ-DK11-200
  • Soft solid jaws DSJ-DK12-200
  • Soft top jaws DSTJ-DK11-200
  • Hard master jaws DMJ-DK11-200
  • Hard reversible top jaws DTJ-DK11-200
  • 6 station revolving tailstock turret MT 4
  • Inserts for tailstock MT 4
  • Boring bar holder size E diam. 30 x 100
  • Keyless drill chuck 1 - 16 mm / B 16
  • 12 pcs.  set metric size center drills
  • HSS-turning tool set, 16 mm, 8 pcs.
  • 4 pcs. turning tools set incl. 1 pc. boring bar, 16 mm
  • 6 pcs. turning tools set incl. 1 pc. boring bar, 16 mm
  • Multipurpose turning tool set, 16 mm, 7 pcs., Tin-coated, set
  • Taper turning attachment
