QUICK OVERVIEW

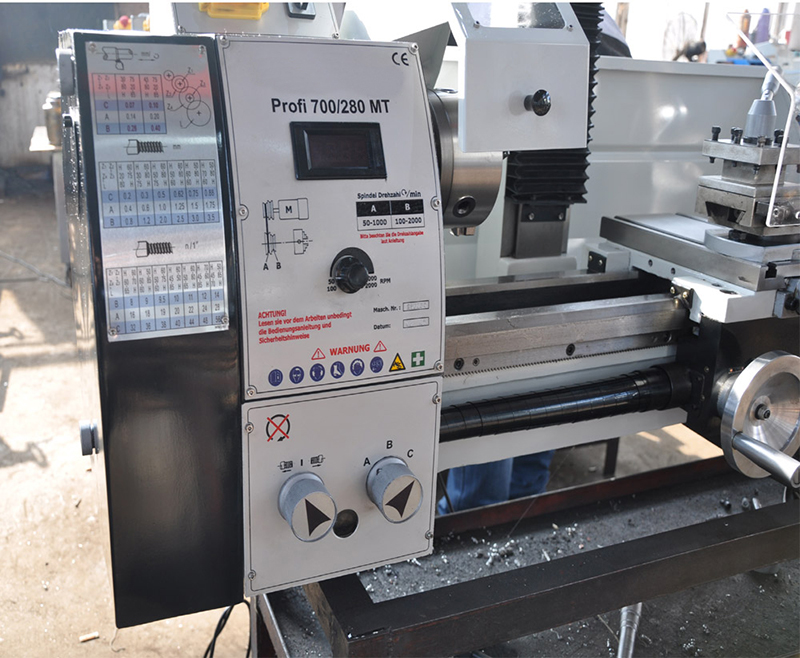

The Profi 700 Top is the latest additions to our range of lathes. Both come complete with high-quality Delta frequency inverters, resulting in significant advantages such as high torque in low speed range and the nearly constant speed at heavy workloads.
Contact us
SPECIFICATION
|
Distance between centers |
700 mm |
|
Center height |
150 mm |
|
Swing over bed |
300 mm |
|
Bed width |
180 mm |
|
Spindle bore |
38 mm |
|
Taper at spindle bore |
MT 5 |
|
Speed range, stepless |
70 - 380 / 380 -2000 rpm |
|
Longitudinal feed |
(14) 0,07 - 0,65 mm/rev. |
|
Cross feed |
(11) 0,03 - 0,12 mm/rev. |
|
Metric thread |
(18) 0,2 - 3,5 mm |
|
Inch thread |
(21) 8 - 56 threads/1“ |
|
Travel of tailstock sleeve |
85 mm |
|
Taper of tailstock sleeve |
MT 3 |
|
Motor power output S1 100% |
1,1 kW / 230 V |
|
Motor power input S6 40% |
1,5 kW / 230 V |
|
Machine dimension (W x D x H)* |
1380 x 640 x 500 mm |
|
Weight approx. |
235 kg |
FEATURE
- Three -phase motor with frequency inverter for higher performance and high torque
- Complete with 38 mm spindle bore to allow processing of large shaft diameters (Profi 700 Top)
- Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
- Feed settings are logically arranged, easy to control with top accuracy
- Suitable for processing of steel, non-ferrous metals and plastics
- Prism bed with large support surface, inductively hardened and polished
- Precise spindle bearing with two adjustable precision taper roller bearings
- High concentricity of spindle nose – better than 0.009 mm
- Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
Standard accessories:
- Dead centers
- 3-jaw chuck DK11-160 mm
- Flange 160 mm
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Frequency inverter
- Digital speed indication
- Thread dial
- Chuck guard
- Splash guard
- Leadscrew cover
- Tools
Optional accessories:
- 4-jaw steel chuck
- Soft solid jaws
- Independent chuck K72-125 mm
- Face plate 240 mm
- Flange 125 mm
- Steady rest
- Follow rest
- Economy live center
- Live center with 7 interchangeable tips
- Milling attachment
- Coolant pump with plastic tank
- Quick change set
- Costs of assembly for quick change set
- Indexable carbide turning tool set, 12 mm, 5 pcs
