QUICK OVERVIEW

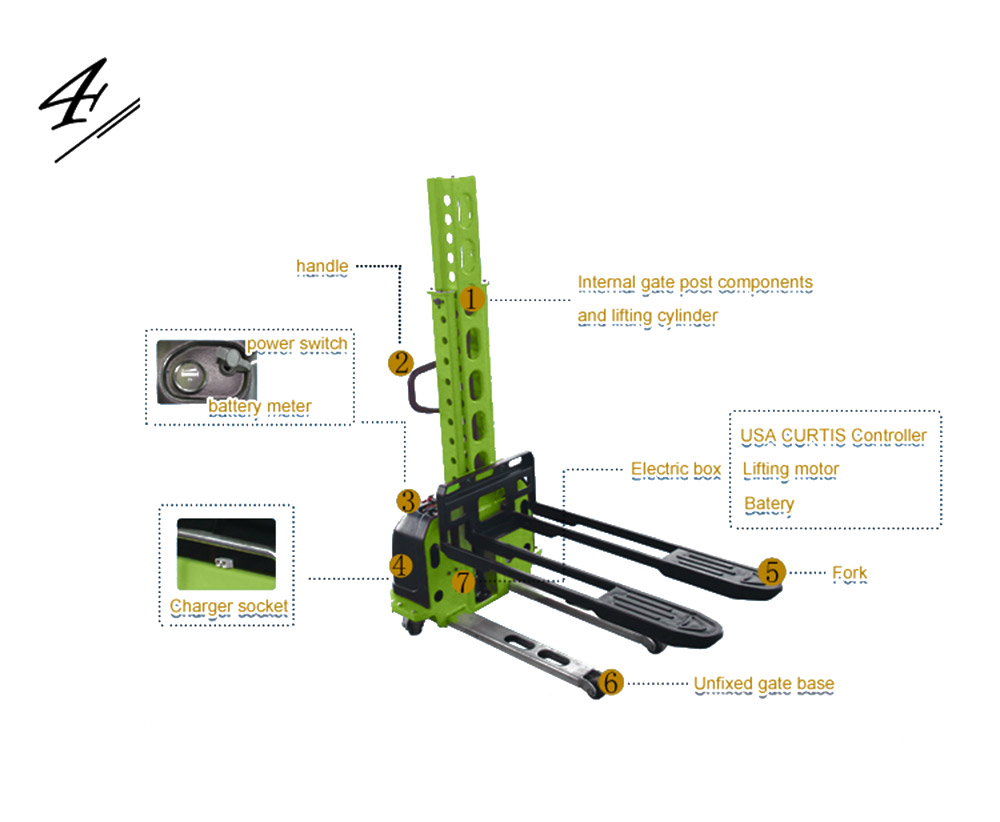

1.Steering chain auxiliary device 2.The foot brake,more stable 3.Sealed batteries free of maintenance,safe operation and no pollution 4.Explosion-proof valve design,down more stable and reliable 5.Over discharge protection,extending battery life
Contact us

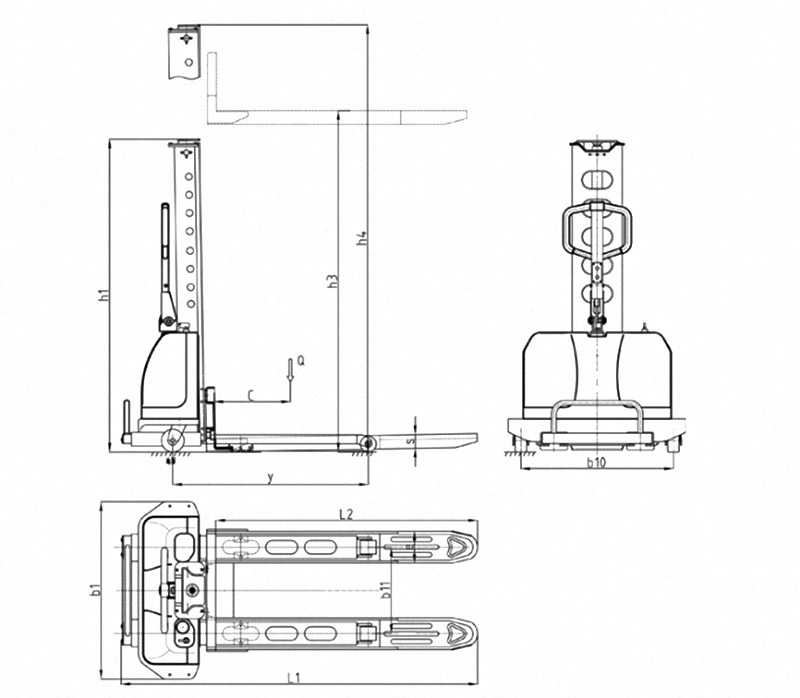

SPECIFICATION:
|
Model |
|
SDYG-Z 0511 |
SDYG-Z 0513 |
|
Capacity |
Q(Kg) |
500 |
500 |
|
Load center |
C(mm) |
400 |
400 |
|
Type of lifting |
|
Electric |
Electric |
|
Operating type |
|
Walkie |
Walkie |
|
Material |
|
PU/Nylon |
PU/Nylon |
|
Wheel base |
y(mm) |
860 |
860 |
|
Front wheel base |
b11(mm) |
380 |
380 |
|
Back wheel base |
b10(mm) |
670 |
670 |
|
Quantity Steering/Bearing/Balance |
|
2/2/6 |
2/2/6 |
|
Bearing wheel size |
mm |
Φ70x60 |
Φ70x60 |
|
Steering wheel size |
mm |
Φ100x50 |
Φ100x50 |
|
Balance wheel size |
mm |
Φ40x26 |
Φ40x26 |
|
Training wheel size |
mm |
Φ30x26 |
Φ30x26 |
|

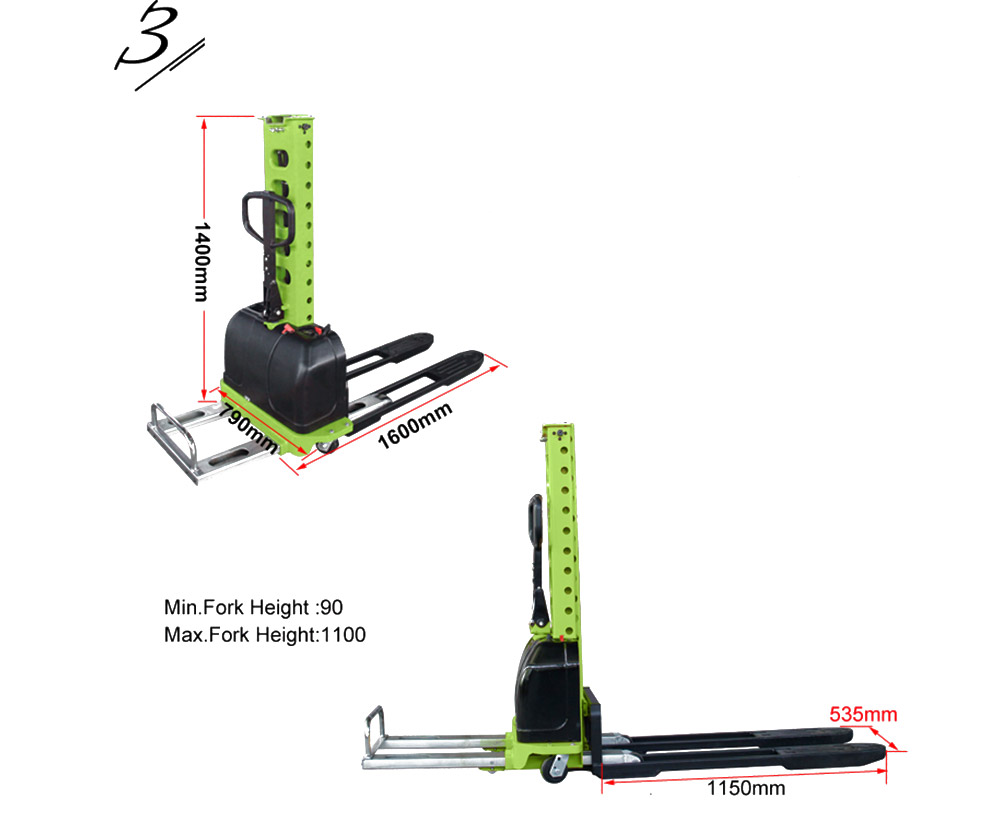

Min.fork height |
mm |
90 |
90 |
|
Max.fork height |
h3(mm) |
1100 |
1300 |
|
Fork outside width |
mm |
535 |
535 |
|
Fork inside width |
mm |
225 |
225 |
|
Fork length |
l2(mm) |
1150 |
1150 |
|
Single fork size |
e/s(mm) |
155/60 |
155/60 |
|
Overall length |
L1(mm) |
1600 |
1600 |
|
Overall width |
b1(mm) |
790 |
790 |
|
Overall height |
h1(mm) |
1400 |
1600 |
|
Whole height(after tape file shelf) |
h4(mm) |
2700 |
2900 |
|
Min.turning radius |
Wa(mm) |
1100 |
1120 |
|
Lifting speed(laden/unladen) |
mm/s |
80/110 |
80/110 |
|
Lowering speed(laden/unladen) |
mm/s |
80/80 |
80/80 |
|
Lift motor |
Kw |
12V0.8 |
12V0.8 |
|
Battery capacity |
V/Ah |
12/33 |
12/33 |
|
Battery weight |
Kg |
10 |
10 |
|
Net weight |
Kg |
197 |
219 |
