QUICK OVERVIEW

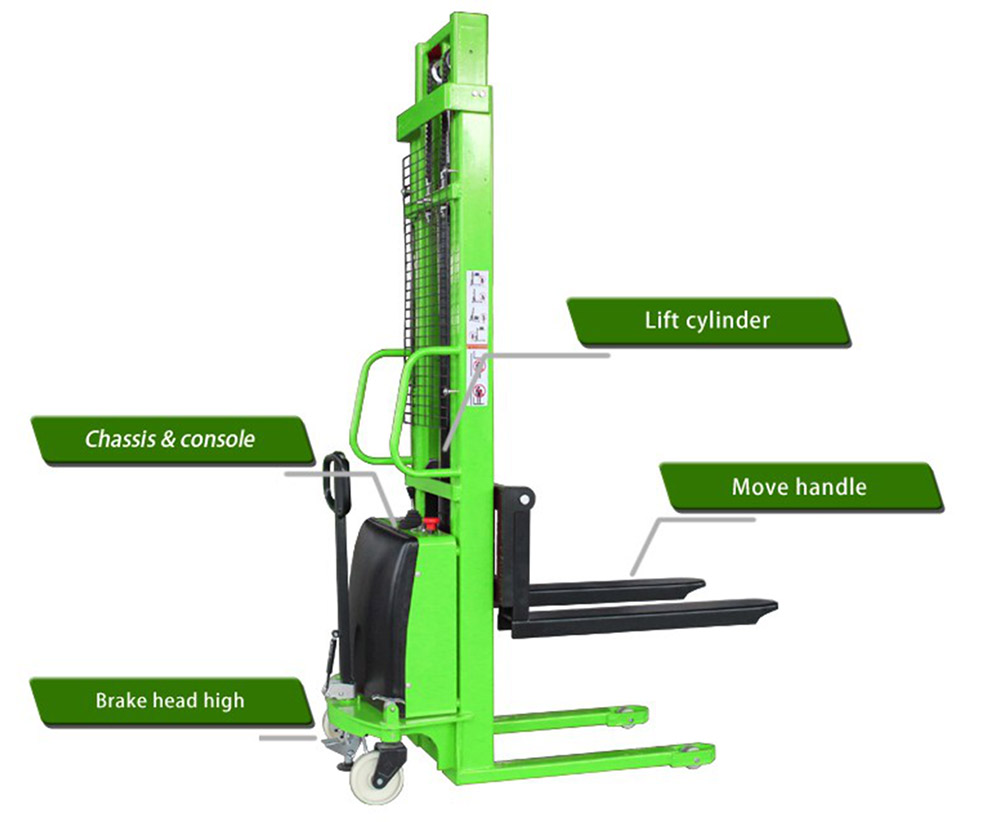

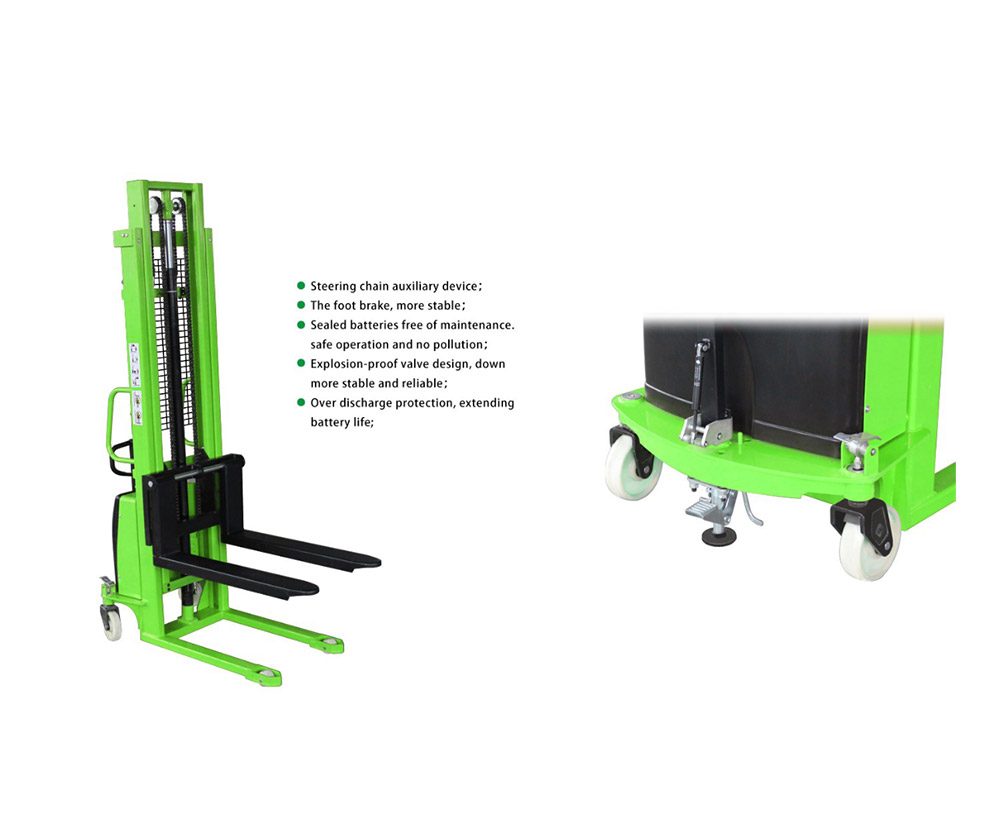

1. Steering chain auxiliary device ; 2.Foot brake,more stable; 3.Sealed batteries free of maintenance,safe operation and no pollution; 4.Explosion proof valve design,down more stable and reliable; 5.Over discharge protection,extending battery lift.
Contact us

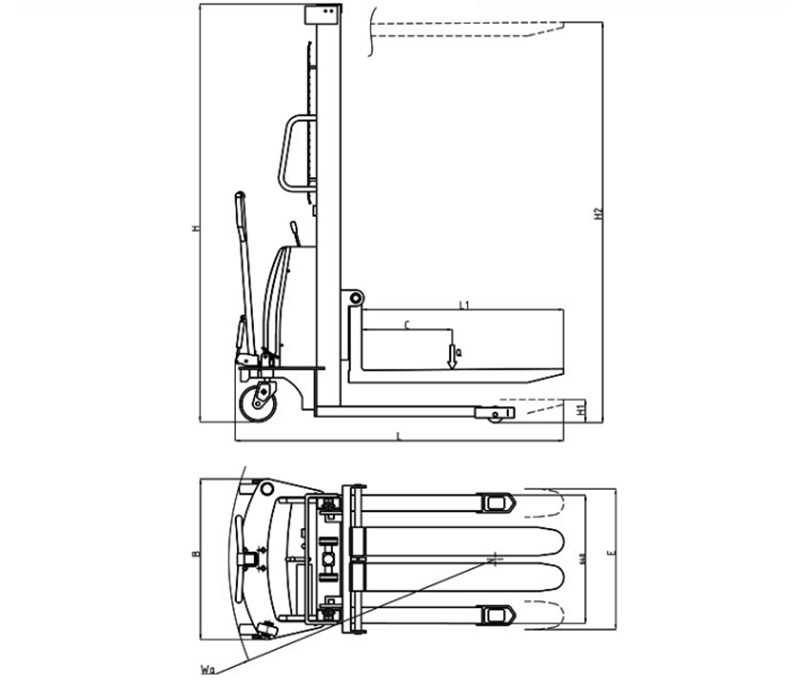

SPECIFICATION:
|
Model |
|
SDYG-1016/1020/1025/1030/1035 |
SDYG-1516/1520/1525/1530/1535 |
SDYG-2016/2020 |
|
Capacity |
Q(Kg) |
1000 |
1500 |
2000 |
|
Load center |
C(mm) |
450 |
450 |
450 |
|
Type of lifting |
|
Electric |
Electric |
Electric |
|
Operating type |
|
Walkie |
Walkie |
Walkie |
|
Material |
|
Nylon |
Nylon |
Nylon |
|
Quantity Steering/Bearing |
|
2/2 |
2/2 |
2/2 |
|
Wheel base |
mm |
1182 |
1182 |
1182 |
|
Bearing wheel size |
mm |
Φ80x60 |
Φ80x60 |
Φ80x60 |
|
Steering wheel size |
mm |
Φ80x60 |
Φ80x60 |
Φ80x60 |
|
Min.fork height |
H1(mm) |
90 |
90 |
90 |
|
Max.fork height |
H2(mm) |
1600/2000/2500/3000/3500 |
1600/2000/2500/3000/3500 |
1600/2000 |
|
Fork outside width |
E(mm) |
320-710 |
320-710 |
340-710 |
|
Fork inside width |
mm |
20-410 |
20-410 |
20-390 |
|
Fork length |
L1(mm) |
1000 |
1000 |
1000 |
|
Single fork size |
e/s(mm) |
150/60 |
150/60 |
160/60 |
|

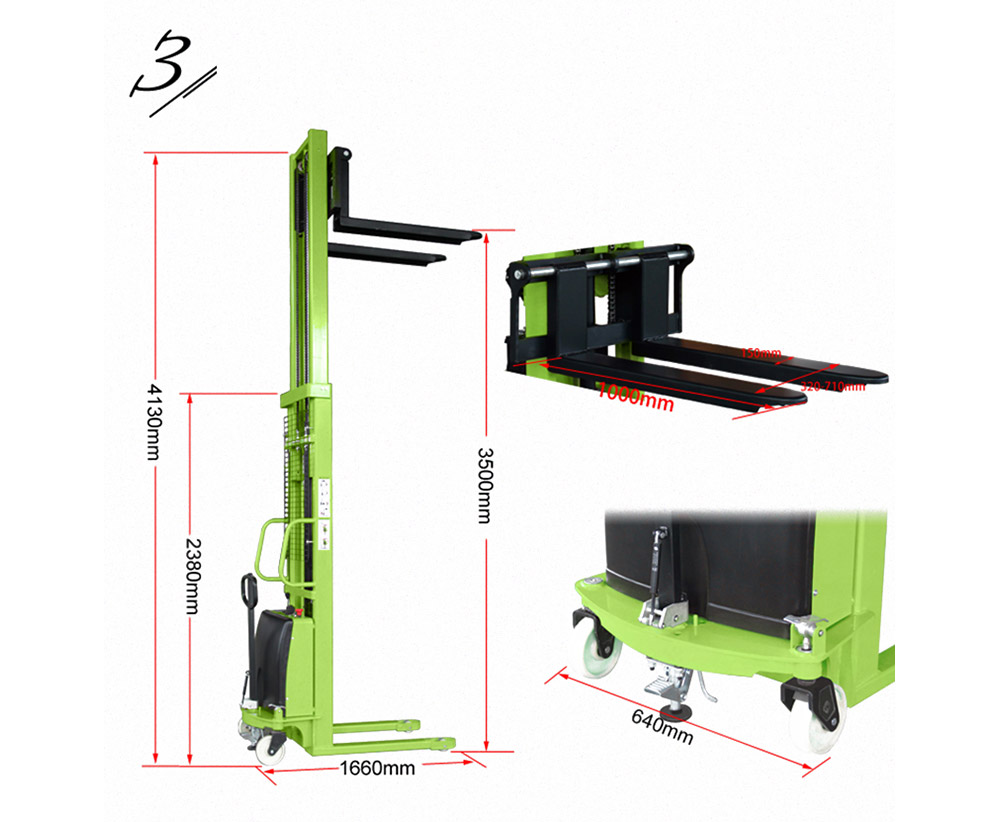

Overall length |
L(mm) |
1660 |
1660 |
1660 |
|
Overall width |
B(mm) |
770 |
770 |
770 |
|
Overall height |
H(mm) |
2130/1580/1830/2080/2330 |
2180/1630/1880/2130/2380 |
2190/1630 |
|
Table size |
mm |
1510/1910/2410/2910/3410 |
1510/1910/2410/2910/3410 |
1510/1910 |
|
Min.turning radius |
Wa(mm) |
1350 |
1450 |
1450 |
|
Lifting speed(laden/unladen) |
mm/s |
40-50/85-95 |
40-50/85-95 |
40-50/85-95 |
|
Lowering speed(laden/unladen) |
mm/s |
90-110/85-95 |
90-110/85-95 |
90-110/85-95 |
|
Lift motor |
Kw |
1.6 |
1.6 |
1.6 |
|
Battery capacity |
V/Ah |
12V120 |
12V120 |
12V120 |
|
Battery weight |
Kg |
36 |
36 |
36 |
|
Net weight |
Kg |
340/390/410/430/450 |
360/410/430/450/470 |
430/470 |
