QUICK OVERVIEW
1.The hydraulic consists of three parts:the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts. 2. The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position. 3.The oil-reflow valve is placed in the hydraulic device. 4.The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.
Contact us

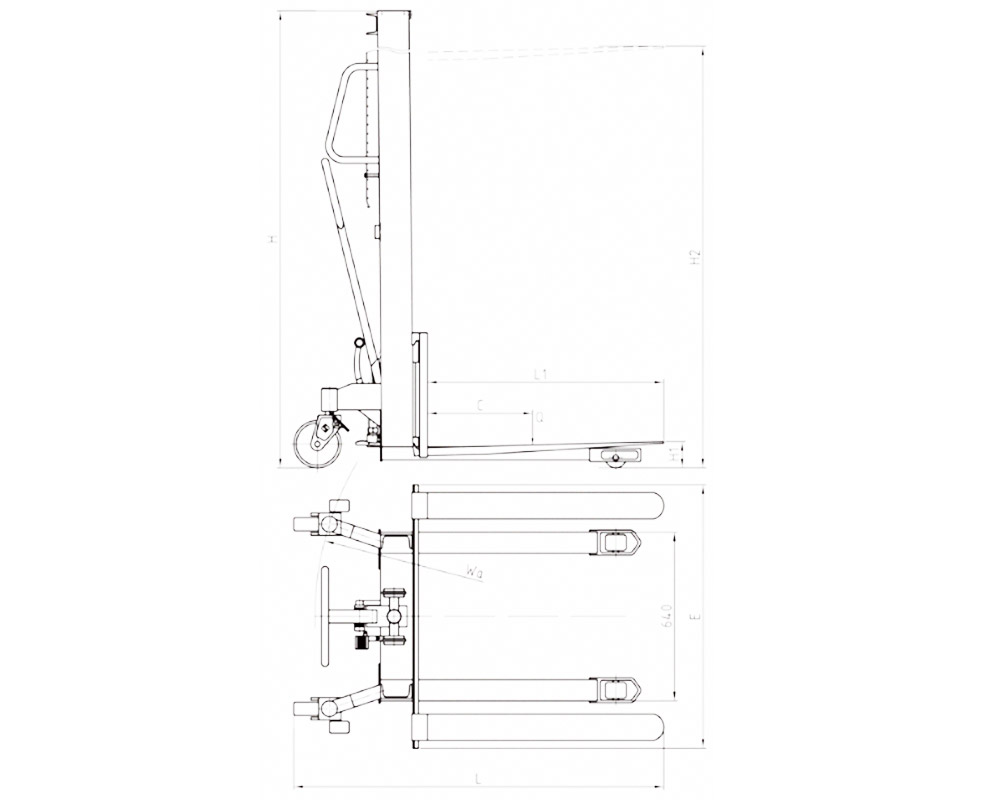

SPECIFICATION:
|
Model |
|
SYG-Ⅰ 0516 |
SYG-Ⅰ 1016 |
SYG-Ⅰ 1516 |
SYG-Ⅰ 2016 |
|
Capacity |
Q(Kg) |
500 |
1000 |
1500 |
2000 |
|
Load center |
C(mm) |
400 |
400 |
400 |
400 |
|
Type of lifting |
|
ManualFoot |
Manual/Foot |
Manual/Foot |
Manual/Foot |
|
Operating type |
|
Walkie |
Walkie |
Walkie |
Walkie |
|
Material |
|
Nylon |
Nylon |
Nylon |
Nylon |
|
Quantity Steering/Bearing |
|
2/2 |
2/2 |
2/2 |
2/2 |
|
Wheel base |
mm |
1140 |
1140 |
1140 |
1140 |
|
Bearing wheel size |
mm |
Φ75×42 |
Φ80×60 |
Φ80×60 |
Φ80×60 |
|
Steering wheel size |
mm |
Φ180×50 |
Φ180×50 |
Φ180×50 |
Φ180×50 |
|
Min.fork height |
H1(mm) |
90 |
90 |
90 |
90 |
|
Max.fork height |
H2(mm) |
1600 |
1600 |
1600 |
1600 |
|

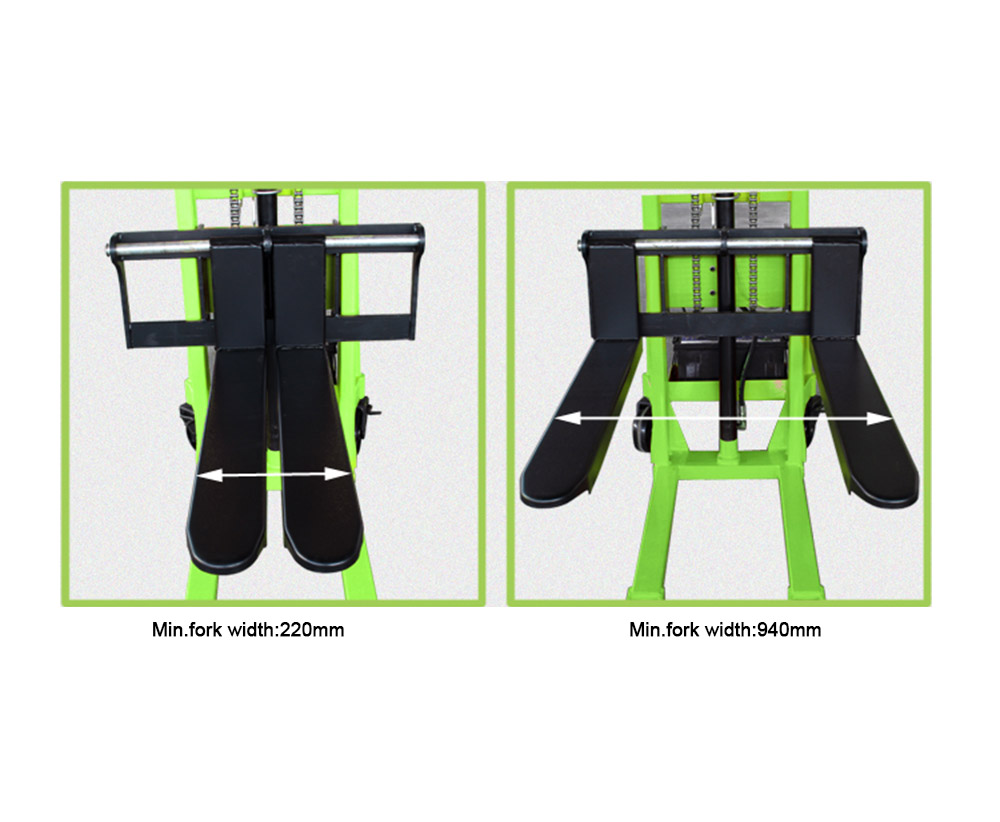

Fork outside width |
mm |
220-720 |
200-940 |
200-940 |
240-940 |
|
Fork inside width |
mm |
20-520 |
0-740 |
0-740 |
0-700 |
|

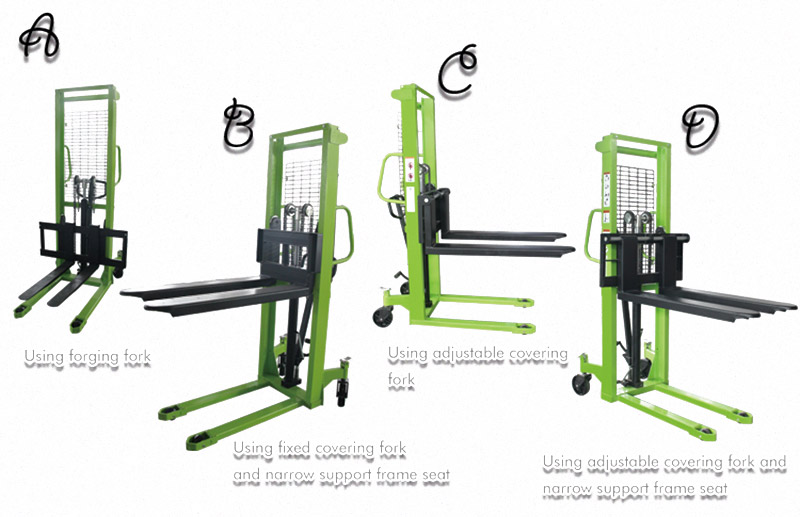

Fork length |
L1(mm) |
800（Covered fork） |
900（Forged fork） |
900（Forged fork） |
900（Forged fork） |
|
Single fork size |
e/s(mm) |
100/48 |
100/30 |
100/30 |
120/30 |
|

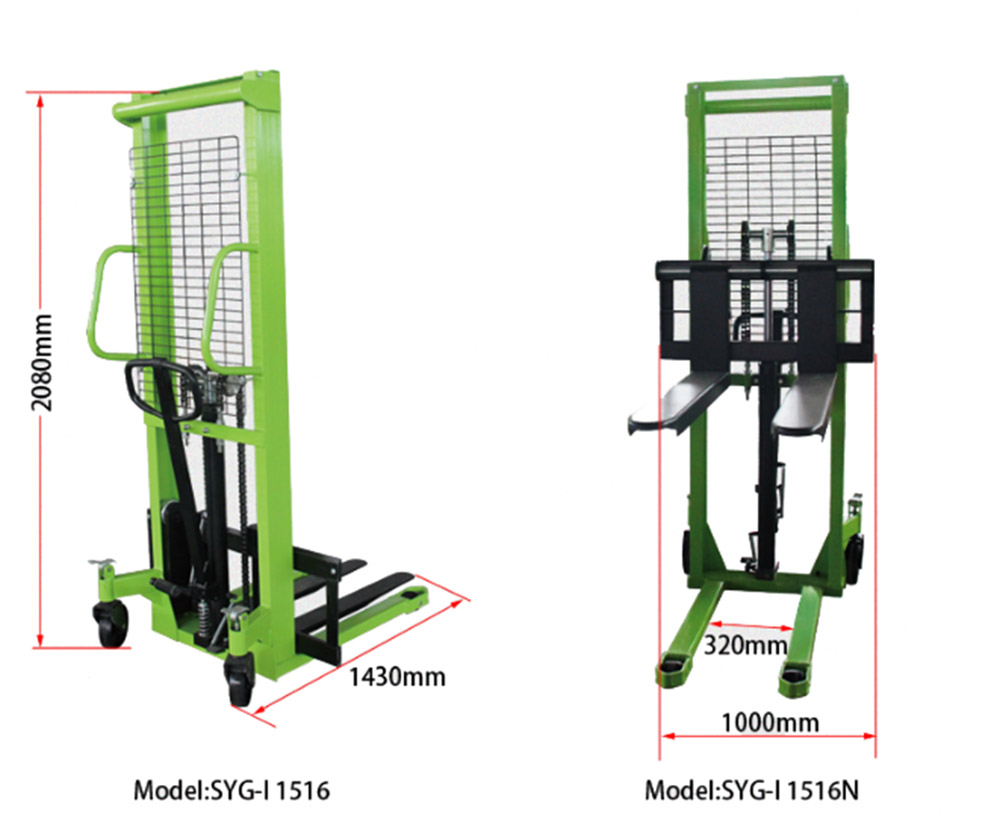

Overall length |
L(mm) |
1284 |
1375 |
1430 |
1430 |
|
Overall width |
E(mm) |
820 |
1000 |
1000 |
1000 |
|
Overall height |
H(mm) |
1985 |
1985 |
2085 |
2085 |
|
Min.ground clearance |
mm |
30 |
30 |
30 |
30 |
|
Min.turning radius |
Wa(mm) |
1250 |
1400 |
1400 |
1400 |
|
Max. pump pressure |
times |
≤76 |
≤76 |
≤110 |
≤110 |
|
Lowering speed(laden/unladen) |
mm/s |
Foot control |
Foot control |
Foot control |
Foot control |
|
Net weight |
Kg |
190 |
220 |
250 |
275 |
