QUICK OVERVIEW

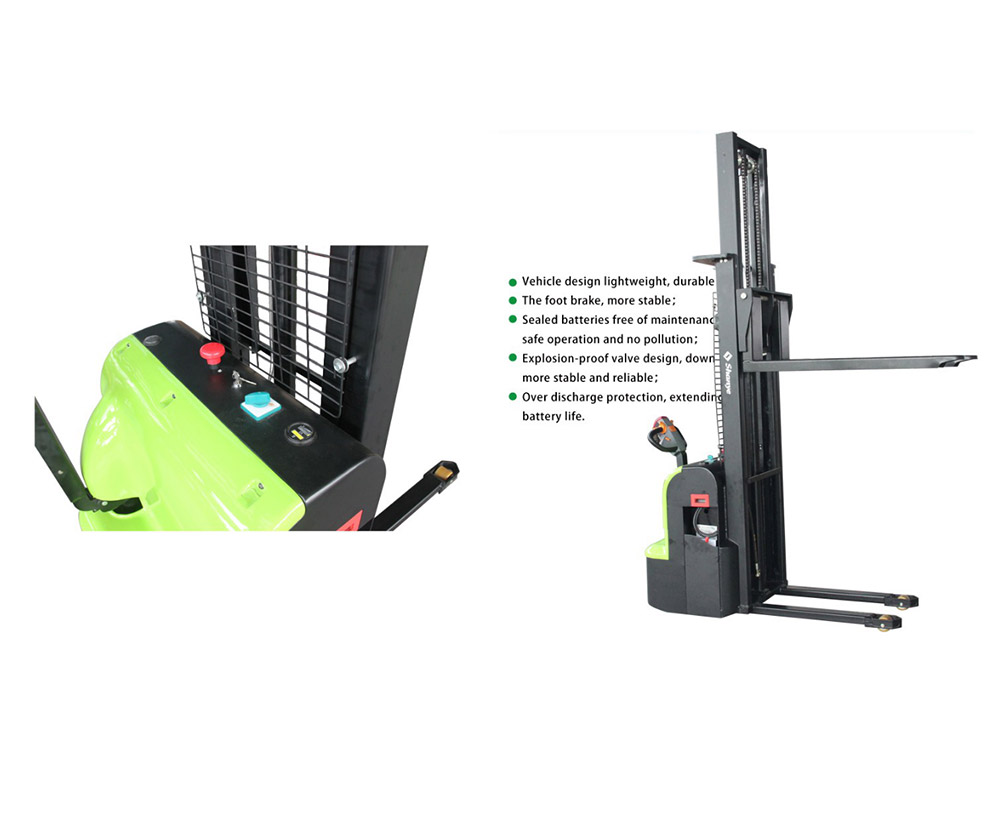

1. Vehicle design lightweight;2. Foot brake,more stable; 3. Sealed batteries free of maintenance safe operation and no pollution; 4. Explosion-proof valve design,more stable and reliable; 5. Over discharge protection,extending long battery life.
Contact us
SPEC
|

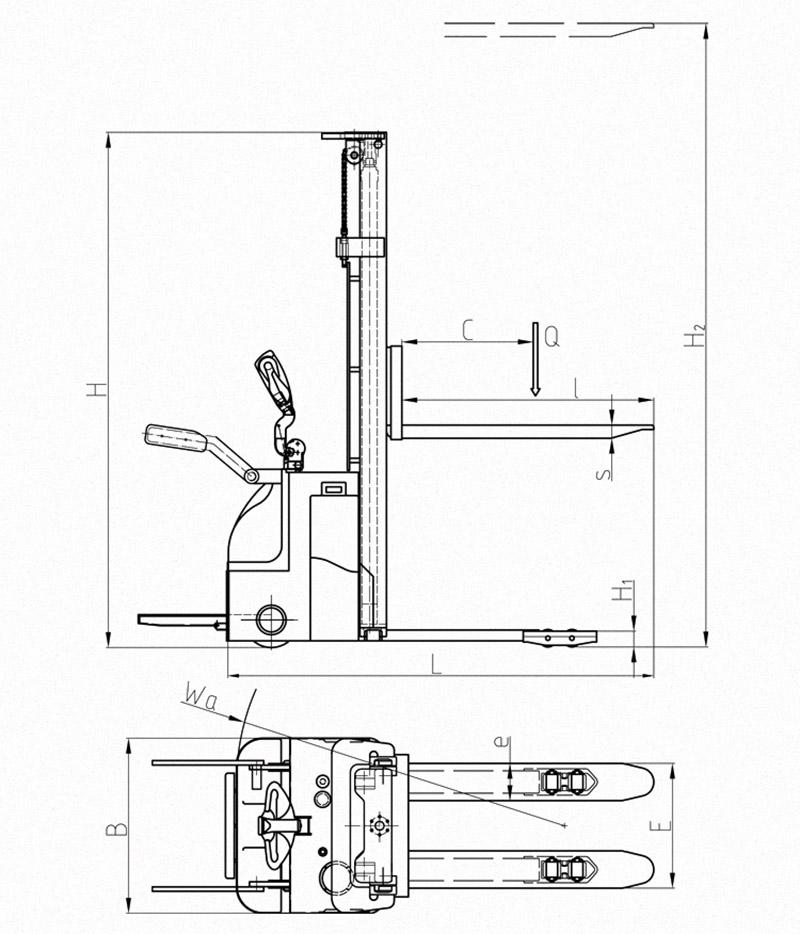

Model |
|
CDDYG-Ⅰ 1530 |
CDDYG-Ⅰ 1535 |
|
Capacity |
Q(Kg) |
1500 |
1500 |
|
Load center |
C(mm) |
500 |
500 |
|
Type of lifting |
|
Electric |
Electric |
|
Operating type |
|
Walkie/Stand |
Walkie/Stand |
|
Material |
|
PU |
PU |
|
Wheel base |
Y(mm) |
1320 |
1320 |
|
Quantity Driving/Balance/Bearing |
mm |
1×+2/4 |
1×+2/4 |
|
Bearing wheel size |
mm |
Φ80×70 |
Φ80×70 |
|
Driving wheel size |
mm |
Φ230×75 |
Φ230×75 |
|
Balance wheel size |
mm |
Φ125×60 |
Φ125×60 |
|
Min.fork height |
H13(mm) |
90 |
90 |
|
Max.fork height |
mm |
3000 |
3500 |
|
Max.lifting height |
mm |
2980 |
3480 |
|
Fork outside width |
B2(mm) |
685 |
685 |
|
Fork inside width |
L1mm |
365 |
365 |
|
Fork length |
L(mm) |
1150 |
1150 |
|
Single fork size |
E/S(mm) |
160/60 |
160/60 |
|
Overall length |
L1(mm) |
1930 |
1930 |
|
Overall width |
B1(mm) |
840 |
840 |
|
Overall height |
H1(mm) |
2140 |
2390 |
|
Handle vertical height (Min/Max) |
H14(mm) |
885/1350 |
885/1350 |
|
Min.turning radius |
Wa(mm) |
1545 |
1545 |
|
Travel speed(laden/unladen) |
km/h |
4/6 |
4/6 |
|
Lifting speed(laden/unladen) |
mm/s |
110/170 |
110/170 |
|
Lowering speed(laden/unladen) |
mm/s |
＜600 |
＜600 |
|
Fast/slow adjustment function |
|
Yes |
Yes |
|
Gradeability(laden/unladen) |
% |
4/6 |
4/6 |
|
Driving mode |
|
AC |
AC |
|
Drive motor |
Kw |
24V1.2 |
24V1.2 |
|
Lift motor |
Kw |
24V2.2 |
24V2.2 |
|
Battery capacity |
V/Ah |
24/170 |
24/170 |
|
Charger |
|
24V30A |
24V30A |
|
Battery weight |
Kg |
155 |
155 |
|
Net weight |
Kg |
810 |
830 |
