QUICK OVERVIEW

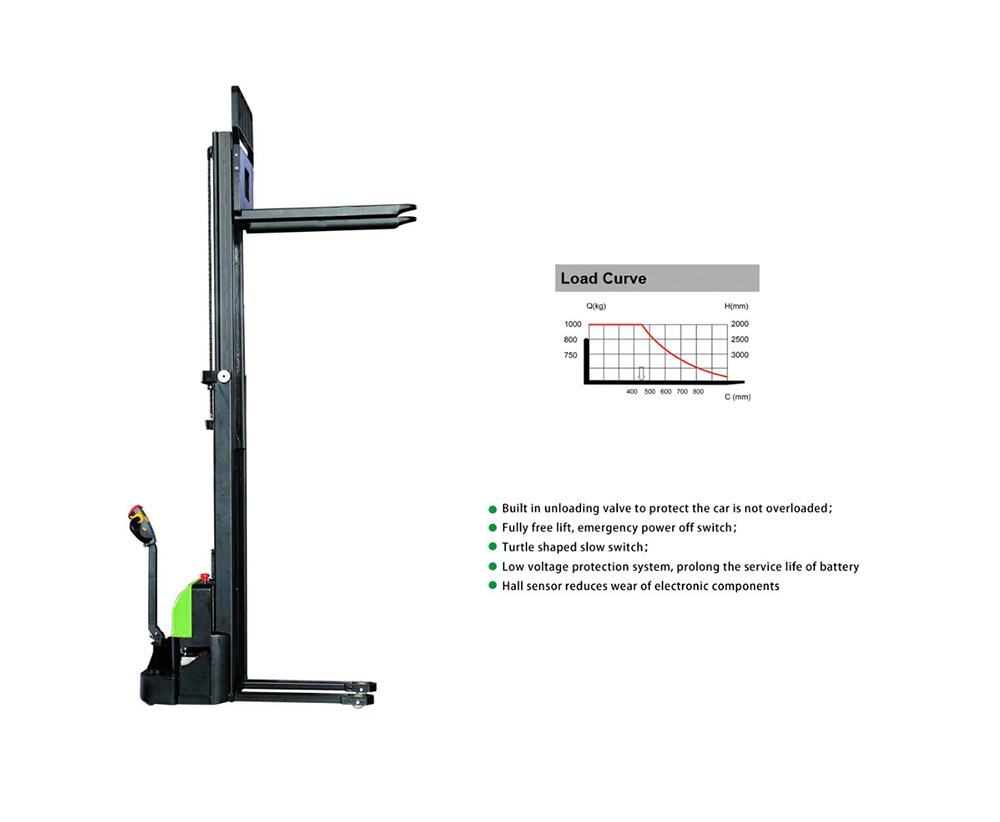

1.Built in unloading valve to protect the car is not overloaded;2. Fully free lift,emergency power off switch; 3.Turtle shaped slow switch; 4.Low voltage protection system,prolong the service life of battery; 5. Hall sensor reduces wear of electronic components.
Contact us

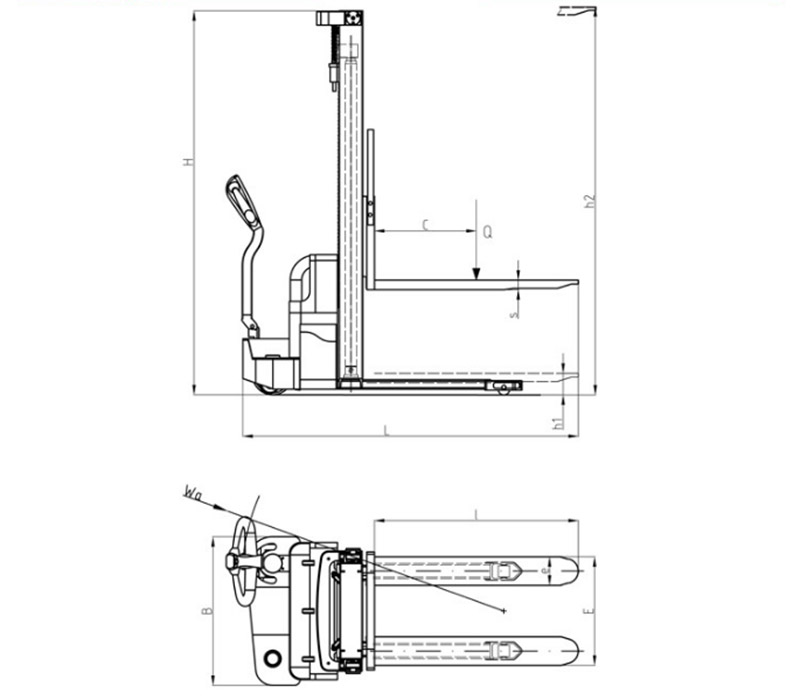

SPECIFICATION:
|
Model |
|
CDDYG-K 1025 |
CDDYG-K 1030 |
|
Capacity |
Q(Kg) |
1000 |
1000 |
|
Load center |
C(mm) |
450 |
450 |
|
Type of lifting |
|
Electric |
Electric |
|
Operating type |
|
Walkie |
Walkie |
|
Material |
|
PU |
PU |
|
Wheel base |
mm |
1260 |
1260 |
|
Quantity Driving/Balance/Bearing |
|
1X+1/2 |
1X+1/2 |
|
Bearing wheel size |
mm |
Φ80X60 |
Φ80X60 |
|
Driving wheel size |
mm |
Φ210X70 |
Φ210X70 |
|
Balance wheel size |
mm |
Φ100X50 |
Φ100X50 |
|
Min.fork height |
h1(mm) |
90 |
90 |
|
Max.fork height |
h2(mm) |
2500 |
3000 |
|
Max.lifting height |
mm |
2415 |
2915 |
|
Fork outside width |
E(mm) |
570/685 |
570/685 |
|
Fork inside width |
mm |
270/385 |
270/385 |
|
Fork length |
l(mm) |
1070 |
1070 |
|
Single fork size |
e/s(mm) |
150/60 |
150/60 |
|
Overall length |
L(mm) |
1750 |
1750 |
|
Overall width |
B(mm) |
780 |
780 |
|
Overall height |
H(mm) |
1790 |
2040 |
|
Handle vertical height (Min/Max) |
mm |
860/1150 |
860/1150 |
|
Min.turning radius |
Wa(mm) |
1420 |
1420 |
|
Travel speed(laden/unladen) |
km/h |
3.5/4 |
3.5/4 |
|
Lifting speed(laden/unladen) |
mm/s |
100-110/160-170 |
100-110/160-170 |
|
Lowering speed(laden/unladen) |
mm/s |
185-195/160-170 |
185-195/160-170 |
|
Fast/slow adjustment function |
|
Yes |
Yes |
|
Gradeability(laden/unladen) |
% |
4/6 |
4/6 |
|
Driving mode |
|
DC |
DC |
|
Drive motor |
Kw |
0.65 |
0.65 |
|
Lift motor |
Kw |
2.2 |
2.2 |
|
Battery capacity |
V/Ah |
2x12V/100 |
2x12V/100 |
|
Charger |
|
24V12A |
24V12A |
|
Battery weight |
Kg |
56 |
56 |
|
Net weight |
Kg |
480 |
480 |
