CPD15S
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW

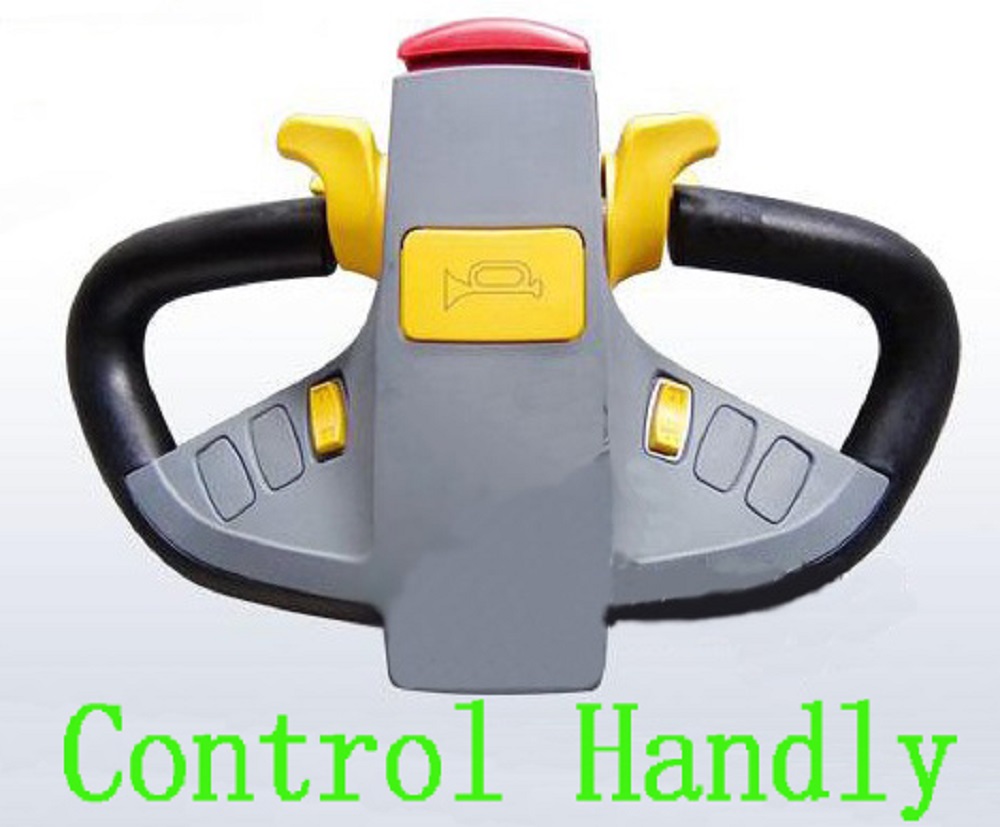

1.AC motor,no need to replace the carbon; 2.Brush with good ramp starting performance; 3.AC vertical drive wheel,the speed ratio is large,compact size structure; 4.Emergency power off switch,hand in hand; 5.With emergency reverse switch,USA CURTIS driving controller,Spring adjusting structure,good stability.
Contact us
Order No.:
Stock:
Delivery Time:
Without Tax: $
Machine video:
QUICK OVERVIEW
1.AC motor,no need to replace the carbon; 2.Brush with good ramp starting performance; 3.AC vertical drive wheel,the speed ratio is large,compact size structure; 4.Emergency power off switch,hand in hand; 5.With emergency reverse switch,USA CURTIS driving controller,Spring adjusting structure,good stability.
Contact us

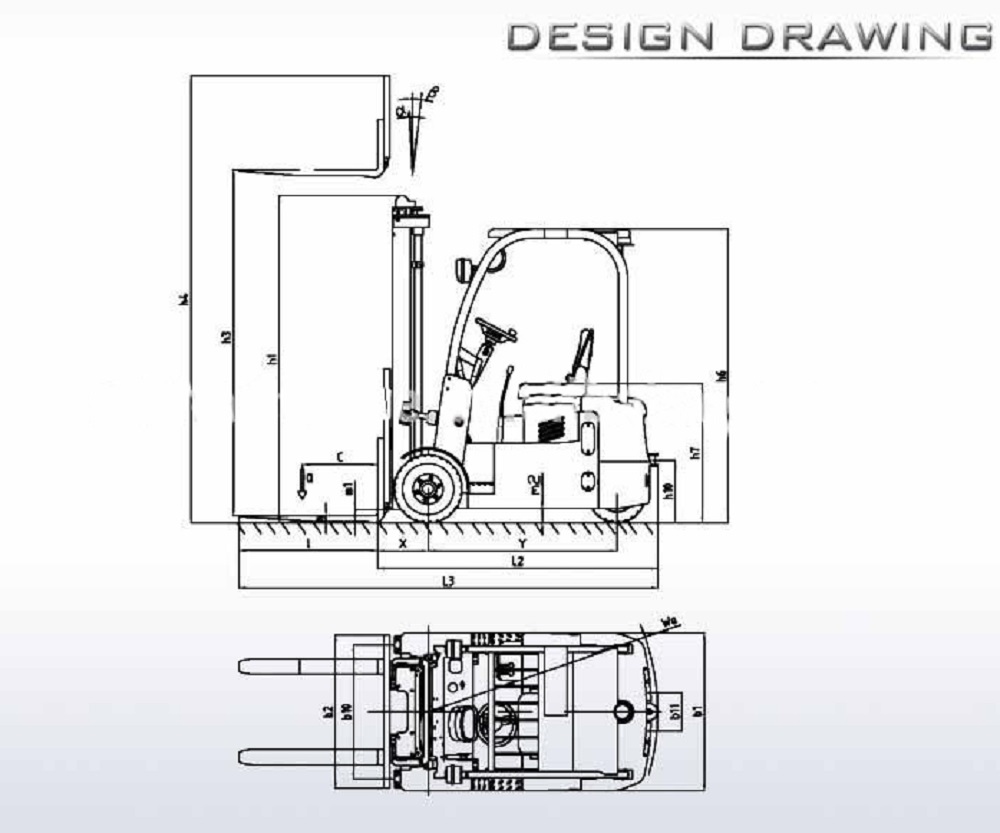

SPECIFICATION:
| Model | unit | CPD15S |
| Capacity | Q(Kg) | 1500 |
| Load center | C(mm) | 500 |
| Operating type | Seat | |
| Material | Solid tire | |
| Quantity Front/back | 2-2 | |
| Front tyre size | mm | 18×5-8 |
| Rear tyre size | mm | 15×4.5-8 |
| Front overhang | X(mm) | 390 |
| Wheel track | Y(mm) | 1250 |
| Front track | b10(mm) | 915 |
| Rear track | b11(mm) | 212 |
| Angle of inclination(Forward/Lean back) | α°/β° | 3°/6.5° |
| Min.fork height | h1(mm) | 2150 |
| Max.fork height | h3(mm) | 3000 |
| Fork ground clearance | mm | 90 |
| Outside width between forks | mm | 400-685 |
| Inside width between forks | mm | 200-485 |
| Single fork size | l/e/s(mm) | 920×100×40 |
| Top shelf height | h6(mm) | 2000 |
| Seat height | h7(mm) | 920 |
| Traction hook height | h10(mm) | 425 |
| Overall size | l1×b1×h1(mm) | 2820×1050×2000 |
| Lifting height of the whole | h4(mm) | 3970 |
| Fork vertical length | l2(mm) | 1850 |
| Frame ground clearance | m2(mm) | 95 |
| Min.turning radius | Wa(mm) | 1550 |
| Front and rear axle load(laden/unladen) | Kg | 3780/650,1340/1570 |
| Travel speed(laden/unladen) | km/h | 10-20 |
| Lifting speed(laden/unladen) | mm/s | 120-130/150-160 |
| Lowering speed(laden/unladen) | mm/s | 300/183 |
| Gradeability(laden/unladen) | % | 8-10 |
| Driving mode | AC | |
| Steering motor | Kw | 0.75 |
| Driving motor | Kw | 6 |
| Lifting motor | Kw | 3 |
| Battery capacity | V/Ah | 48/360 |
| Charger | 48V50A | |
| Battery weight | Kg | 610 |
| Net weight | Kg | 2800 |
