HAND PALLET TRUCK

Home > Products > TRANSPORT > TRANSPORT > HAND PALLET TRUCK
SYP-II 25

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW

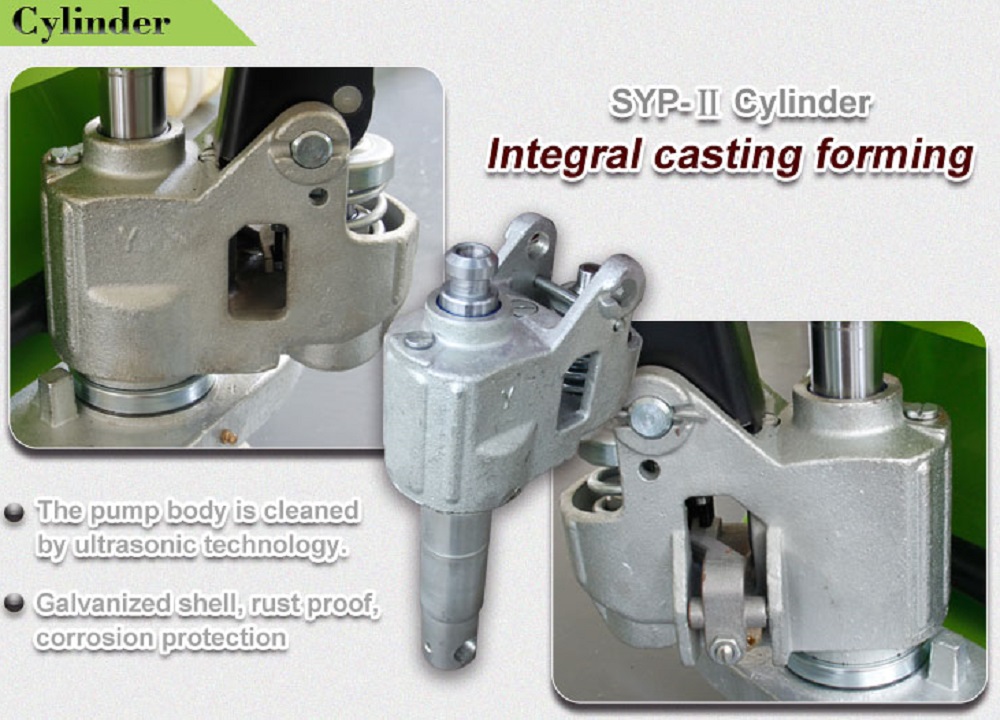

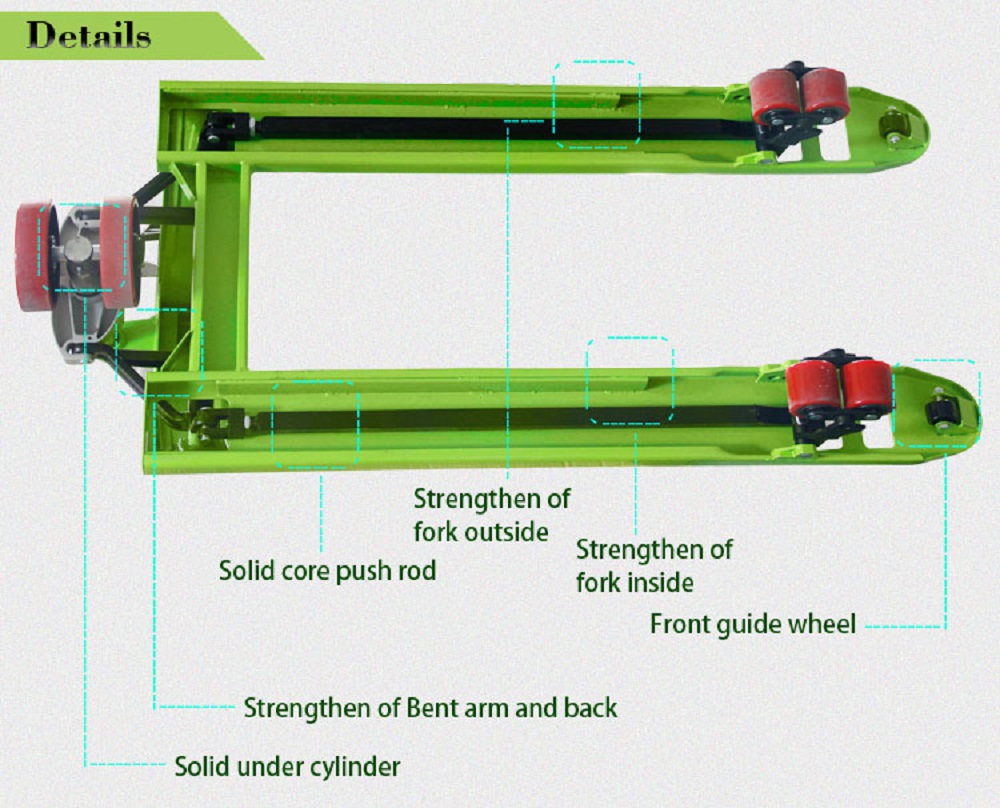

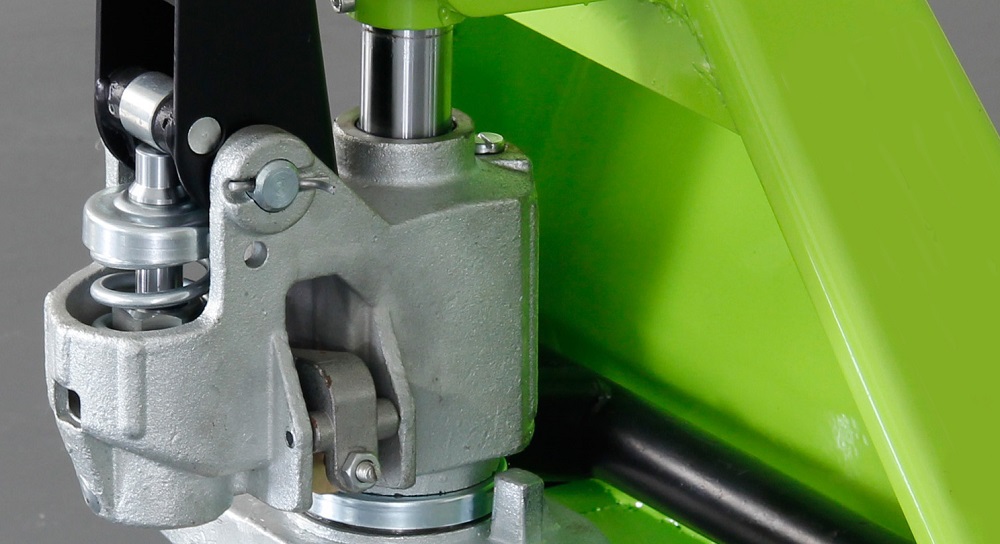

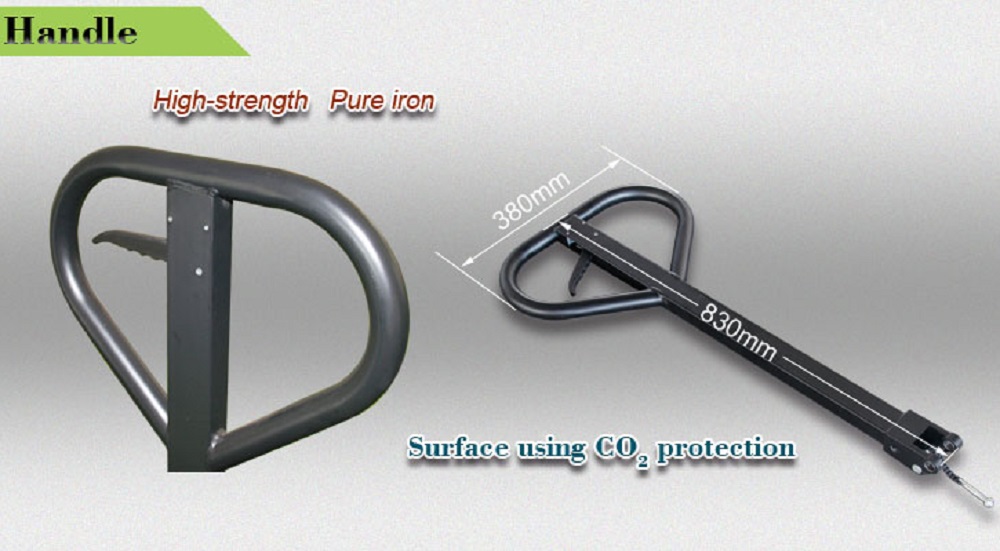

1.Long life welding cylinder,sealing design; 2.Three section type handle: Rise, Fall, Middle position; 3.The pallet truck design is compact,the operation is simple and convenient; 4.High strength and high quality steel plate,stable,full loading without impact force.

Contact us
SPECIFICATION:

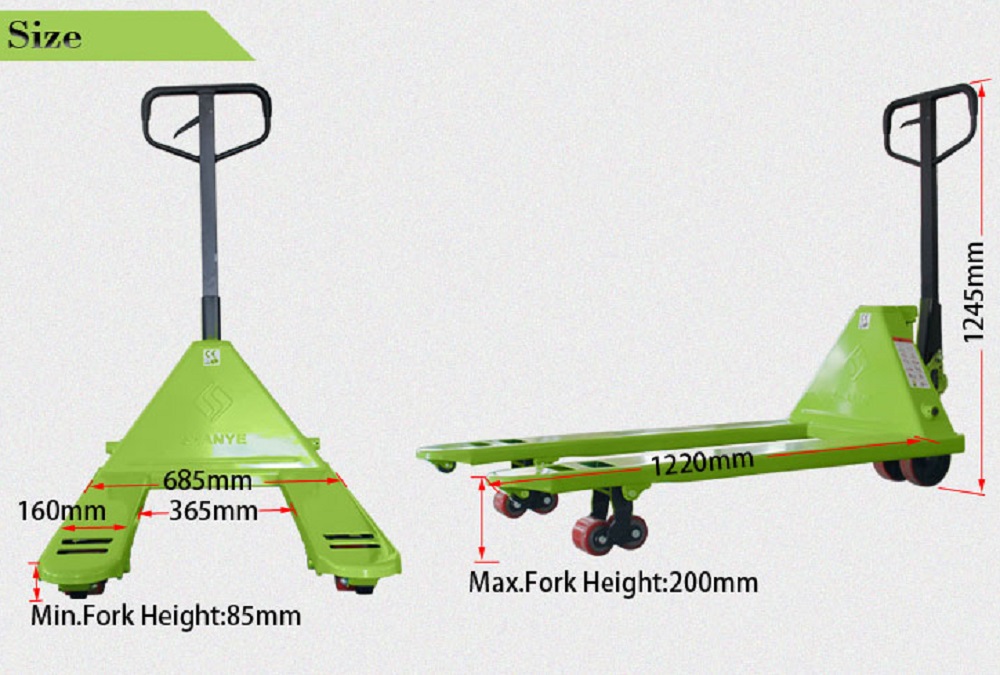

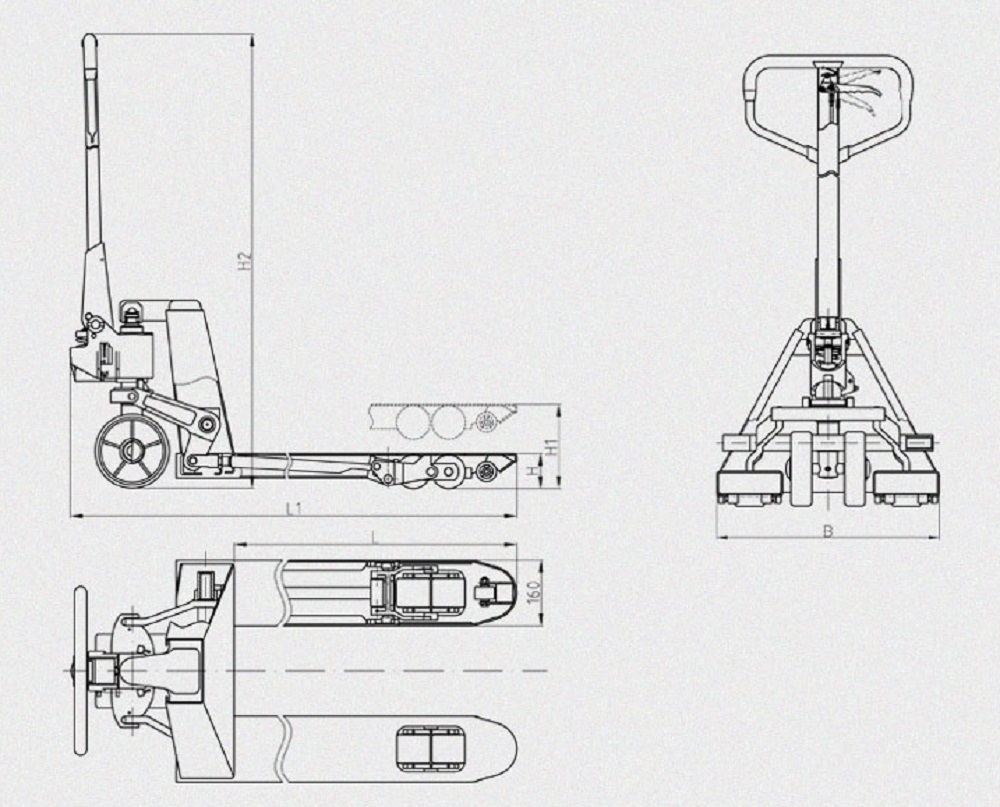

Model Unit SYP-II 20 SYP-II 20A SYP-II 25 SYP-II 30
Capacity Kg 2000 2000 2500 3000
Min.fork height H(mm) 52/65 75/85 75/85 75/85
Max.fork height H1(mm) 140/160 190/200 190/200 190/200
Max.lifting height mm 88/95 ≥110 ≥110 ≥110
Fork outside width B(mm) 520/540/685 520/540/685 520/540/685 520/540/685
Fork inside width mm 200/220/365 200/220/365 200/220/365 200/220/365
Fork length L(mm) 915/1100/1150/1220 915/1100/1150/1220 915/1100/1150/1220 915/1100/1150/1220
Single fork width e(mm) 160 160 160 160
Fork height s(mm) 37 50 50 50
Overall length L1(mm) 1194-1614 1194-1614 1194-1614 1194-1614
Overall width mm 520/540/685 520/540/685 520/540/685 520/540/685
Overall height H2(mm) 1225 1245 1245 1245
Cylinder lift rod diameter mm Φ35 Φ35 Φ35 Φ35
Single loading wheel size mm Φ50×93/Φ60×93 Φ74×93/Φ80×93 Φ74×93/Φ80×93 Φ74×93/Φ80×93
Tandem loading wheel size mm Φ50×70/Φ64×70 Φ74×70/Φ80×70 Φ74×70/Φ80×70 Φ74×70/Φ80×70
Steering wheel size mm Φ160×50/Φ180×50 Φ180×50 Φ180×50 Φ180×50
Min.turning radius mm 1120/1300/1350/1450 1120/1300/1350/1450 1120/1300/1350/1450 1120/1300/1350/1450

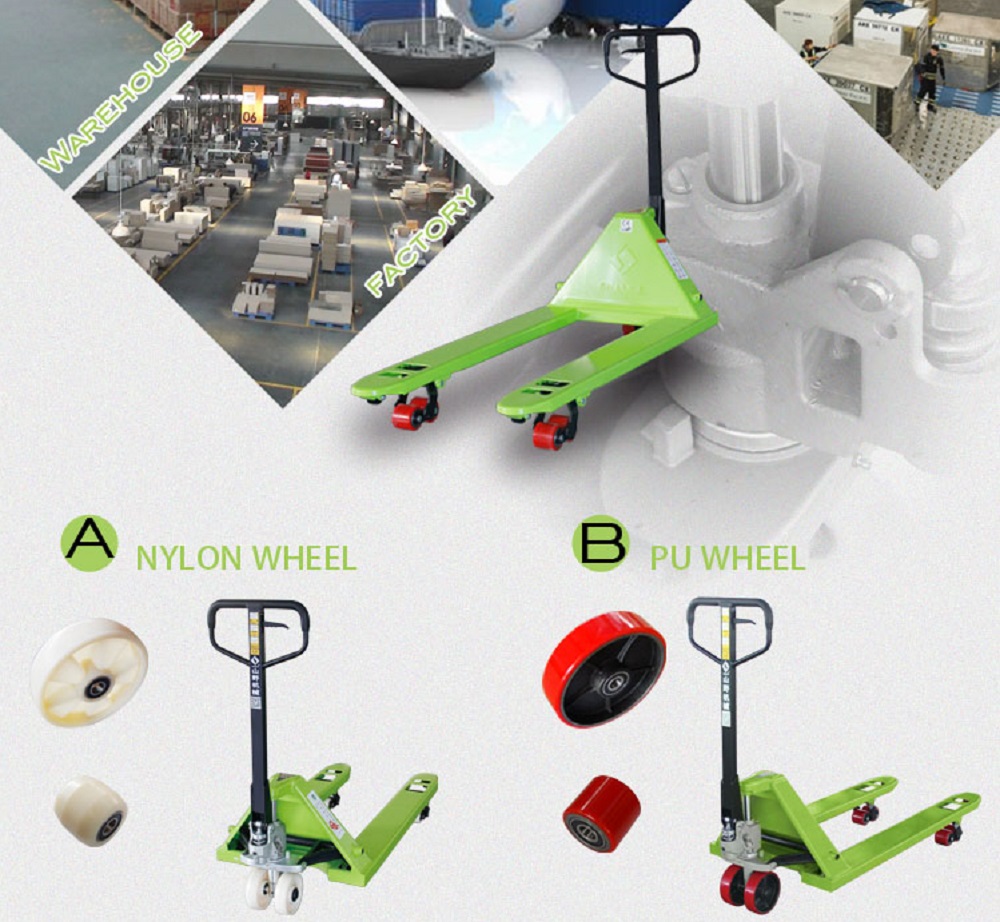

Material of wheel PU/Nylon/Rubber PU/Nylon/Rubber PU/Nylon/Rubber PU/Nylon/Rubber
Net weight  Kg 62-74 63-75 68-81 72-85
