HAND PALLET TRUCK

Home > Products > TRANSPORT > TRANSPORT > HAND PALLET TRUCK
SYP-I 30

Order No.:
Stock:
Delivery Time:

Without Tax: $
Machine video:

QUICK OVERVIEW

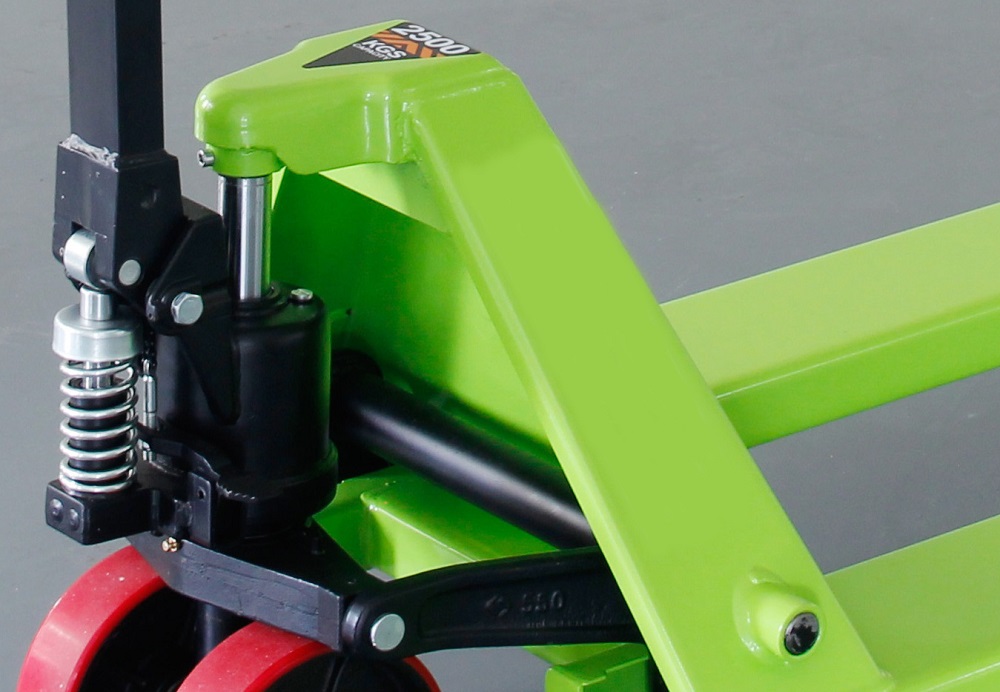

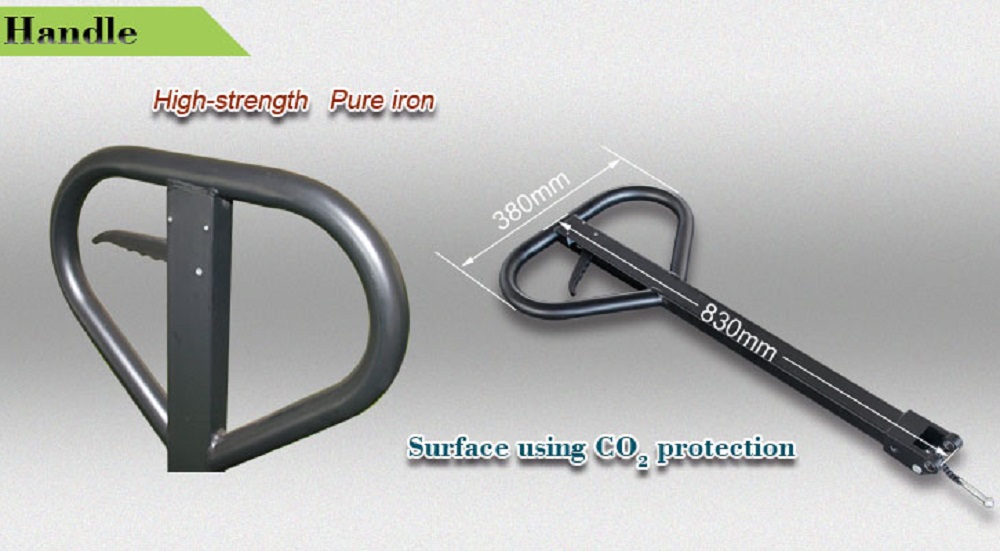

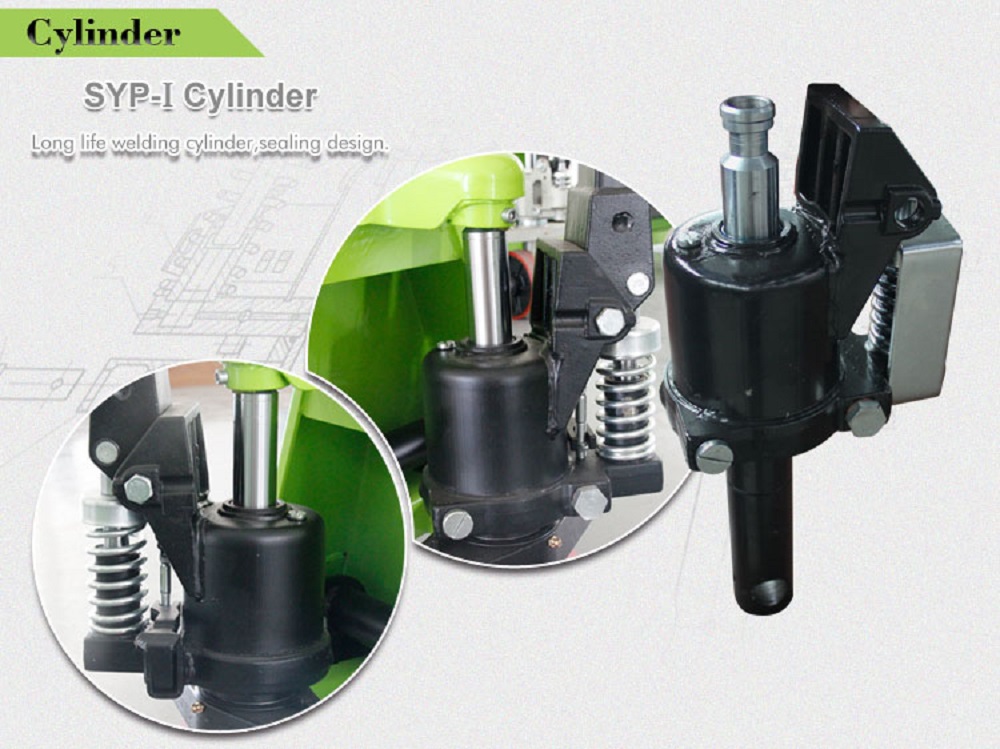

1.Long life welding cylinder,sealing design; 2.Three section type handle: Rise, Fall, Middle position; 3.The pallet truck design is compact,the operation is simple and convenient; 4.High strength and high quality steel plate,stable,full loading without impact force.

Contact us
SPECIFICATION:
Model unit SYP-I 20 SYP-I 25 SYP-I 30
Capacity Kg 2000 2500 3000
Min.fork height H(mm) 85 85 85
Max.fork height H1(mm) 200 200 200
Max.lifting height mm ≥110 ≥110 ≥110
Fork outside width B(mm) 520/550/685 520/550/685 520/550/685
Fork inside width mm 220/250/385 220/250/385 220/250/385
Fork length L(mm) 915/1100/1150/1220 915/1100/1150/1220 915/1100/1150/1220
Single fork width e(mm) 150 150 150
Fork thickness s(mm) 50 50 50
Overall length L1(mm) 1160-1580 1160-1580 1160-1580
Overall width mm 520/550/685 520/550/685 520/550/685
Overall height H2(mm) 1170 1170 1170
Cylinder lift rod diameter mm Φ30 Φ30 Φ30
Single loading wheel size mm Φ80×84 Φ80×84 Φ80×84
Tandem loading wheel size mm Φ80×60 Φ80×60 Φ80×60
Steering wheel size mm Φ180×50 Φ180×50 Φ180×50
Min.turning radius mm 1110/1300/1350/1450 1110/1300/1350/1450 1110/1300/1350/1450
Material of wheel PU/Nylon/Rubber PU/Nylon/Rubber PU/Nylon/Rubber
Net weight  Kg 56-63 66-76 70-80

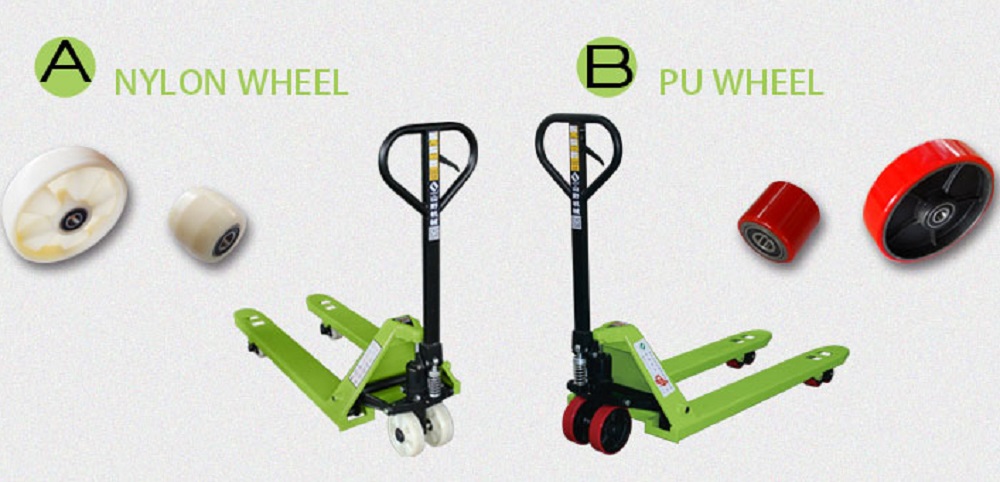

Optional:
Nylon,PU,Rubber,Single Loading Wheel,Tandem Loading Wheel.
suggestion:
Nylon casters with high hardness, go up the sound, but need some smaller thrust;
Polyurethane with low hardness, go up small noise, pushing heavy items of labor.
