QUICK OVERVIEW

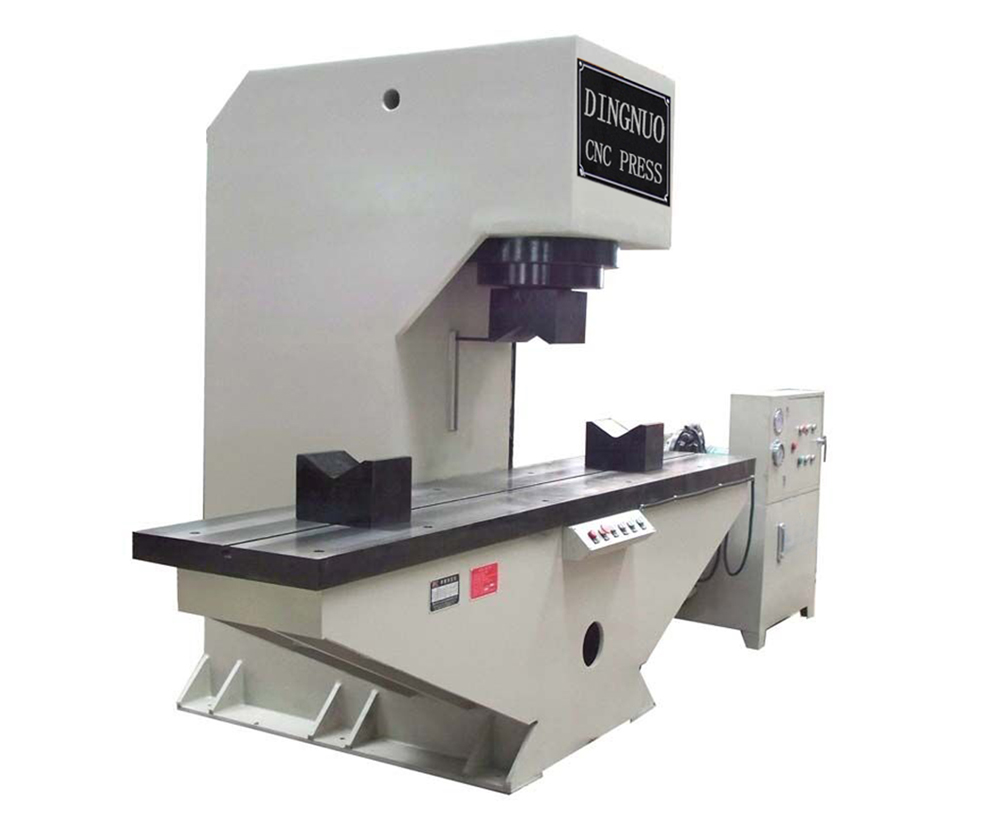

1. This series of hydraulic press can be used as shafts and other similar parts of the calibration process. Also can be used for shaft and leeve parts of the press-fit and a simple plate of the original drawing, froming and blanking industries. 2. The series of hydraulic linkage with hands and feet to manipulate, easy operation. 3. Hydraulic system uses and integrated cartridge valve, compact structure, flexible and reliable action. Power system using double-pump speed, with low power consumption and low nose
Contact us
SPECIFICATION:
FEATURE:
Model
YQ41-10
YQ41-20
YQ41-40
YQ41-60
YQ41-100
Nominal pressure(KN)
100
200
400
600
1000
System pressure(Mpa)
13
18
25
30
31.5
Pressue head travel(mm)
200
240
260
260
300
Throt depth(mm)
180
200
220
240
280
Opening height(mm)
480
500
500
700
800
Speed of slide
Idle stroke
20
20
18
15
15
(mm/s)
Work
7-20
7-20
6-18
5-15
5-15
Return
35
35
30
25
25
Table size
Left right
400
500
500
600
700
(mm)
Front back
400
400
450
450
500
Blanking aperture(mm)
80
100
130
160
200
Motor power(kW)
2.2
2.2
3
5.5
5.5
1. This series of hydraulic press can be used as shafts and other similar parts of the calibration process. Also can be used for shaft and leeve parts of the press-fit and a simple plate of the original drawing, froming and blanking industries.
2. The series of hydraulic linkage with hands and feet to manipulate, easy operation.
3. Hydraulic system uses and integrated cartridge valve, compact structure, flexible and reliable action. Power system using double-pump speed, with low power consumption and low nose
