HORIZONTAL BAND SAW

Home > Products > METAL > BAND SAW > HORIZONTAL BAND SAW
BS 370

Order No.:
Stock: 20
Delivery Time: 30

Without Tax: $
Machine video:

QUICK OVERVIEW

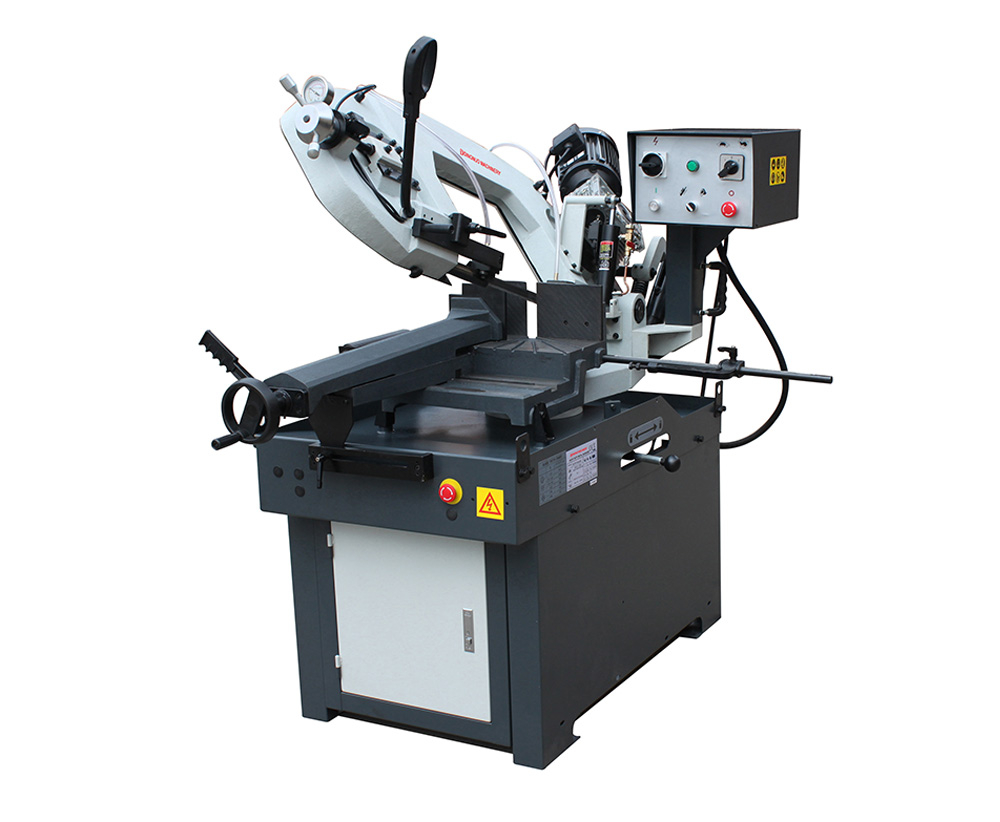

The compact double mitre bandsaw BS370 featuring a tilting saw arm, keeping spare requirements to a minimum as there is no need to change the position of the material when mitre cutting. Further features include a device to change to manual mode, the adjustable vice with quick adjustment and an automatic blade break control.

Contact us

MODEL  BS370
MOTOR 400V3 ~50HZ,1500(1100)W4 (8)POLE
REDUCE GEAR RATE 25:1
WHEEL DIAMETER 380MM
BLADE SIZE 3160X27X0.9MM
BLADE SPEED 34OR68M/MIN
CUTTING ANGLE 45°L,30°L1L,0°
15°R,30°R,45°R,,60°R
COOLANT PUMP 400V,3~,25W
PACKING SIZE(MM) 1770X765X1120MM3  18PCS/20,
G.W./N.W(KG) 365 /415KG
