BS 320 SA
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video:
QUICK OVERVIEW

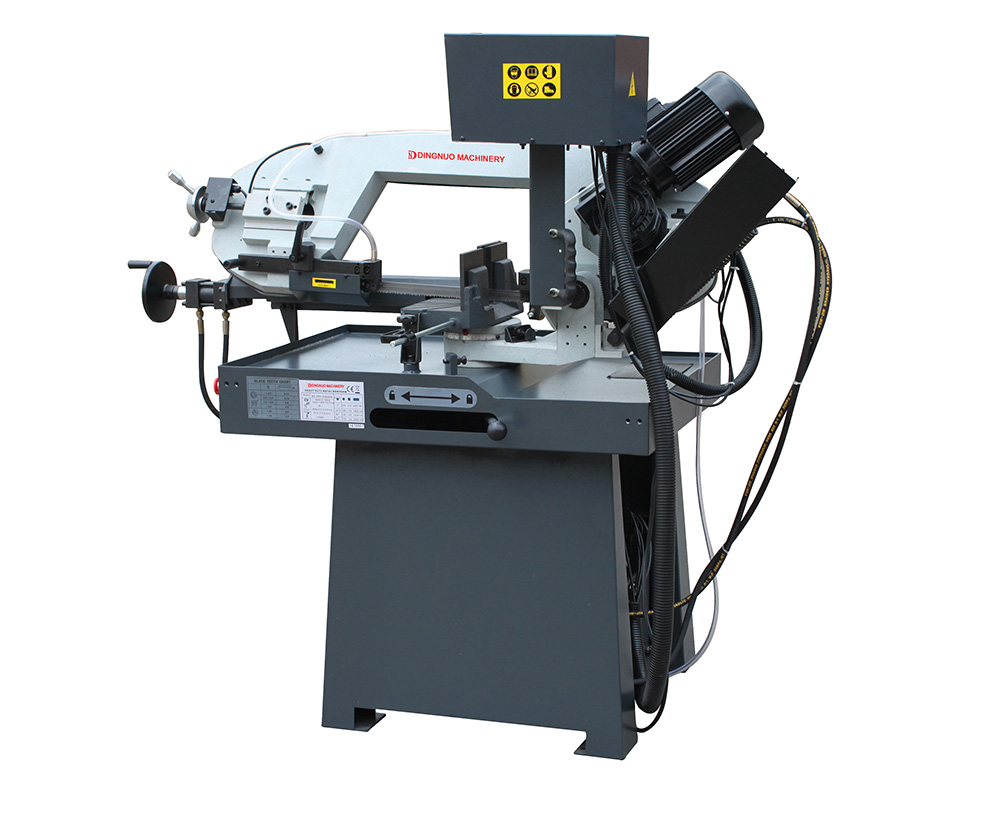

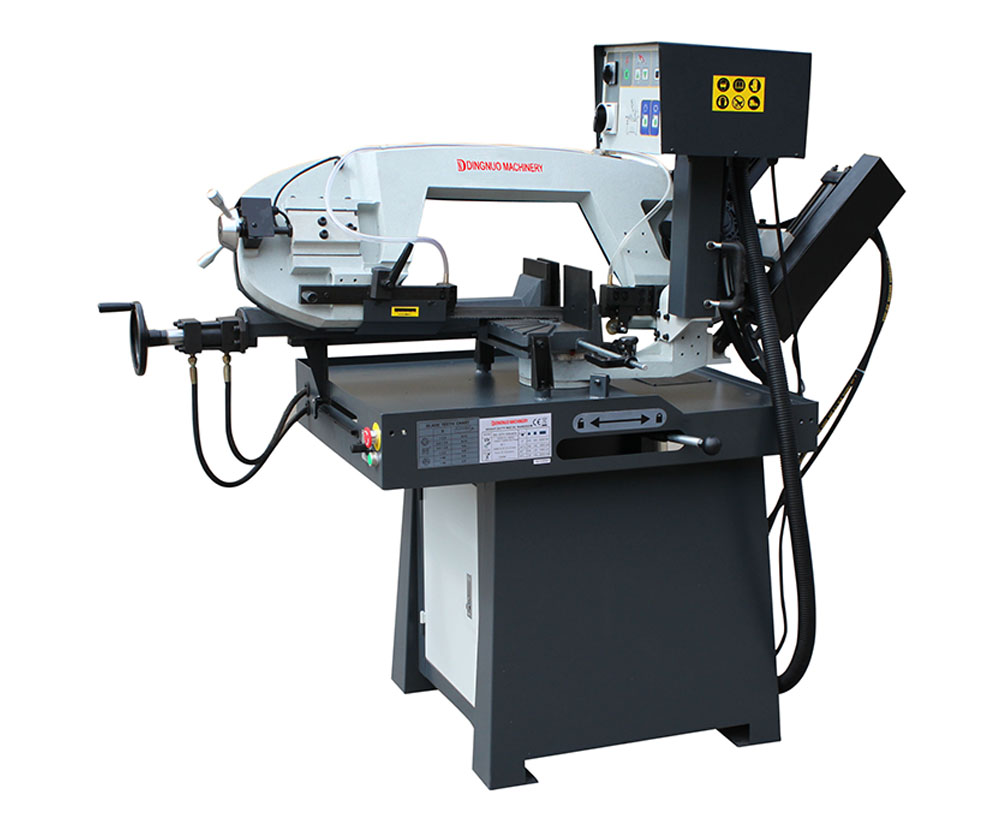

The compact double mitre bandsaw BS 320 SA featuring a tilting saw arm, keeping spare requirements to a minimum as there is no need to change the position of the material when mitre cutting. Further features include a device to change to manual mode, the adjustable vice with quick adjustment and an automatic blade break control.
Contact us
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video:
QUICK OVERVIEW
The compact double mitre bandsaw BS 320 SA featuring a tilting saw arm, keeping spare requirements to a minimum as there is no need to change the position of the material when mitre cutting. Further features include a device to change to manual mode, the adjustable vice with quick adjustment and an automatic blade break control.
Contact us
| Model | BS 320 sa |
| Motor | 230V~，50Hz，1500w 4poles400V，3 ~，50Hz，1500（1100）W，2 (4)poles |
| Reduce gear rate | 18:1（1 ~ motor）；36：1（3 ~ motor） |
| Wheel diameter | 300mm |
| Blade size | 2680x27x0.9mm |
| Blade speed | 70m/min（1 ~ motor）；35or70m/min（3 ~ motor） |
| Cutting angle | 45°L，30°L，15°L，0° |
| 15°R，30°R，45°R，,60°R | |
| Coolant pump | 400V，3~，75W |
| Packing size(mm) | 1170x770x1635mm3 9pcs/20， 19pcs/40， |
| G.w./N.w(kg) | 320 /384kg |
