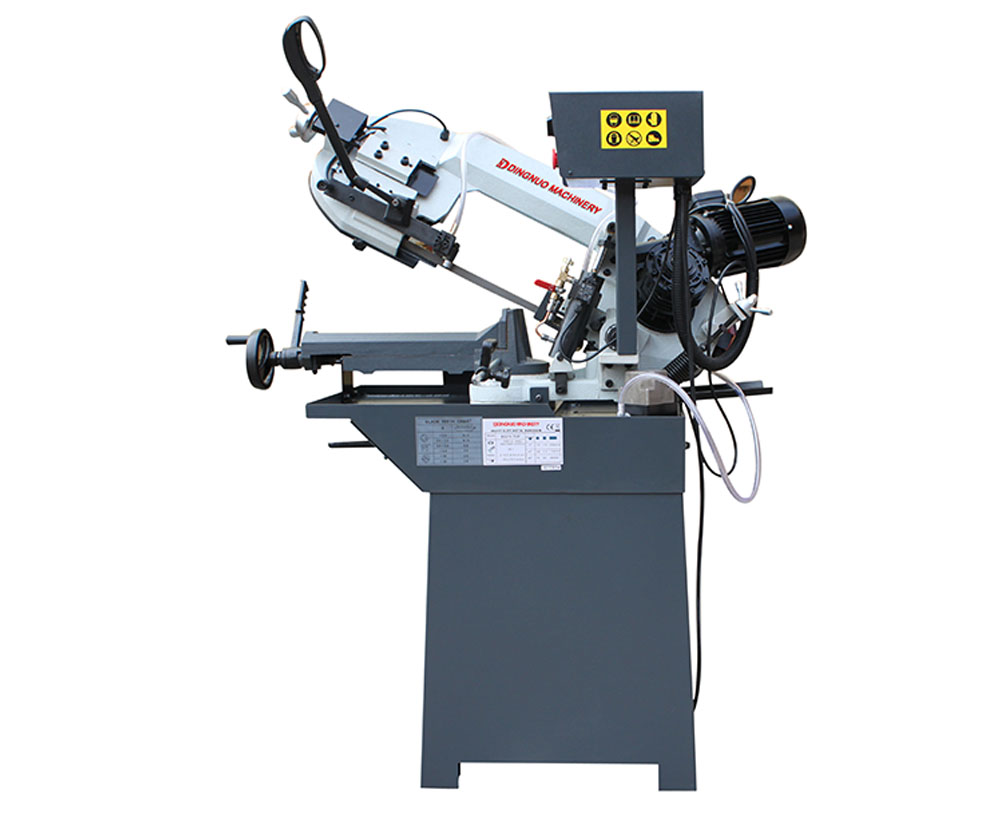

BS 210 TOP
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video:
QUICK OVERVIEW
1. The European design band saw features European design, dovetail-type clamp movement and locking mechanism. 2. The European design band saw features double-speed selection. 3. The saw bow can be rotated from 0° to 45°. It has the characteristics of worm gear box transmission structure. 4. The calibration of the jaw is convenient for adjustment and positioning at any angle. 5. The falling speed of saw bow is controlled by hydraulic cylinder. 6. The European design band saw has a sizing device (the machine will automatically stop after sawing the materials). 7. The European design band saw h a power break protection device as(the machine will automatically power off when the rear protective cover is opened). 8. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece. 9. It is equipped with a block feeder (with fixed sawing length).
Contact us
Order No.:
Stock: 20
Delivery Time: 30
Without Tax: $
Machine video:
QUICK OVERVIEW
1. The European design band saw features European design, dovetail-type clamp movement and locking mechanism. 2. The European design band saw features double-speed selection. 3. The saw bow can be rotated from 0° to 45°. It has the characteristics of worm gear box transmission structure. 4. The calibration of the jaw is convenient for adjustment and positioning at any angle. 5. The falling speed of saw bow is controlled by hydraulic cylinder. 6. The European design band saw has a sizing device (the machine will automatically stop after sawing the materials). 7. The European design band saw h a power break protection device as(the machine will automatically power off when the rear protective cover is opened). 8. The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece. 9. It is equipped with a block feeder (with fixed sawing length).
Contact us
|
|
|
|
|
Model |
|
BS 210 TOP |
|
Capacity |
Circular @90° |
220mm(8.6”) |
|
Rectangular @90° |
250*155mm(10”*6.1”) |
|
|
Circular @60° |
100mm(4'') |
|
|
Rectangular @60° |
80x95mm(3.1''x3.7'') |
|
|
Circular @45° |
160mm(6”) |
|
|
Rectangular @45° |
160*110mm(6.3”*4.3”) |
|
|
Blade speed |
@50Hz |
40/80MPM |
|
Blade size |
27*0.9*2450mm |
|
|
Motor power |
0.75/1.1kw /1.5HP(3PH) |
|
|
Drive |
Gear |
|
|
Packing size |
133*80*105cm(body) 67*40*62cm(stand) |
|
|
N.W./G.W. |
180/210kg |
|
