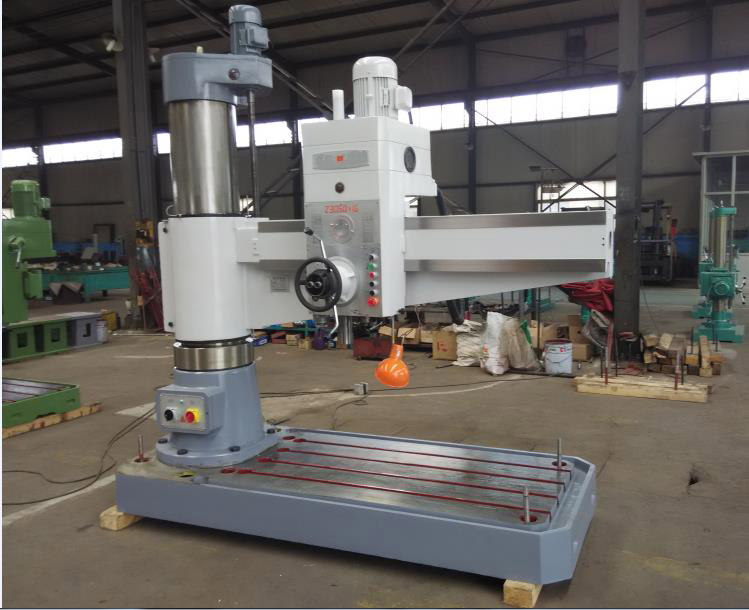

Our top range of radial drilling machine feature stepless speed adjustment, solid construction and high user friendliness. The column is mounted to improve the position of the radial arm and therefore maximize work comfort – significant for longer operati
Contact us
TECHNICAL SPECIFICATIONS
|
Drilling capacity max. |
70 mm |
|
Thread cutting max. |
M56 |
|
Distance spindle to column min./max. |
430 - 2010 mm |
|
Vertical movement of the support |
1230 mm |
|
Travel of drill head (horizontally) |
1580 mm |
|
Spindle stroke |
350 mm |
| Morse taper |
MT 5 |
|
Spindle speed |
30 - 190, 205 - 1400 rpm |
|
Feed range |
(8) 0,06 - 1,35 mm/rev. |
|
Distance spindle to box table |
60 - 1300 mm |
|
Distance spindle to base |
570 - 1800 mm |
|
Clamping area base |
1935 x 1200 mm |
|
Box table (L x W x H) |
850 x 580 x 500 mm |
|
Motor power |
5,5 kW |
|
Machine dimension (W x D x H) |
3050 x 1200 x 3610 mm |
|
Weight approx |
6000 kg |
FEATURES
- Complete with stepless speed, set speed is visible on digital display
- Spindle features high concentricity and automatic spindle brake
- Radial arm, drill head and column each with hydraulic clamp
- Large base plate, ideal for processing of oversize workpieces
- Torsion-free, polished column increases sliding capacity of radial arm
- Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
- Control switch allows for individual clamping or unclamping of drill head and/or column
- Guiderails on radial arm are hardened and polished
- Counter weight on spindle to ensure optimal balance
- Ideal for drilling, countersinking, reaming and tapping
Standard accessories:
- Box table
- Drill chuck arbor MT 5 / B 16
- Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
- LED machine light
- Initial filling with Shell Tellus 46
- Coolant device
- Frequency inverter
- Digital readout of speeds
- Lifting motor
- Hydraulic motor
- Height adjustable protective cover
- Tools
Optional accessories:
- Keyless drill chuck with direct mount MT 5, 1 – 25 mm
- Keyless drill chuck with direct mount MT 5, 3 – 16 mm
- Quick change set MT 5 - MT 3 / MT 2 / MT 1 - B 16
- Tiltable horizontal table 400 x 600 mm
- Free machine vice 120
- 2 pcs. milling vise 200
- Drilling machine vise 200
