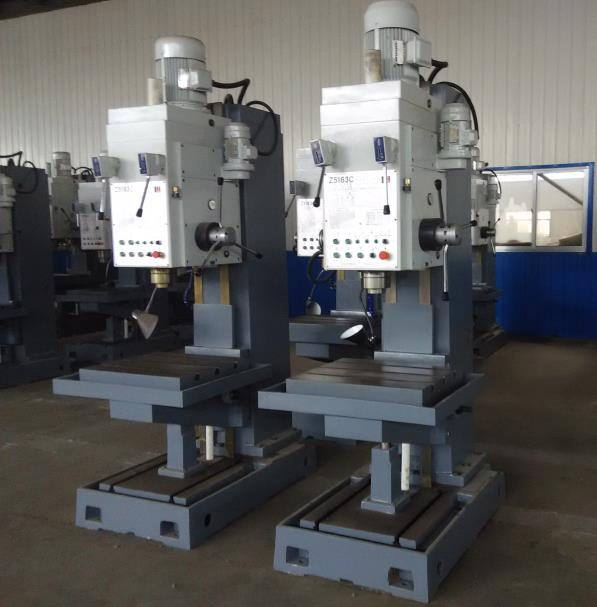

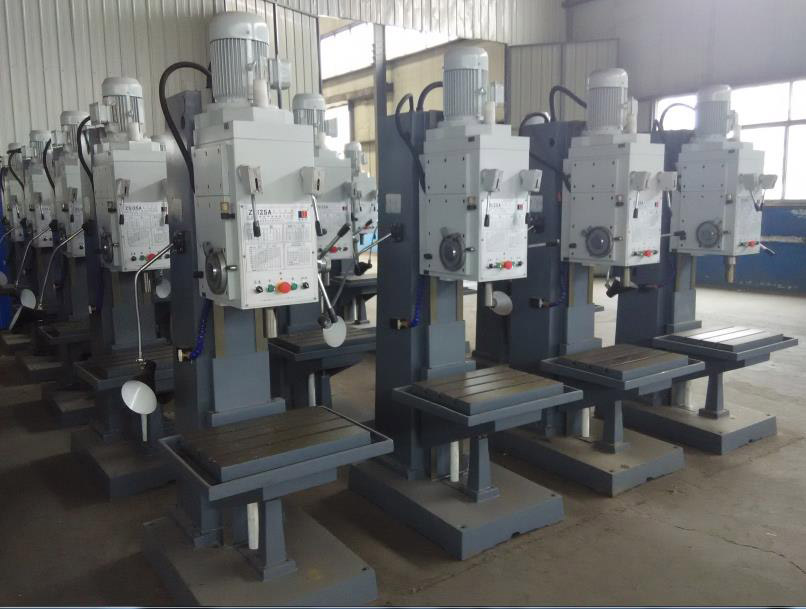

BOX COLUMN DRILL PRESS

Home > Products > METAL > DRILLING MACHINE > BOX COLUMN DRILL PRESS
Z5163

Order No.:
Stock: 2
Delivery Time: 30

Without Tax: $
Machine video: 9000-9900

QUICK OVERVIEW

The Z5163 is suitable for drilling, reaming and tapping of single parts or small series. The solid, grey cast iron construction makes this machine suitable for heavy machining in engineering, production and construction.

Contact us

SPECIFICATIONS

Drilling capacity in steel

63 mm

Thread cutting max.

M48

Torque

800 Nm

Travel of drill head

260 mm

Morse taper

MT 5

Spindle speed / steps

40 - 570 rpm, 9 steps

Feed range

(6) 0,1 - 0,78 mm/rev.

Feeding force

30000 N

Distance spindle to column

375 mm

Distance spindle to table max.

870 mm

Spindle stroke

250 mm

Table size / T-slot size

660 x 555 mm / 22 mm

Table lift

300 mm

Motor power

5,5 kW

Machine dimension (W x D x H)

900 x 1300 x 2850 mm

Weight approx.

2500 kg

FEATURES

  • Solid construction of column and base designed for excessive use
  • Powerful drive motor features high torque and large feed force
  • Solid grey cast iron construction maximizes table load capacity
  • Tapping device comes with automatic change of rotation at adjusted drill depth
  • Convenient control lever allows for quick and easy feed and speed adjustment
  • Polished gear wheel, in oil bath, ensure smooth operartion
  • Automatic spindle feed, tapping device and work lamp included in standard equipment
  • Includes feed motor for rapid and work feed and back stroke
  • Wide, heavy-duty dovetail guidings feature adjustable gibs

Standard accessories:

  • Coolant device
  • Thread cutting device
  • Left and right turning
  • LED working light
  • Morse taper drill sleeve
  • Tools
  • Height adjustable protective cover

Optional accessories:

  • Morse taper drill chuck arbor MT 5 - B 18
  • Keyless drill chuck with direct mount MT 5, 1 - 25 mm
  • Keyless drill chuck 1 - 16 mm / B 18
  • Keyless drill chuck with direct mount MT 5, 3 - 16 mm
  • Two-parts milling vise  160
  • Two-parts milling vise  200
  • Drilling machine vise 150
  • Drilling machine vise  200
  • Machine mount  80
  • Machine mount  120
